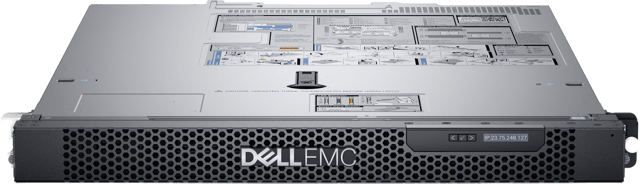

Dell PowerEdge XR2 Server

Tech Specs

• Base:
  PowerEdge XR2 Server
• Processor:
  Up to two 150W Intel® Xeon® Scalable processors
• Memory:
  DIMM Speed: Up to 2666MT/s DDR4 DIMMs
  Memory Type: RDIMMs/LRDIMMs
  Memory Module Slots: 16
  Maximum RAM: Up to 2TB
• Controllers:
  HW RAID: PERC 9 - HBA330, H330, H730P
• Drive Bays:
  Front Bays:
  Up to 4x 2.5” Hot Plug NVMe and 4x 2.5” SAS/SATA (HDD/SSD) (High Performance Chassis)
  Up to 8x 2.5” Hot Plug SAS/SATA (HDD/SSD)
  InternalDual M.2 Flash Storage Capability
• Power Supplies:
  Redundant, hot swap 550W Power Supplies and 600W DC Power Supplies available
• Fans:
  Up to six fans
• Dimensions:
  Height – 42.80 mm (1.68 inches)
  Width – 434.00 mm (17.08 inches)
  Depth – 548.00 mm (21.4 inches)
  Weight – 7.8 kg (17.2 lbs)
  *Dimensions do not include bezel or PSU
• Rack Units:
  1U Rack Server
• Embedded Management:
  iDRAC9
  Optional Quick Sync 2 BLE/wireless module
  PMI 2.0 compliant
• Bezel:
  Optional OEM rebranded or debranded bezel
  Optional OEM rebranded or debranded dust filtration bezel
• OpenManage Software:
  Consoles:
  OpenManage Enterprise
  OpenManage Enterprise Power Manager

  Mobility:
  OpenManage Mobile

  Tools:
  ODell EMC RACADM CLI
  Dell EMC Repository Manager
  Dell EMC System Update
  Dell EMC Server Update Utility
  Dell EMC Update Catalogs
  iDRAC Service Module
  IPMI Tool
  OpenManage Server Administrator
  OpenManage Storage Services
• Integrations and Connections:
  OpenManage Integrations:
  BMC Truesight
  Microsoft® System Center
  Red Hat® Ansible® Modules
  VMware vCenter

  OpenManage Connections:
  IBM Tivoli® Netcool/OMNIbus
  IBM Tivoli® Network Manager IP Edition
  Micro Focus® Operations Manager I
  Nagios® Core
  Nagios® XI
• Security:
  Cryptographically signed firmware
  Secure Boot
  Secure Erase
  Silicon Root of Trust
  System Lockdown
  TPM 1.2/2.0, TPM 2.0 optional
• Networking Options (NDC):
  2x 1GbE
  2x 10GbE BT
  2x 10GbE SFP+
  2x 25GbE SFP28
• GPU options:
  Supports 1 Single-Wide NVIDIA T4 GPU (High Performance Chassis)
• Ports:
  Front Ports:
  1x eSATA Port
  1x Dedicated iDRAC direct micro-USB
  1x USB 2.0
  1x Video

  Rear Ports:
  2x 1GbE
  1x Dedicated iDRAC network port
  1x Serial
  2x USB 3.0
  1x Video

  Internal Ports:
  1x USB 3.0
• PCIe:
  Up to 2x PCIe Gen3 slots (x16/x16)
• Operating Systems and Hypervisors:
  Canonical® Ubuntu® Server LTS
  Microsoft® Windows Server® with Hyper-V
  Red Hat® Enterprise Linux
  SUSE® Linux Enterprise Server
  VMware ESXi
  XenServer
