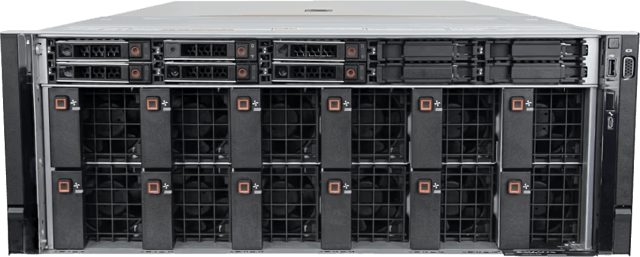

Dell PowerEdge XE8545 Server

Call for price and availability

Dell Server Generation:15th
Server Model:XE8545
Server Type:Rack
CPU:Up to two 3rd Generation Intel Xeon Scalable processors, with up to 24 cores per processor
Memory:16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 2933 MT/s
RAID:PERC H345, PERC H745, PERC H755, S150
HDD:Up to 16 x 2.5" max 122.88 TB or 8 x 3.5" max 128 TB SAS/SATA (HDD/SSD)
Power Supply:1100W DC, 800W or 600W Platinum AC
Riser:3x Gen 4 PCIe slots and 1x Gen 3 PCIe slot
Rack Units:4U

SKU: >XE8545

Videos

Base:
PowerEdge XE8545 Server
Form Factor:
4U Rack Server
Processor:
Two 3rd Generation AMD EPYC processors (280W) with up to 64 cores per processor
Dimensions & Weight:
Height: 86.8mm
Width: 447mm
Depth: 810mm
Power Supplies:
4 x Hot-plug redundant 2400W AC Power Supply
Thermal:
Air Cooled Up to 35C for 400W GPUs or 28C for 500W GPUs
Fans:
12 x Front Hot Plug Fans, 6 x Internal Fans (CPU)
Front Storage:
10 x 2.5” Hot Plug SAS/SATA
Up to 8 x 2.5” NVMe
Controllers:
BOSS S1.5, H745
I/O:
1 x PCIe Gen4 LP (x16)
1 x PCIe Gen4 FH (x16)
1 x PCIe Gen4 FH (x16) or 2 x PCIe Gen4 FH (x8)
Embedded Management:
iDRAC9
iDRAC Direct
Quick Sync 2.0
OpenManage™ Software:
iDARC Enterprise
Power Manager
SupportAssist
Update Manager
Security:
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 1.2/2.0, TCM 2.0 optional
Secure Memory Encryption
Secure Encrypted Virtualization
Memory:
32 x DDR4 Bandwidth up to 3200 MT/s
Accelerators:
4 x A100 GPUs with NVLink Options: 40GB/400W or 80GB/500W
Embedded NIC:
2 x 1GE LOM
Networking Option :
OCP x16 Mezz 3.0
Ports:
Front Ports:
1 x USB 2.0 – iDRAC dedicated

Rear Ports:
1 x USB 3.0, 1 x USB 2.0
Operating Systems & Hypervisors:
Ubuntu®
Windows Server® with Hyper-V
Red Hat® Enterprise Linux
VMware® ESXi®
