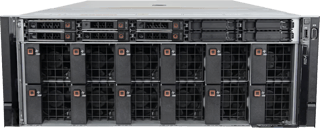

Dell PowerEdge XE8545 Server

Tech Specs

• Base:
  PowerEdge XE8545 Server
• Form Factor:
  4U Rack Server
• Processor:
  Two 3rd Generation AMD EPYC processors (280W) with up to 64 cores per processor
• Dimensions & Weight:
  Height: 86.8mm
  Width: 447mm
  Depth: 810mm
• Power Supplies:
  4 x Hot-plug redundant 2400W AC Power Supply
• Thermal:
  Air Cooled Up to 35C for 400W GPUs or 28C for 500W GPUs
• Fans:
  12 x Front Hot Plug Fans, 6 x Internal Fans (CPU)
• Front Storage:
  10 x 2.5” Hot Plug SAS/SATA
  Up to 8 x 2.5” NVMe
• Controllers:
  BOSS S1.5, H745
• I/O:
  1 x PCIe Gen4 LP (x16)
  1 x PCIe Gen4 FH (x16)
  1 x PCIe Gen4 FH (x16) or 2 x PCIe Gen4 FH (x8)
• Embedded Management:
  iDRAC9
  iDRAC Direct
  Quick Sync 2.0
• OpenManage™ Software:
  iDARC Enterprise
  Power Manager
  SupportAssist
  Update Manager
• Security:
  Cryptographically signed firmware
  Secure Boot
  Secure Erase
  Silicon Root of Trust
  System Lockdown
  TPM 1.2/2.0, TCM 2.0 optional
  Secure Memory Encryption
  Secure Encrypted Virtualization
• Memory:
  32 x DDR4 Bandwidth up to 3200 MT/s
• Accelerators:
  4 x A100 GPUs with NVLink Options: 40GB/400W or 80GB/500W
• Embedded NIC:
  2 x 1GE LOM
• Networking Option :
  OCP x16 Mezz 3.0
• Ports:
  Front Ports:
  1 x USB 2.0 – iDRAC dedicated

  Rear Ports:
  1 x USB 3.0, 1 x USB 2.0
• Operating Systems & Hypervisors:
  Ubuntu®
  Windows Server® with Hyper-V
  Red Hat® Enterprise Linux
  VMware® ESXi®
