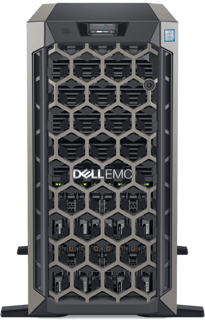

Dell PowerEdge T640 Server

From: $2,547

100% Dell Original Components
14 Day Money Back Guarantee
Dell Engineer Approved

Dell Server Generation:14th
Server Model:T640
Server Type:Rack / Tower
CPU:Up to 2 x Intel Xeon SP Multi Core
Memory:24 DIMM Slots (Max 3TB)
RAID:H730P, H350, H750
HDD:3.5" and 2.5" Hot Swap SAS, SATA and Near Line SAS, NVMe SSD
Power Supply:495W, 750W, 1100W, 1600W, 2000W and 2400W Hot Swap Redundant
Riser:8 PCIe Gen 3 Slots (Full Height)
Rack Units:5U

SKU: >T640

Videos

Resources

Blogs

Tech Specs

Base:
PowerEdge T640 Server
Form Factor:
5U Tower or Rack
Processor:
Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor
Max Depth:
708.7 mm
Power Supplies:
Titanium 750W
Platinum 495W, 750W, 1100W, 1600W, 2000W and 2400W
48VDC 1100W, 240HVDC 750W
Hot plug power supplies with full redundancy
Up to 8 fans with N+1 redundancy (6 hot-pluggable internal fans plus 2 external fans)
Memory:
24 DDR4 DIMM slots, Supports RDIMMS/ LRDIMMS, speeds up to 2993MT/s, 3TB max
Up to 12 NVDIMM, 192GB max
Supports registered ECC DDR4 DIMMs only
Drive Bays:
Up to 8 or 18 x 3.5” SAS/SATA (HDD/SSD) max 216TB or up to 16 or 32 x 2.5” SAS/SATA (HDD/SSD) max 122TB or up to 16 x 2.5” SAS/SATA (HDD/SSD) + 8x NVMe SSD max 112TB
Storage Controllers:
Internal controllers: PERC H330, H730P, H740P, HBA330, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC (RAID): H840
External HBAs (non-RAID): 12 Gbps SAS HBA
Embedded Management:
iDRAC9 with Lifecycle Controller
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module
Consoles & Mobile:
OpenManage Enterprise
OpenManage Essentials
OpenManage Mobile
OpenManage Power Center
Integrations and Connections:
BMC Software
Microsoft® System Center
VMware® vCenter™
Nagios® & Nagios® XI
HP Operations Manager (OMi)
I/O & Ports:
2 x 10GbE LOM (1GbE/10GbE)
8 x USB (1 x USB 2.0, 1 x USB 3.0, 6 x USB 2.0/3.0)
dedicated IDRAC Direct Micro-USB
Video card: VGA
Up to 8 PCIe Gen3 slots
Bezel:
Optional Security Bezel
Tools:
Dell EMC Repository Manager
Dell EMC Update Package
Dell EMC System Update
Dell EMC Server Update Utility
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
Security:
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 1.2/2.0 optional
GPU Options:
4 x DW or 8 x SW
Nvidia Tesla P100, K80M, M60, M10, P40, AMD
S7150, S7150X22
Supported Operating Systems:
Canonical® Ubuntu® Server LTS
Citrix® XenServer®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
