Dell PowerEdge R940xa Server

  • From: $2,842
100% Satisfaction Guarantee - The xByte Difference
  • 100% Dell Original Components
  • 14 Day Money Back Guarantee
  • Dell Engineer Approved

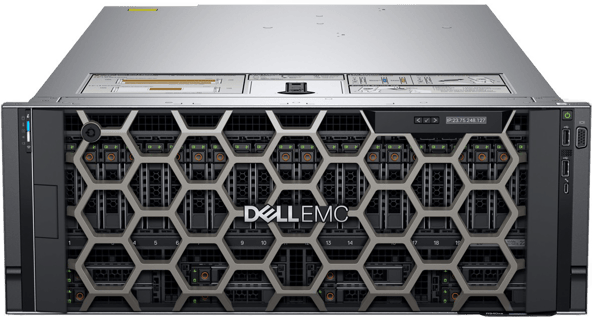

Image of Dell PowerEdge R940xa Server
  • Dell Server Generation:14th
  • Server Model:R940xa
  • Server Type:Rack
  • CPU:Up to 4 x Intel Xeon SP Multi Core
  • Memory:48 DIMM Slots (Max 6TB)
  • RAID:HBA330, PERC H330, PERC H730P 2GB NV, PERC H740P 8GB NV
  • HDD:2.5" Hot Swap SAS, SATA and Near Line SAS, NVMe SSD
  • Power Supply:1100W, 1600W, 2000w, and 2400W Hot Swap Redundant
  • Riser:Up to 13 PCIe Slots (Gen 3 slots, 3 x8 + 10 x16 bandwidth)
  • Rack Units:4U
SKU: >R940XA

Videos

Resources

Blogs

Tech Specs

  • Base:
    PowerEdge R940xa Server
  • Processor:
    Up to four 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores each
  • Memory:
    48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, up to 2933MT/s, 6TB max
    Up to 12 NVDIMM, 384GB Max
    Up to 24 Intel® Optane™ DC persistent memory DCPMM, max 12.28TB, (15.36TB max with DCPMM and LRDIMM)
    Supports registered ECC DDR4 DIMMs only
  • Storage Controllers:
    Internal Controllers: PERC H730P, H740P, H330 Software RAID (SWRAID) S140
    Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 240GB or 480GB
    External PERC (RAID): H840
    12Gbps SAS HBAs (non-RAID): External-12Gbps SAS HBA (non-RAID). Internal-HBA330 (non-RAID)
  • Drive Bays:
    Front drive bays: Up to 8x 2.5” SAS SATA (HDD/SSD) max 61.44TB, or up 24 x 2.5” SAS/SATA (HDD/SSD) max 184.32TB, or up to 32 SAS/SATA (HDD/SSD) with up to 4 NVME PCIe SSD max 245.76TB
  • Power Supplies:
    Gold 1100W -48VDC
    Platinum: 1100W, 1100W 240VDC
    1600W, 2000W, 2400W
    Hot plug power supplies with full redundancy option
    6 hot plugs fans with N +1 redundancy
  • Dimensions:
    Form Factor: 4U Rack Server
    Height: 174.3 mm (6.87”)
    Width: 441.16 mm (17.37”)
    Depth: 835.9mm (32.9”)
    Weight: 56.0kg (123.5lbs.)
    *Dimensions do not include bezel
  • Embedded Management:
    iDRAC9
    iDRAC Direct
    iDRAC RESTful API with Redfish
    Quick Sync 2 BLE/wireless
  • Bezel:
    Optional LCD bezel or security bezel
  • OpenManage™ Software:
    OpenManage Enterprise
    OpenManage Essentials
    OpenManage Mobile
    OpenManage Power Center
  • Integrations:
    Microsoft® System Center,
    VMware® vCenter™,
    BMC Truesight,
    Red Hat® Ansible® Modules
  • Connections:
    Nagios Core & Nagios XI
    Microfocus Operations Manager I
    IBM Tivoli Netcool/OMNIbus
  • Accelerator Options:
    Up to 4 doublewidth GPUs or up to 4 double-width
    or 8 single-width full-height FPGAs
  • Tools:
    Dell EMC Repository Manager
    Dell EMC Update Package
    Dell EMC System Update
    Dell EMC Server Update Utility
    iDRAC Service Module
    OpenManage Server Administrator
    OpenManage Storage Services
  • Security:
    TPM 1.2/2.0 optional
    Cryptographically signed firmware
    Secure Boot
    System Lockdown (requires OpenManage Enterprise
    Silicon Root of Trust
    Secure Erase
  • I/O & Ports:
    Network Daughter Card Options
    4 x 1GbE, 4 x 10GbE, 2 x 10GbE+2 x 1GbE, or 2 x 25GbE
    Front ports: 1 x Dedicated iDRAC Direct Micro-USB, 2 x USB 2.0, 1 x VGA. (Optional 1 x USB 3.0 only offered on the 8-drive configuration)
    Rear ports: 1 x Dedicated iDRAC port, 1 x Serial, 2 x USB 3.0, 1 x VGA
    Internal port: 1 x USB 3.0
    Video card: 2 x VGA
    PCIe: Up to 12 x Gen3 slots, (6x16 or 2x16 + 10x8 slots)
  • Supported Operating Systems:
    Canonical® Ubuntu® LTS
    Citrix® Hypervisor
    Oracle® Linux
    Microsoft Windows Server® LTSC with Hyper-V
    Red Hat® Enterprise Linux
    SUSE® Linux Enterprise Server
    VMware® ESXi
