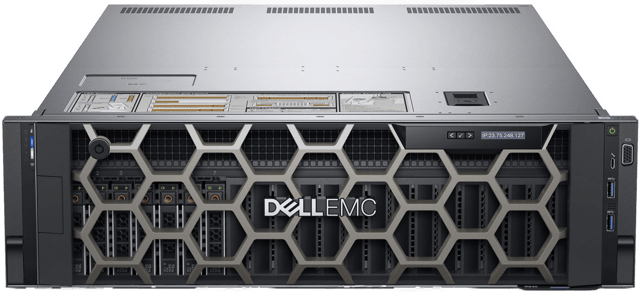

Dell PowerEdge R940 Server

Tech Specs

• Base:
  PowerEdge R940 Server
• Processor:
  Up to four Intel® Xeon® SP, up to 28 cores
• Memory:
  48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 6TB max
  Up to 12 NVDIMM, 192GB Max
  Supports registered ECC DDR4 DIMMs only
• Storage Controllers:
  Internal controllers: PERC S140, H330, H740P
  Boot optimized Storage Subsystem
  External HBAs (RAID): H840
  External HBAs (non-RAID): 12 Gbps SAS HBA
• Drive Bays:
  Front drive bays: Up to 24 x 2.5” SAS/SATA (HDD/SSD) with up to 12 NVMe PCIe SSD, max 122TB
• Power Supplies:
  Platinum 1100W, 1600W, 2000W, 2400W, 336-380VDC 1100W, Gold 48VDC 1100W
  Hot plug power supplies with full redundancy option
  8 hot plugs fans with full redundancy
• Embedded Management:
  IPMI 2.0 compliant
  iDRAC9 with Life cycle Controller (Express, Enterprise)
  Quick Sync 2 wireless module optional
• Bezel:
  Optional LCD bezel
• OpenManage™ Software:
  OpenManage Enterprise
  OpenManage Essentials
  OpenManage Mobile
  OpenManage Power Center
• Integrations:
  Microsoft® System Center,
  VMware® vCenter™,
  BMC Software (available from BMC)
• Connections:
  Nagios Core & Nagios XI,
  Oracle Enterprise Manager,
  HP Operations Manager,
  IBM Tivoli Netcool/OMNIbus
  IBM Tivoli® Network Manager,
  CA Network and Systems Management
• Dimensions:
  Form Factor: 3U Rack Server
  Chassis Depth: 777.05mm
• Security:
  TPM 1.2/2.0 optional
  Cryptographically signed firmware
  Secure Boot
  System Lockdown
  Secure Erase
• I/O & Ports:
  Network Daughter Card Options
  4x 1Gb, 4x 10Gb, 2x 10Gb+2x 1Gb, or 2x 25Gb
  Front ports: Video, 2 x USB 3.0,
  dedicated IDRAC Direct USB
  Rear ports: Video, serial, 2 x USB 3.0,
  dedicated iDRAC network port
  Video card: VGA
  Up to 13 x Gen3 slots, (3 x8 + 10 x16)
• Supported Operating Systems:
  Canonical® Ubuntu® LTS
  Citrix® XenServer®
  Microsoft Windows Server® with Hyper-V
  Red Hat® Enterprise Linux
  SUSE® Linux Enterprise Server
  VMware® ESXi
