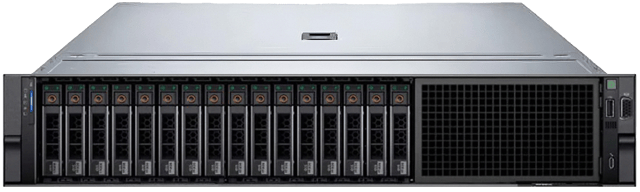

Dell PowerEdge R760xd2 Server

Tech Specs

• Base:
  PowerEdge R760xd2 Server
• Form Factor:
  2U Rack Server
• Processor:
  Up to two 5th Generation Intel Xeon Scalable processors, with up to 28 cores per processor and optional Intel® QuickAssist Technology
• Dimensions:
  Height: 86.8mm (3.41 inches)
  Width: 481.6mm (18.96 inches)
  Depth: 837mm (32.95 inches)
• Power Supplies:
  1800 W Titanium 200—240 VAC or 240 HVDC, hot swap
  1400 W Platinum 100 — 240 VAC or 240 HVDC, hot swap
  1400 W Titanium 277 VAC or 336 HVDC, hot swap
  1100 W Titanium 100 — 240 VAC or 240 HVDC, hot swap
  1100W LVDC –48 — 60 VDC, hot swap
  700 W Titanium 200 — 240 VAC or 240 HVDC, hot swap
• Cooling Options:
  Air cooling
• Fans:
  Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans
  Up to 6 hot plug fans
• Memory:
  16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5600 MT/s
  Supports registered ECC DDR5 DIMMs only
• Drive Bays:
  Front Bays:
  Up to 12x 3.5-inch SAS/SATA max 264 TB

  Mid Bays:
  Up to 12x 3.5-inch SAS/SATA max 264 TB

  Rear Bays:
  Up to 4 x 3.5-inch SAS/SATA max 88 TB
  Up to 4 x 2.5-inch NVMe with 3.5-inch carrier max 30.72 TB
  Up to 2 x 2.5-inch NVMe max 15.36 TB
  4 x E3.S NVMe max 30.72 TB


• Storage Controllers:
  Internal Controllers (RAID): PERC H965i, PERC H755, PERC H355
  Internal Controllers (non-RAID): HBA355i
  Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2x M.2 NVMe SSDs (hot-swappable,  or USB
  External HBA (non-RAID): HBA355e
  External Controllers (RAID): H965e
• Embedded Management:
  iDRAC9
  iDRAC Direct
  iDRAC RESTful API with Redfish
  iDRAC Service Module
• OpenManage Software:
  OpenManage Enterprise
  OpenManage Power Manager plugin
  OpenManage Service plugin
  OpenManage Update Manager plugin
  CloudIQ for PowerEdge plugin
  OpenManage Enterprise Integration for VMware vCenter
  OpenManage Integration for Microsoft System Center
  OpenManage Integration with Windows Admin Center
• Mobility:
  OpenManage Mobile
• OpenManage Integrations:
  BMC Truesight
  Microsoft System Center
  Red Hat Ansible Modules
  OpenManage Integration with ServiceNow
  Terraform Providers
  VMware vCenter and vRealize Operations Manager
• Security:
  Cryptographically signed firmware
  Data at Rest Encryption (SEDs with local or external key mgmt)
  Secure Boot
  Secure Erase
  Secured Component Verification (Hardware integrity check)
  Silicon Root of Trust
  System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
• Embedded NIC:
  2x 1 GbE LOM card (optional)
• Networking Options (NDC):
  1x OCP card 3.0 (optional)
• GPU Options:
  Up to 2x 75W SW
  1x 75 W SW + 1 x 150W SW or 1x 180W DW
• Ports:
  Front Ports:
  1x iDRAC Direct (Micro-AB USB) port
  1x USB 2.0

  Internal Ports:
  1x USB 3.0 (optional)

  Rear Ports:
  1x Dedicated iDRAC Ethernet port
  1x USB 2.0
  1x USB 3.0
  1x VGA
• PCIe:
  Up to five PCIe slots:
  Slot 1: Slot 1: 1 x16 Gen4 Low profile, Half length
  Slot 2: 1 x8 (x16 connector) Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length
  Slot 3: 1 x16 Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length
  Slot 4: 1 x16 Gen4 Low profile, Half length
  Slot 5: 1 x16 Gen4 Low profile, Half length
  Note: Slot 5 is dedicated for internal PERC card
• Operating Systems & Hypervisors:
  Canonical Ubuntu Server LTS
  Microsoft Windows Server with Hyper-V
  Red Hat Enterprise Linux
  SUSE Linux Enterprise Server
  VMware ESXi
