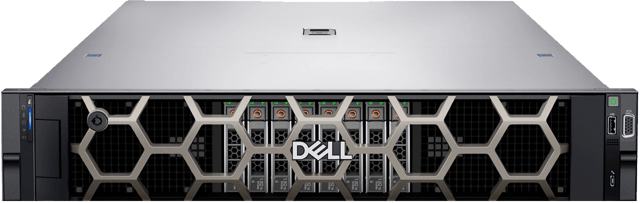

Dell PowerEdge R760xa Server

Tech Specs

• Base:
  PowerEdge R760xa Server
• Form Factor:
  2U Rack Server
• Processor:
  Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and optional Intel® QuickAssist Technology
• Dimensions:
  Height: 86.8mm (3.41 inches)
  Width: 482mm (18.97 inches)
  Depth w/o Bezel: 946.73 mm (37.27 inches)
  Depth w/ Bezel: 932.89 mm (36.73 inches)
• Power Supplies:
  3200 W Titanium 277–305 VAC or 336 HVDC, hot swap
  2800 W Titanium 200–240 VAC or 240 HVDC, hot swap
  2400 W Platinum 100–240 VAC or 240 HVDC, hot swap
• Cooling Options:
  Air cooling
  Optional Direct Liquid Cooling
• Fans:
  Up to 6x Standard hot plug fans
• Memory:
  32 DDR5 DIMM slot, supports RDIMM 8 TB max
  Speeds up to 4800 MT/s on 4th Gen Intel® CPUs
  Speeds up to 5600 MT/s on 5th Gen Intel® CPUs
  Supports registered ECC DDR5 DIMMs only
• Drive Bays:
  Front Bays:
  Up to 6 x E3.S Gen5 NVMe, max 46.08 TB
  Up to 6 x 2.5-inch NVMe, max 92.16 TB
  Up to 8 x 2.5-inch SAS/SATA/NVMe, max 122.88 TB
• Storage Controllers:
  Internal Controllers (RAID): PERC H965i, H755, H755N, H355, HBA355i, HBA465i
  Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2x M.2 NVMe SSDs (hot-swappable,  or USB
  External HBA (non-RAID): HBA355e, HBA465e, H965e
  Software RAID: S160
• Embedded Management:
  iDRAC9
  iDRAC Direct
  iDRAC RESTful API with Redfish
  iDRAC Service Module
  Quick Sync 2 wireless module
• OpenManage Software:
  OpenManage Enterprise
  OpenManage Power Manager plugin
  OpenManage Service plugin
  OpenManage Update Manager plugin
  CloudIQ for PowerEdge plugin
  OpenManage Enterprise Integration for VMware vCenter
  OpenManage Integration for Microsoft System Center
  OpenManage Integration with Windows Admin Center
• OpenManage Integrations:
  BMC Truesight
  Microsoft System Center
  Red Hat Ansible Modules
  OpenManage Integration with ServiceNow
  Terraform Providers
  VMware vCenter and vRealize Operations Manager
• Security:
  Cryptographically signed firmware
  Data at Rest Encryption (SEDs with local or external key mgmt)
  Secure Boot
  Secure Erase
  Secured Component Verification (Hardware integrity check)
  Silicon Root of Trust
  System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
• Mobility:
  OpenManage Mobile
• Bezel:
  Optional LCD bezel or security bezel
• Networking Options (NDC):
  1x OCP card 3.0 (optional)
• GPU Options:
  Up to 4x 400 W DW PCIe x16 GPU cards
  Up to 12x 75 W SW PCIe x8 GPU cards
• Ports:
  Front Ports:
  1x iDRAC Direct (Micro-AB USB) port
  1x USB 2.0
  1 x VGA

  Rear Ports:
  1x Dedicated iDRAC Ethernet port
  1x USB 2.0
  1x USB 3.0
  1x Serial (optional)
  1 x VGA (optional for Direct Liquid Cooling configuration)
• PCIe:
  Up to twelve PCIe slots (x16 connector):
  4 x16 Rear Full height, Half length + 4 x16 Front Full height, Full length DW
  4 x16 Rear Full height, Half length + 8 x 8 Front Full height, Full length SW
• Operating Systems & Hypervisors:
  Canonical Ubuntu Server LTS
  Microsoft Windows Server with Hyper-V
  Red Hat Enterprise Linux
  SUSE Linux Enterprise Server
  VMware ESXi
