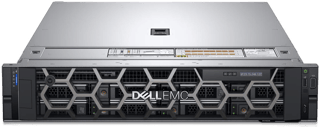

Dell PowerEdge R7525 Server

Tech Specs

• Base:
  PowerEdge R7525 Server
• Form Factor:
  2U Rack Server
• Processor:
  Two 2nd or 3rd Generation AMD EPYC Processors with up to 64 cores per processor
• Dimensions & Weight:
  Height: 86.8mm (3.42”)
  Width: 434.0mm (17.09”)
  Depth: 736.29mm (28.99”)
  Weight: 36.3kg (80lb)
• Power Supplies:
  800W Platinum
  1400W Platinum
  2400W Platinum
• Fans:
  Standard/High Performance/Very High Performance
  Hot Plug Fans
• Memory:
  DDR4: Up to 32 x DDR4 RDIMM (2TB), LRDIMM (4TB), bandwidth up to 3200 MT/S
• Storage:
  Front Bays:
  Up to 24 x 2.5” with up to 24 NVMe, SAS/SATA (SSD/HDD)
  Up to 12 x 3.5” SAS/SATA (HDD)
  Up to 16 x 2.5” SAS/SATA (SSD/HDD)
  The 24 x 2.5” SAS/SATA backplane won’t be available until April block

  Rear Bays:
  Up to 2 x 2.5” SAS/SATA (HDD/SSD)
• Controllers:
  HBA345, PERC H345, PERC H745, H840, 12Gbps SAS HBA
  Chipset SATA/SW RAID(S150): Yes
  PERC11 – H755, H755N
• Embedded Management:
  iDRAC9
  iDRAC RESTful API with Redfish
  iDRAC Direct
  Quick Sync 2 BLE/wireless module
• OpenManage™ Software:
  OpenManage Enterprise
  OpenManage Enterprise Power Manager
  OpenManage Mobile
• Integrations and Connections:

  OpenManage Integrations
  BMC Truesight
  Microsoft® System Center
  Red Hat® Ansible® Modules
  VMware® vCenter™

  OpenManage Connections
  IBM Tivoli® Netcool/OMNIbus
  IBM Tivoli® Network Manager IP Edition
  Micro Focus® Operations Manager I
  Nagios® Core
  Nagios® XI
• Security:
  Cryptographically signed firmware
  Secure Boot
  Secure Erase
  Silicon Root of Trust
  System Lockdown (requires OpenManage Enterprise)
  TPM 1.2/2.0, TCM 2.0 optional
  AMD Secure Memory Encryption (SME)
  AMD Secure Encrypted Virtualization (SEV)
• Bezel:
  Optional LCD or Security Bezel
• Embedded NIC:
  2 x 1GE LOM
• Networking Options (NDC):
  OCP x16 Mezz 3.0
• GPU Options:
  Up to three double wide 300W or six single wide 75W accelerators
• Ports:
  Front Ports:
  1 x Dedicated iDRAC direct micro-USB
  1 x USB 2.0
  1 x VGA

  Internal Ports:
  1 x USB 2.0

  Rear Ports:
  1 x USB 2.0
  1 x Serial (optional)
  1 x USB 3.0
  1 x Ethernet
  1 x VGA
  1 x Power Button
• PCIe:
  Up to 8 x PCIe Gen4 slots
• Supported Operating Systems:
  ESXi 9.1 - U1
  Red Hat Enterprise Linux 9
  Red Hat® Enterprise Linux 7
  Red Hat® Enterprise Linux 8
  SuSE Linux ES 15
  Ubuntu Server 20.04 LTS
  Ubuntu Server 22.04 LTS
  Ubuntu Server 24.04 - U3
  Ubuntu® Server 18.04 LTS
  VMware ESXi 6.5
  VMware ESXi 6.7
  VMware ESXi 7.0
  VMware ESXi 8.0
  VMware ESXi 9.0
  Windows Server 2016
  Windows Server 2019 LTSC
  Windows Server 2022 LTSC
  Windows Server 2025 LTSC
