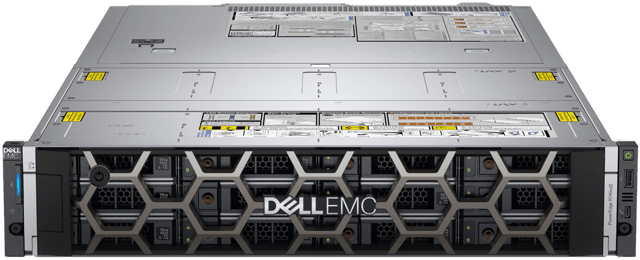

Dell PowerEdge R740xd2 Server

Tech Specs

• Base:
  PowerEdge R740xd2 Server
• Processor:
  Up to two Intel® Xeon® Scalable processors, up to 22 cores each
• Memory:
  16 DDR4 RDIMM slots, up to 2666MT/s, 512GB max
  Supports registered ECC DDR4 DIMMs only
• Storage Controllers:
  Internal Controllers: PERC H730P, H330, Software RAID (SWRAID) S140
  Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 240GB or 480GB
  12Gbps SAS HBAs (non-RAID): Internal- HBA330 (non-RAID)
• Drive Bays:
  Front drive bays: Up to 24 x 3.5” SAS/ SATA (HDD) max 336TB, or up 16 x 3.5” SAS/SATA (HDD) plus up to 8 x 2.5”
  SAS (SSD) max 285.44TB
  Rear drive bays: Up to 2 x 3.5” SAS SATA (HDD) max 28TB or up to 2 x 2.5” SAS (SSD) drives max 15.36TB
• Dimensions:
  Form Factor: 2U Rack Server
  Chassis Height: 86.8mm
  Chassis Width: 448mm
  Chassis Weight: 40kg
  Chassis Depth: 810mm
  (These metrics do not include the PSU handle, rack latches or the bezel.)
• Power Supplies:
  Platinum: 750W or 1100W
  HVDC: 750W or 1100W
  Hot plug power supplies with full redundancy option
  6 fans with N +1 redundancy
• Embedded Management:
  iDRAC9 with Lifecycle Controller
  iDRAC Direct
  iDRAC RESTful API with Redfish
• Bezel:
  Optional security bezel
• OpenManage™ Software:
  OpenManage Enterprise
  OpenManage Essentials
  OpenManage Mobile
  OpenManage Power Center
• Integrations:
  Microsoft® System Center, VMware® vCenter™,BMC Truesight (available from BMC), Red Hat Ansible
• Tools:
  iDRAC Service Module
  OpenManage Server Administrator
  Dell EMC Repository Manager
  Dell EMC System Update
  Dell EMC Server Update Utility
  Dell EMC Update Catalogs
  Dell EMC RACADM CLI IPMI Tool
• Connections:
  Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool/OMNIbus
• Security:
  TPM 1.2/2.0 TCM 2.0 optional
  Cryptographically signed firmware
  Silicon Root of Trust
  Secure Boot
  System Lockdown (requires OpenManage Enterprise)
  Secure Erase
• I/O & Ports:
  Network options
  2 x1GbE BaseT LOM + (optional LOM riser) 2 x 1Gb BaseT or 2 x10GbE SFP+ or 2x 10GbE BaseT or 2x 25GbE SPF+
  Front ports: 1 x USB 3.0, 1 managed (micro-usb), dedicated IDRAC Direct USB.
  Rear ports: Video, serial, iDRAC dedicated LAN, 2 x USB 3.0
  Internal ports: 1 x USB 3.0
  Video card: VGA
  PCIe: Up to 5 x Gen3 slots (x16)
• Supported Operating Systems:
  Canonical® Ubuntu® LTS
  Citrix® XenServer®
  Microsoft Windows Server® with Hyper-V
  Red Hat® Enterprise Linux
  SUSE® Linux Enterprise Server
  VMware® ESXi
