Dell PowerEdge R6525 Server

  • From: $3,833
100% Satisfaction Guarantee - The xByte Difference
  • 100% Dell Original Components
  • 14 Day Money Back Guarantee
  • Dell Engineer Approved

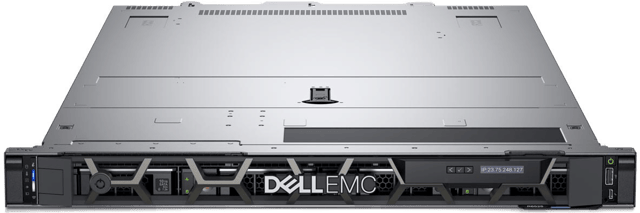

Image of Dell PowerEdge R6525 Server
  • Dell Server Generation:15th
  • Server Model:R6525
  • Server Type:Rack
  • CPU:Two 2nd or 3rd Gen AMD EPYC Processors with up to 64 cores per processor
  • Memory:32 DIMM Slots (Max 4TB)
  • RAID:PERC 10.5, HBA345, H345, H745, H840, 12G SAS HBA or PERC11 H755, H755N
  • HDD:2.5" or 3.5" Hot Swap NVMe, SAS, SATA and Near Line SAS
  • Power Supply:800W, 1100W, and 1400W Hot Swap Redundant
  • Riser:3 x Gen4 slots (x16) at 16GT/s
  • Rack Units:1U
SKU: >R6525

Videos

Resources

Tech Specs

  • Base:
    PowerEdge R6525 Server
  • Form Factor:
    1U Rack Server
  • Processor:
    Two 2nd or 3rd Generation AMD EPYCTM Processors with up to 64 cores per processor
  • Availability:
    Hot plug redundant Hard drives, Fans, PSUs
  • Power Supplies:
    800W Platinum
    1400W Platinum
    1100W Titanium
  • Fans:
    Hot plug Fans
  • Memory:
    Up to 32 x DDR4
    Maximum RAM
    RDIMM 2 TB
    LRDIMM 4TB Max
    Bandwidth up to 3200 MT/S
  • Controllers:
    PERC 10.5 – HBA345, H345, H745, H840, 12G SAS HBA
    PERC 11 – H755, H755N
    Chipset SATA/SW RAID (S150): Yes
  • Drive Bays:
    Front Bays:
    Up to 4 x 3.5” hot plug SAS/SATA (HDD)
    Up to 8 x 2.5” hot plug SAS/SATA (HDD)
    Up to 12 x 2.5” (10 Front + 2 Rear) hot plug SAS/SATA/NVMe

    Optional Internal Bays:
    2 x M.2 (BOSS) Optional Rear Bays:
    2 x M.2 (BOSS-S2)
  • Dimensions:
    Height: 42.8mm (1.7”)
    Width: 434.0mm (17.1”)
    Depth: 736.54mm (29”)
    Weight: 21.8kg (48.06lbs)
  • Embedded Management:
    iDRAC9
    iDRAC RESTful API with Redfish
    iDRAC Direct
    Quick Sync 2 BLE/wireless module
  • OpenManage™ Software:
    OpenManage Enterprise
    OpenManage Power Manager
    OpenManage Mobile
  • Integrations and Connections:
    OpenManage Integrations:
    BMC Truesight
    Microsoft® System Center
    Red Hat® Ansible® Modules
    VMware vCenter

    OpenManage Connections:
    IBM Tivoli® Netcool/OMNIbus
    IBM Tivoli® Network Manager IP Edition
    Micro Focus® Operations Manager
    Nagios® Core
    Nagios® XI
    Micro Focus® Operations Manager I
    Nagios® Core
    Nagios® XI
  • Embedded NIC:
    2 x 1 GbE LOM ports
  • Networking Options (NDC):
    OCP x16 Mezz 3.0 + 2 x 1GE LOM
  • Security:
    Cryptographically signed firmware
    Secure Boot
    Secure Erase
    Silicon Root of Trust
    System Lockdown
    TPM 1.2/2.0, TCM 2.0 optional
  • Bezel:
    Optional LCD or Security Bezel
  • GPU Options:
    Up to 2 Single-Wide GPU
  • Ports:
    Front Ports:
    1 x Dedicated iDRAC direct micro-USB
    1 x USB 2.0
    1 x VGA

    Rear Ports:
    1 x Dedicated iDRAC network port
    1 x Serial (optional)
    1 x USB 3.0
    1 x VGA

    Internal:
    1 x USB 3.0 (optional)
  • PCIe:
    3 x Gen4 slots (x16) at 16GT/s
  • Operating Systems & Hypervisors:
    Canonical® Ubuntu® Server LTS
    Citrix® Hypervisor
    Microsoft® Windows Server® with Hyper-V
    Red Hat® Enterprise Linux
    SUSE® Linux Enterprise Server
    VMware® ESXi®
