Dell PowerEdge R640 Server

  • From: $298
100% Satisfaction Guarantee - The xByte Difference
  • 100% Dell Original Components
  • 14 Day Money Back Guarantee
  • Dell Engineer Approved

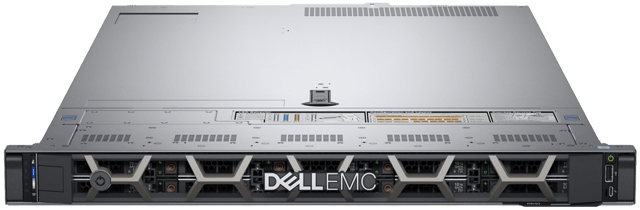

Image of Dell PowerEdge R640 Server
  • Dell Server Generation:14th
  • Server Model:R640
  • Server Type:Rack
  • CPU:Up to 2 x Intel Xeon SP Multi Core
  • Memory:24 DIMM Slots (Max 3TB)
  • RAID:PERC H330, PERC H730P 2GB NV, PERC H740P 8GB NV, PERC H750
  • HDD:3.5" and 2.5" Hot Swap SAS, SATA and Near Line SAS, NVMe SSD
  • Power Supply:495W, 750W, 1100W, or 1600W Hot Swap Redundant
  • Riser:3 PCIe Slots (Half Height) or 2 PCIe Slots (1 Full Height, 1 Half Height)
  • Rack Units:1U
SKU: >R640

Videos

Resources

Blogs

Tech Specs

  • Base:
    PowerEdge R640 Server
  • Processor:
    Up to two Intel® Xeon® SP, up to 28 cores per processor
  • Memory:
    24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 1.5TB max
    Up to 12 NVDIMM, 192 GB Max
    Supports registered ECC DDR4 DIMMs only
  • Storage Controllers:
    Internal controllers: PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140
    Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
    External PERC (RAID): H840
    External HBAs (non-RAID): 12 Gbps SAS HBA
  • Drive Bays:
    Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 8 NVMe SSD max 58TB or up to 4 x 3.5 SAS/SATA HDD max 40TB
    Rear drive bays: Up to 2 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 12TB
    Optional DVD-ROM, DVD+RW
  • Dimensions:
    Form Factor: 1U Rack Server
    Chassis depth: 705.05 mm
  • Power Supplies:
    Titanium 750W, Platinum
    495W, 750W, 1100W and 1600W
    48VDC 1100W, 380HVDC 1100W, 240HVDC 750W
    Hot plug power supplies with full redundancy option
  • Embedded Management:
    IPMI 2.0 compliant
    iDRAC9 with Lifecycle Controller (Express, Enterprise)
    Quick Sync 2 wireless module optional
  • Bezel:
    Optional LCD or security bezel
  • OpenManage™ Software:
    OpenManage Enterprise
    OpenManage Essentials
    OpenManage Mobile
    OpenManage Power Center
  • Integrations:
    Microsoft® System Center, VMware® vCenter™, BMC Software
  • Connections:
    Nagios & Nagios XI, Oracle Enterprise Manager, HP Operations Manager, IBM Tivoli Netcool/OMNIbus, IBM Tivoli® Network Manager, CA Network and Systems Management
  • Security:
    TPM 1.2/2.0, TCM 2.0 optional
    Cryptographically signed firmware
    Secure Boot
    System Lockdown
    System Erase
  • I/O & Ports:
    Network daughter card options
    4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
    Front ports: Video, 1 x USB 2.0, available USB 3.0, dedicated IDRAC Direct USB
    Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port
    Video card: VGA, NVIDIA NVS310 available as PCIe card
    Up to 3 x Gen3 slots, all x16
  • Supported Operating Systems:
    Canonical® Ubuntu® Server LTS
    Citrix® XenServer®
    Microsoft Windows Server® LTSC with Hyper-V
    Red Hat® Enterprise Linux
    SUSE® Linux Enterprise Server
    VMware® ESXi
