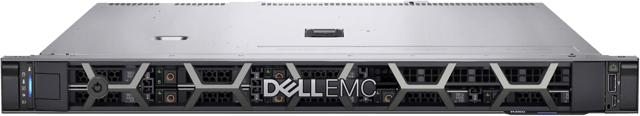

Dell PowerEdge R350 Server

Tech Specs

• Base:
  PowerEdge R350 Server
• Form Factor:
  1U Rack Server
• Processor:
  One Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores
• Dimensions:
  Height – 42.8 mm (1.69 inches)
  Width – 482 mm (18.98 inches)
  Depth (without bezel) – 585.3 mm (23.04 inches)
  Depth (with bezel) – 598.94 mm (23.58 inches)
• Power Supplies:
  600W Platinum 100-240 VAC or 240 VDC redundant, hot swap
• Fans:
  Up to four fans with full redundancy
• Cooling Options:
  Air cooling
• Bezel:
  Optional LCD or Security Bezel
• Memory:
  Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s
  Supports unregistered ECC DDR4 DIMMs only
  Note: For Pentium processor, the maximum memory speed is 2666 MT/s
• Drive Bays:
  Front Bays:
  Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
  Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 128 TB
• Embedded Management:
  iDRAC9
  iDRAC Service Module
  iDRAC Direct
  iDRAC RESTful API with Redfish
• OpenManage™ Software:
  OpenManage Enterprise
  OpenManage Power Manager plugin
  OpenManage SupportAssist plugin
  OpenManage Update Manager plugin
• Mobility:
  OpenManage Mobile
• Integrations and Connections:
  OpenManage Integrations:
  BMC Truesight
  Microsoft® System Center
  Red Hat® Ansible® Modules
  VMware vCenter and vRealize Operations Manager

  OpenManage Connections:
  IBM Tivoli® Netcool/OMNIbus
  IBM Tivoli® Network Manager IP Edition
  Micro Focus® Operations Manager I
  Nagios® Core
  Nagios® XI
• Security:
  Cryptographically signed firmware
  Secure Boot
  Secure Erase
  Silicon Root of Trust
  System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  TPM 1.2/2.0 FIPS, CC-TCG certified, TCM 2.0 optional
• Embedded NIC:
  2 x 1 GbE LOM
• Ports:
  Front Ports:
  1 x USB 2.0
  1 x iDRAC Direct (Micro-AB USB) port

  Rear Ports:
  1 x USB 2.0
  1 x iDRAC Ethernet Port
  1 x USB 3.0
  2 x Serial Port
  1 x VGA

  Internal:
  1 x USB 3.0 (optional)
• 2 x PCIe Gen4 slots:
  1 x8 Gen4 (x16 connector) low profile, half length
  1 x8 Gen4 (x8 connector) low profile, half length
• Operating Systems and Hypervisors:
  Canonical® Ubuntu® Server LTS
  Microsoft® Windows Server® with Hyper-V
  Red Hat® Enterprise Linux
  SUSE® Linux Enterprise Server
  Citrix Hypervisor
