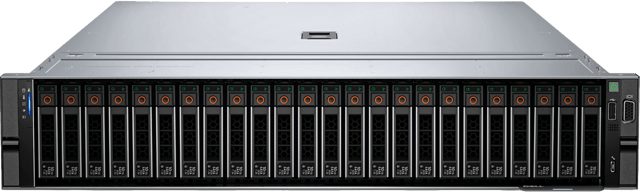

Dell PowerEdge R760

Base:
PowerEdge R760 Server

Form Factor:
2U Rack Server

Processor:
Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist Technology

Dimensions:
Height: 86.8mm (3.41 inches)
Width: 482mm (18.97 inches)
Depth with Bezel: 772.13mm (30.39 inches)
Depth without Bezel: 758.29mm (29.85 inches)

Power Supplies:
2800W Titanium 200—240 VAC or 240 HVDC, hot swap
2400W Platinum 100—240 VAC or 240 HVDC, hot swap
1800W Titanium 200—240 VAC or 240 HVDC, hot swap
1400W Platinum 100—240 VAC or 240 HVDC, hot swap
1100W Titanium 100—240 VAC or 240 HVDC, hot swap
1100W LVDC -48 — -60 VDC, hot swap
800W Platinum 100—240 VAC or 240 HVDC, hot swap
700W Titanium 200—240 VAC or 240 HVDC, hot swap

Cooling Options:
Air cooling
Optional Direct Liquid Cooling (DLC)
Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.

Fans:
Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans
Up to 6 hot plug fans

Memory:
32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s
Supports registered ECC DDR5 DIMMs only

Drive Bays:
Front Bays:
Up to 12x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
Up to 8x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
Up to 16x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
Up to 24x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB

Rear Bays:
Up to 2x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
Up to 4x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

Storage Controllers:
Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2x M.2 NVMe SSDs or USB
External HBA (non-RAID): HBA355e
Software RAID: S160

Embedded Management:
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless module

OpenManage Software:
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
CloudIQ for PowerEdge plugin
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center

Mobility:
OpenManage Mobile

OpenManage Integrations:
BMC Truesight
Microsoft System Center
Red Hat Ansible Modules
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

Security:
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Bezel:
Optional LCD or Security Bezel

Embedded NIC
2x 1 GbE LOM card (optional)

Networking Options (NDC):
1x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.

GPU Options (NDC):
Up to 2x 350W DW and 6x 75W SW

Ports:
Front Ports:
1x iDRAC Direct (Micro-AB USB) port
1x USB 2.0
1x VGA

Internal Ports:
1x USB 3.0 (optional)

Rear Ports:
1x Dedicated iDRAC Ethernet port
1x USB 2.0
1x USB 3.0
1x VGA
1x Serial (optional)
1x VGA (optional for Direct Liquid Cooling configuration)

PCIe:
Up to eight PCIe slots:
Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length
Slot 3: 1 x16 Gen4 Low profile, Half length
Slot 4: 1 x8 Gen4 Full height, Half length
Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
Slot 6: 1 x16 Gen4 Low profile, Half length
Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length
Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length

Operating Systems & Hypervisors:
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
