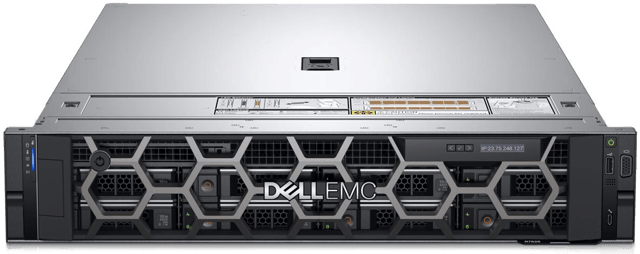

Dell PowerEdge R7525

The new Dell EMC PowerEdge R7525 Rack Server is a highly adaptable rack server that delivers powerful performance and flexible configurations.


server

General Server Details:


CPU(s): 2x 2nd or 3rd Generation AMD EPYC Processors with up to 64 cores per processor
Memory: Up to 32 x DDR4 RDIMM (2TB max)
RAID: HBA345, PERC H345, PERC H745, H840, 12Gbps SAS HBA
HDD: Up to 24 x 2.5” with up to 24 NVMe, SAS/SATA (SSD/HDD)
RISER: Up to 8 x PCIe Gen4 slots
Power: 800W, 1400 or 2400W




TECH SPECS


Base:
PowerEdge R7525 Server


Form Factor:
2U Rack Server


Processor:
Two 2nd or 3rd Generation AMD EPYC Processors with up to 64 cores per processor


Dimensions & Weight:
Height: 86.8mm (3.42”)
Width: 434.0mm (17.09”)
Depth: 736.29mm (28.99”)
Weight: 36.3kg (80lb)


Power Supplies:
800W Platinum
1400W Platinum
2400W Platinum


Fans:
Standard/High Performance/Very High Performance
Hot Plug Fans


Memory:
DDR4: Up to 32 x DDR4 RDIMM (2TB), LRDIMM (4TB), bandwidth up to 3200 MT/S


Storage:
Front Bays:
Up to 24 x 2.5” with up to 24 NVMe, SAS/SATA (SSD/HDD)
Up to 12 x 3.5” SAS/SATA (HDD)
Up to 16 x 2.5” SAS/SATA (SSD/HDD)
The 24 x 2.5” SAS/SATA backplane won’t be available until April block

Rear Bays:
Up to 2 x 2.5” SAS/SATA (HDD/SSD)

Controllers:
HBA345, PERC H345, PERC H745, H840, 12Gbps SAS HBA
Chipset SATA/SW RAID(S150): Yes
PERC11 – H755, H755N


Embedded Management:
iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module


OpenManage™ Software:
OpenManage Enterprise
OpenManage Enterprise Power Manager
OpenManage Mobile


Integrations and Connections:

OpenManage Integrations
BMC Truesight
Microsoft® System Center
Red Hat® Ansible® Modules
VMware® vCenter™

OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI


Security:
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional
AMD Secure Memory Encryption (SME)
AMD Secure Encrypted Virtualization (SEV)

Bezel:
Optional LCD or Security Bezel


Embedded NIC
2 x 1GE LOM


Networking Options (NDC):
OCP x16 Mezz 3.0


GPU Options (NDC):
Up to three double wide 300W or six single wide 75W accelerators


Ports:
Front Ports:
1 x Dedicated iDRAC direct micro-USB
1 x USB 2.0
1 x VGA

Internal Ports:
1 x USB 2.0

Rear Ports:
1 x USB 2.0
1 x Serial (optional)
1 x USB 3.0
1 x Ethernet
1 x VGA
1 x Power Button


PCIe:
Up to 8 x PCIe Gen4 slots


Operating Systems & Hypervisors:
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
