Base:

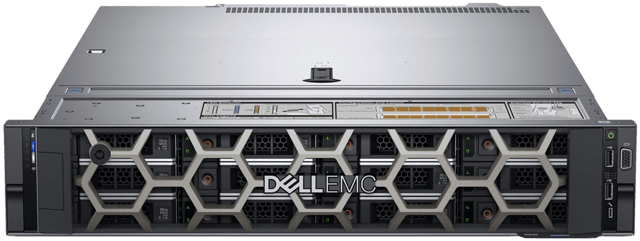

PowerEdge R540 Server
Processor:
Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 20 cores per processor
Memory:
16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 1TB max
Fans:
Up to six fans
Storage Controllers:
Internal controllers: PERC H330, H730P, H740P, HBA330, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC (RAID): H840
External HBAs (non-RAID): 12 Gbps SAS HBA
Drive Bays:
Front drive bays: Up to 12 x 3.5” SAS/SATA HDD max 168TB
Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD max 28TB
Optional DVD-ROM, DVD+RW
Sizing:
Form Factor: 2U Rack Server
Height: 86.8mm (3.41”)
Width*: 434mm (17.08”)
Depth*: 693.81mm (27.31”)
Weight: 29.68kg (65.43lbs.)
*Dimensions do not include bezel.
Bezel:
Optional LCD or security bezel
Embedded/At-Server:
iDRAC9
iDRAC Direct
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module
Consoles & Mobile:
OpenManage Enterprise
OpenManage Essentials
OpenManage Mobile
OpenManage Power Center
Integrations:
OpenManage integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight, Red Hat® Ansible® Modules
Connections:
Nagios® Core and Nagios® XI, IBM Tivoli® Netcool/OMNIbus
Micro Focus Operations Manager I
Tools:
Dell EMC Repository Manager
Dell EMC Update Package
Dell EMC System Update
Dell EMC Server Update Utility
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
Power Supplies:
Platinum 495W, 750W, 1100W
Hot plug power supplies with full redundancy option
Security:
TPM 1.2/2.0, TCM 2.0 optional
Cryptographically signed firmware
Silicon Root of Trust
Secure Boot
System Lockdown (requires OpenManage Enterprise)
System Erase
I/O & Ports:
Network options: 2 x 1GbE LOM + (optional) LOM Riser 2 x 1GbE or 2 x 10GbE SFP+ or 2 x 10GbE BaseT
Front: 1 x Dedicated iDRAC Direct, 1 x USB 2.0, 1 x Video
Rear: 1 x Dedicated iDRAC, 1 x Serial, 2 x USB 3.0, 1 x Video
Optional Riser: Non-rear storage config: 1xFH/FL + 1xHH/HL (2U Right riser) slots + 3 HH/HL slots
Rear storage config: 1xHH/HL (1U Left Riser) + 1xHH/HL (1U Right risers) slot or 1xHH/HL (1U Left Riser) + 1x FH/HL (1U Right riser)
Supported Operating Systems:
Canonical® Ubuntu® Server LTS
Citrix® XenServer®
Microsoft Windows Server® LTSC with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
