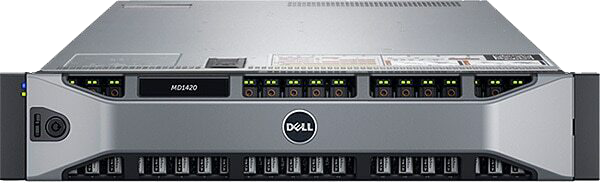

Dell PowerVault MD1420

Tech Specs

• Base:
  PowerVault MD142
• Drives:
  Up to 24 hot-pluggable 2.5” drives
• Drive Performance & Capacities:
  2.5” NL-SAS, SAS and SSD drives
• Max Capacity Per Enclosure:
  Up to 57.6TB when using 24 x 2.4TB NL-SAS 2.5” HDDs
• Expansion Capabilities:
  PERC H830/H840 HBA enables expansion to 8 enclosures, PCIe 3.0, 12Gbps SAS, dual -port, 4 ports per enclosure
• Host Connectivity:
  Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H830/H840 (4 enclosures per port, single path) Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H830 (4 enclosures connected to both ports via redundant path cabling)
• Enclosure Management Modules (EMM):
  2 EMM provide redundant enclosure management capability
• RAID Levels:
  0, 1, 5, 6, 10, 50, 60
• Connectivity:
  4 mini-SAS HD connector for connection to the host or expansion
• Service Management:
  USB mini-B connector (for factory use only)
• Power:
  AC - 600W; DC - 700W
• Host Heat Dissipation:
  AC - 2047BTU/hr.; DC - 2388BTU/h
• Input Voltage Range:
  100-240V AC, auto-sensing; 48V DC
• Frequency Range:
  50/60Hz
• Amperage:
  8.6A at 100V, 4.3A at 240V
• Supported Continuous Consumption (Per Slot):
  Up to 1.2A at +5V
  Up to 0.5A at +12V
• Rack Support:
  Dell ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks
• Dimensions:
  H: 8.7 cm (3.43”)
  W: 48.2 cm (18.98”)
  D: 53.9 (21.22”) depth includes PSU
• Weight:
  24.2 kg (53.35 lb) (maximum configuration)
  8.8 kg (19.4 lb) (empty)
• Temperature:
  Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour
  Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour
• Relative Humidity:
  Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour
  Storage: 5% to 95% (non-condensing)
• Altitude:
  Operating: -16 to 3048 m (-50 to 10,000 ft)
  Storage: -16 to 10,600 m (-50 to 35,000 ft)
