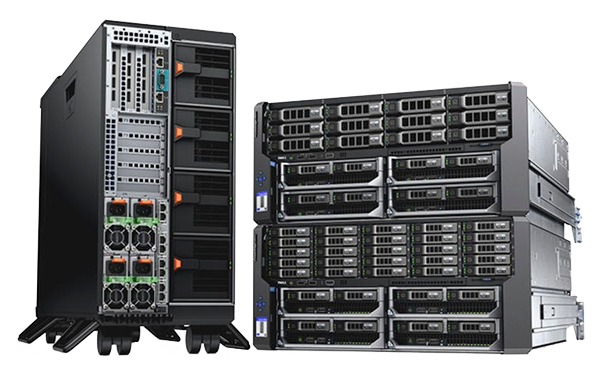

Dell PowerEdge VRTX

Transform your business with a data center under your desk.

Dell PowerEdge VRTX integrates servers, storage, networking and management into a single office-optimized chassis. Increase efficiency by eliminating disparate hardware and multiple management tools with the scalable and easy-tomanage VRTX platform.

Blade Qty: 4 half height or 2 full height
HDD: 2.5" or 3.5" Hot Swap SAS, SAS SSD, and Near Line SAS

RAID: Single shared PERC8 with optional second redundant shared PERC8

Fans: 6 hot-pluggable
Connectivity: 1GbE/10GbE internal switch with 16 internal 1GbE and 8 external ports
Remote: iKVM, Single or Redundant CMC
Power: 2+2 (AC redundancy), and 3+1 and 2+1 (power supply redundancy) modes

Adapt and scale with an expandable,

versatile platform

The PowerEdge VRTX was designed for remote-office and small-office environments with ”under your desk” dimensions and quiet acoustics. The PowerEdge VRTX is built on a scalable business architecture so you can continually optimize your capacity and performance with future-proof compute, storage and networking options within a single chassis.

Benefits of the PowerEdge VRTX Tower & Rack

Scale as you grow, with up to four PowerEdge blade servers and 12 x 3.5” or

25 x 2.5” HDD within its compact chassis.

Mix and match the 2-socket, half-height PowerEdge M630 & M640 and 4-socket, full-height M830 based on workload requirements.

Easily add more storage by connecting up to 4 MD1200 or MD1220 disk arrays in redundant or capacity based configurations.

Integrate networking through the 10GbE or 1GbE internal switch module or an optional 1Gb Ethernet pass-through module.

Take advantage

of flexible and

expandable I/O with

eight PCIe slots.

Keep operating expenses in check with energy efficient Fresh Air validated configurations and standard power requirements.


Built on Scalable Business Architecture

Choose the VRTX Nodes that works best for your business growth:

Dell PowerEdge VRTX Tower & Rack

Blade Qty: 4 half height or 2 full height
Fans: 6 hot-pluggable
Connectivity: 1GbE/10GbE int. switch
Remote: iKVM, Single or CMC
Power: 2+2 and 3+1 and 2+1 modes

Dell PowerEdge M830

CPU(s): Intel® Xeon® E5-2600
Memory: Up to 768GB (24 DIMM Slots)
RAID: PERC S110, H310, H710, H710P
HDD: Up to 2 2.5” PCIe SSD, SATA or SAS
Power: Supplied by M1000e Chassis

Dell PowerEdge 640

CPU(s): Intel® Xeon® E5-2600
Memory: Up to 768GB (24 DIMM Slots)
RAID: PERC S110, H310, H710, H710P
HDD: Up to 2 2.5” PCIe SSD, SATA or SAS
Power: Supplied by M1000e Chassis

Dell PowerEdge M630

CPU(s): 2 x Intel E5-26xx Multi-Core
Memory: 24 DIMM Slots (Max 768GB)
RAID: PERC H330, H730, H730P
HDD: 2.5" Hot Swap SAS, SATA & NL SAS

Power: Supplied by M1000e Chassis
