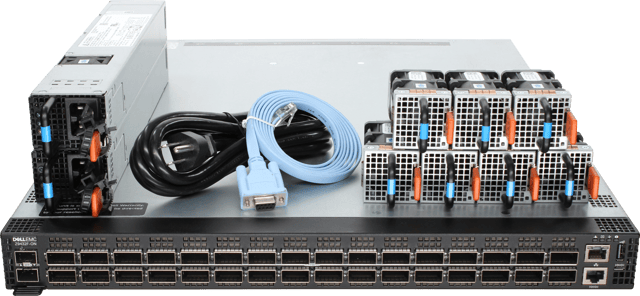

Dell Networking Z9432F-ON Switch

Tech Specs

• Switches:
  Z9432F, 32x 400GbE QSFP56-DD, 2x AC PSU, Fan module, I/O Panel to PSU Airflow
  Z9432F, 32x 400GbE QSFP56-DD, 2x AC PSU, Fan module, PSU to I/O Panel Airflow
• Physical:
  Physical
  1 RJ45 console/management port with RS232 signaling and Micro USB-B port
  1 10/100/1000BASE-T Ethernet for management
  1 USB 2.0 type A storage port 32x400GbE QSFP56-DD ports + 2xSFP+ 10GbE
  Chassis
  Size: 1 RU, 43 x 438 x 550 mm (1.72 x 17.3 x 21.7 inches)
  Weight: 9.98 kg (22 lbs)
• Redundancy:
  Hot swappable redundant power (2 per switch, 1 + 1 redundancy except with using lowline power)*
  Hot swappable redundant fans (7 per switch, 6 + 1 redundancy)
• Performance:
  Switch fabric capacity: 25.6Tbps (full duplex)
  Forwarding capacity: 5.2Bpps
  Latency: sub 850ns
  Packet buffer memory: 132MB
  NPU Pipeline is programmable capable using NPL
  CPU: Intel Denverton C3758 8 Core @ 2.2GHz
  CPU memory: 32GB DDR4 ECC
  MAC addresses: 156K
  ARP table: 16K standalone, 8K shared
  IPv4 routes: up to 400K (ALPM)
  IPv6 routes: 300K
  Multicast hosts: 1K
  Multicast IPv6 Routes: 4K
  Layer 2 VLANs: 4K
  MSTP: 64 instances
  LAG load balancing: Based on layer 2, IPv4 or IPv6 headers
  Timing Card PTP/1588 and Sync-E
  Trusted Platform Module
  Supports up to 4 ports of 20W optics when in IO/PSU airflow direction
  Supports up to 15W optics in all QSFP56-DD ports
• Transceiver Optics (Optional):
  400GbE, 400G-Q56DD-SR8, QSFP56-DD
  400GbE, 400G-Q56DD-LR4, QSFP56-DD
  400GbE, 400G-Q56DD-LDR4, QSFP56-DD
  400GbE, 400G-Q56DD-FR4, QSFP56-DD
  400GbE, 400G-Q56DD-VR4, QSFP56-DD
  400GbE, 400G-Q56DD-EDR4, QSFP56-DD
  400GbE, 400G-Q56DD-SR4.2-ON, QSFP56-DD
  200GbE, Q56-200G-SR4, QSFP56
  2x100GbE, 2xSR4, QSFP28-DD
  2x100GbE, 2xPSM4-IR, QSFP28-DD
  2x100GbE, 2xCWDM4, QSFP28-DD
  2x100GbE/40GbE, Q28DD-80G-2SR4
  2x100GbE/40GbE, Q28DD-200G-2SR4
  100GbE, ER4-lite QSFP28
  100GbE, ESR4 QSFP28
  100GbE, SR4 QSFP28
  100GbE, SR1.2 QSFP28
  100GbE, PSM4 (500m) QSFP28
  100GbE, PSM4-10 QSFP28
  100GbE, PSM4-IR QSFP28
  100GbE, CWDM4 (2Km) QSFP28
  100GbE, SWDM4 (2Km) QSFP28
  100GbE, LR1 QSFP28
  100GbE, LR4 QSFP28
  100GbE, FR QSFP28
  100GbE, QSA-QSFP28-SFP28
  40GbE, SR4 optic QSFP+
  40GbE, ESR4 optic QSFP+
  40GbE, BIDI optic QSFP+ (Duplex)
  40GbE, SM4 optic QSFP+ (Duplex)
  40GbE, LM4 optic QSFP+ (Duplex)
  40GbE, PSM4-LR 10Km, QSFP+
  40GbE, LR4 optic QSFP+
  40GbE, ER4 optics QSFP+
  25GbE, ESR, SFP28
  25GbE, SR, NOF SFP28
  25GbE, LR, SFP28
  10GbE, SR SFP+, short reach
  10GbE, LR SFP+, long reach
  10GbE, ER SFP+, extended reach
  10GbE, ZR SFP+ extra extended reach 10G,
  10GBASE-T use with QSA in QSFP+ port, 30m reach on CAT6a/7

• Environmental:
  Power supply: 100-240 VAC 50/60H*
  Max Power consumption: 1404 Watts
  Typ. Power consumption: 900 Watts
  Max Operating specifications:
  AC max. operating specifications: Operating temperature: 0° to 45°C (32° to 113°F)
  Operating humidity: 5 to 90% (RH), non-condensing
  Max. non-operating specifications:
  Storage temperature: –40° to 70°C (–40° to 158°F)
  Storage humidity: 5 to 95% (RH), non-condensing
  Fresh air compliant to 45°C
  Support AC both lowline and highline power modes

• Safety and emissions:
  Safety
  UL/CSA 60950-1, Second Edition
  EN 60950-1, Second Edition
  IEC 60950-1, Second Edition Including All National Deviations and Group Differences
  EN 60825-1 Safety of Laser Products Part 1: Equipment Classification Requirements and User’s Guide
  EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communication Systems
  FDA Regulation 21 CFR 1040.10 and 1040.11
  Emissions
  Australia/New Zealand: AS/NZS CISPR 22: 2006, Class A
  Canada: ICES-003, Issue-4, Class A
  Europe: EN 55022: 2006+A1:2007 (CISPR 22: 2006), Class A
  Japan: VCCI V3/2009 Class A
  USA: FCC CFR 47 Part 15, Subpart B: 2011, Class A
  Immunity
  EN 300 386 V1.4.1:2008 EMC for Network Equipment
  EN 55024: 1998 + A1: 2001 + A2: 2003
  EN 61000-3-2: Harmonic Current Emissions
  EN 61000-3-3: Voltage Fluctuations and Flicker
  EN 61000-4-2: ESD
  EN 61000-4-3: Radiated Immunity
  EN 61000-4-4: EFT
  EN 61000-4-5: Surge
  EN 61000-4-6: Low Frequency
  Conducted Immunity
• RoHS:
  All Z Series components are EU RoHS compliant
