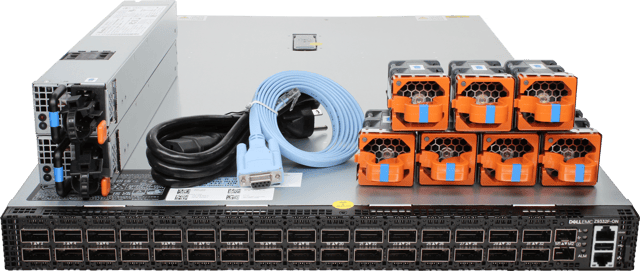

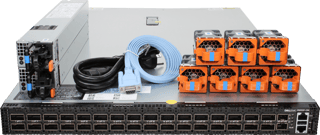

Dell Networking Z9332F-ON Switch

Tech Specs

• Switches:
  Z9332F, 32x 400GbE QSFP56-DD, 2x AC PSU, Fan module, I/O Panel to PSU Airflow, OS10 Enterprise Edition
  Z9332F, 32x 400GbE QSFP56-DD, 2x AC PSU, Fan module, PSU to I/O Panel Airflow, OS10 Enterprise Edition
• Physical:
  1 RJ45 console/management port with RS232 signaling
  1 10/100/1000BASE-T Ethernet for management
  1 USB 2.0 type A storage port
  32x400GbE QSFP56-DD ports + 2xSFP+ 10GbE
  Chassis
  Size: 1 RU, 1.73”h x 17.3”w x 25.8”d (4.38h x 43.8w x 6.56d)
  Weight: 22 lbs (9.98 kg)
• Redundancy:
  Hot swappable redundant power (2 per switch)
  Hot swappable redundant fans (7 per switch)
• Performance:
  Switch fabric capacity: 25.6Tbps (full duplex)
  Forwarding capacity: up to 5.1Bpps
  Latency: sub 700ns
  Packet buffer memory: 64MB
  CPU memory: 32GB
  MAC addresses: 8K
  ARP table: 16K standalone, 8K shared
  IPv4 routes: up to 400K (ALPM)
  IPv6 routes: 300K
  Multicast hosts: 1K
  Multicast IPv6 Routes: 4K
  Layer 2 VLANs: 4K
  MSTP: 64 instances
  LAG load balancing: Based on layer 2, IPv4 or IPv6 headers
• Transceiver Optics (Optional):
  Transceiver, 400GbE, SR8 QSFP56-DD
  Transceiver, 400GbE, SR4.2 QSFP56-DD
  Transceiver, 400GbE, eDR4 (2 km) QSFP56-DD
  Transceiver, 400GbE, FR4 QSFP56-DD
  Transceiver, 400GbE, LR4 QSFP56-DD
  Transceiver, 400GbE, ZR1 QSFP56-DD
  Transceiver, 100GbE, FR1 QSFP28
  Transceiver, 100GbE, SR4 QSFP28
  Transceiver, 100GbE, eSR4 QSFP28
  Transceiver, 100GbE, SWDM4 QSFP28 (Duplex)
  Transceiver, 100GbE, BiDi QSFP28 (Duplex)
  Transceiver, 100GbE, BiDi-ON QSFP28 (Duplex)
  Transceiver, 100GbE, PSM4 (500 m) QSFP28
  Transceiver, 100GbE, CWDM4 (2 km) QSFP28
  Transceiver, 100GbE, LR4 QSFP28
  Transceiver, 100GbE, ER4 Lite (30 km) QSFP28
• Cables (Optional):
  400GbE, QSFP56-DD to QSFP56-DD, active optical
  400GbE, QSFP56-DD to QSFP56-DD, passive DAC
  400GbE, QSFP56-DD to QSFP56-DD, active DAC
  400GbE, 400GbE, 4x100GbE, QSFP56-DD to 4xQSFP28, active DAC
  100GbE, 4x25GbE, QSFP28 to 4xSFP28, passive DAC
  100GbE, QSFP28 to QSFP28, active optical
  100GbE, QSFP28 to QSFP28, passive DAC
• Environmental:
  Power supply: 200-240 VAC 50/60 Hz
  Max Power consumption: 1500 Watts
  Typ. Power consumption: 900 Watts
  Max Operating specifications:
  AC Max. Operating specifications:
  Operating temperature: 32° to 113°F (0° to 45°C)
  Operating humidity: 10 to 90% (RH), non-condensing
  Max. Non-operating specifications:
  Storage temperature: –40° to 158°F (–40° to 70°C)
  Storage humidity: 5 to 95% (RH), non-condensing
  Fresh air Compliant to 45°C
• Safety and emissions:
  Safety
  UL/CSA 60950-1, Second Edition
  EN 60950-1, Second Edition
  IEC 60950-1, Second Edition Including All National Deviations and Group Differences
  EN 60825-1 Safety of Laser Products Part 1:
  Equipment Classification Requirements and User’s Guide
  EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communication Systems
  FDA Regulation 21 CFR 1040.10 and 1040.11
  Emissions
  Australia/New Zealand: AS/NZS CISPR 22: 2006, Class A
  Canada: ICES-003, Issue-4, Class A
  Europe: EN 55022: 2006+A1:2007 (CISPR 22: 2006), Class A
  Japan: VCCI V3/2009 Class A
  USA: FCC CFR 47 Part 15, Subpart B: 2011, Class A
  Immunity
  EN 300 386 V1.4.1:2008 EMC for Network Equipment
  EN 55024: 1998 + A1: 2001 + A2: 2003
  EN 61000-3-2: Harmonic Current Emissions
  EN 61000-3-3: Voltage Fluctuations and Flicker
  EN 61000-4-2: ESD
  EN 61000-4-3: Radiated Immunity
  EN 61000-4-4: EFT
  EN 61000-4-5: Surge
  EN 61000-4-6: Low Frequency
  Conducted Immunity
• RoHS:
  All Z Series components are EU RoHS compliant.
