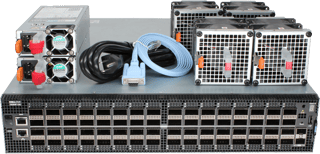

Dell Networking Z9264F-ON Switch

Tech Specs

• Switches:
  Z9264F, 64x 100GbE QSFP28, 2x AC PSU, Fan module, I/O Panel to PSU Airflow, OS10 Enterprise Edition
  Z9264F, 64x 100GbE QSFP28, 2x AC PSU, Fan module, PSU to I/O Panel Airflow, OS10 Enterprise Edition
• Physical:
  1 RJ45 console/management port with RS232 signaling
  64x100GE QSFP28 ports + 2xSFP+ 10GE
  Chassis
  Size: 2 RU, 337” (h) x 17.04” (w) x 20.08” (d) (8.56h x 44.2w x 51.0 cm d)
  Weight: 44lbs (20kg)
• Redundancy:
  Hot swappable redundant power supplies
  Hot swappable redundant fans
• Performance:
  Switch fabric capacity: 12.8Tbps (full-duplex)
  Forwarding capacity: 2900Mpps for 64250 bytes
  Latency: sub 500ns
  Packet buffer memory: 42MB
  CPU memory: 16GB
  MAC addresses: 160K
  ARP table: 128K
  IPv4 routes: 128K
  IPv6 routes: 64K
  Multicast hosts: 32K
  Link aggregation: 64 links per group, 128 groups
  Layer 2 VLANs: 4K
  MSTP: 64 instances
  LAG load balancing: Based on layer 2, IPv4 or IPv6 headers
• Cables (Optional):
  100GbE, 4x25GbE, QSFP28 to 4xSFP28, passive DAC
  100GbE, QSFP28 to QSFP28, active optical
  100GbE, QSFP28 to QSFP28, passive DAC
  100GbE, 2x50GbE, QSFP28 to 2xQSFP28, passive DAC
  40GbE, QSFP+ to QSFP+, active optical
  40GbE, QSFP+ to QSFP+, passive DAC
  40GbE, MTP to 4xLC optical breakout
  40GbE, 4x10GbE, QSFP+ to 4xSFP+, passive DAC


• Transceiver Optics (Optional):
  100GbE, ER4-lite QSFP28
  100GbE, ESR4 QSFP28
  100GbE, SR4 QSFP28
  100GbE, SR1.2 QSFP28
  100GbE, PSM4 (500m) QSFP28
  100GbE, PSM4-10 QSFP28
  100GbE, PSM4-IR QSFP28
  100GbE, CWDM4 (2Km) QSFP28
  100GbE, LR4 QSFP28
  100GbE, FR QSFP28
  100GbE, QSA-QSFP28-SFP28
  40GbE, SR4 optic QSFP+
  40GbE, ESR4 optic QSFP+
  40GbE, BIDI optic QSFP+ (Duplex)
  40GbE, SM4 optic QSFP+ (Duplex)
  40GbE, LM4 optic QSFP+ (Duplex)
  40GbE, PSM4-LR 10Km, QSFP+
  40GbE, LR4 optic QSFP+
  25GbE, ESR, SFP28
  25GbE, SR, NOF SFP28
  25GbE, LR, SFP28
  10GbE, SR SFP+, short reach
  10GbE, LR SFP+, long reach
  10GbE, ER SFP+, extended reach
  10GbE, ZR SFP+ extra extended reach 10G,
  10GBASE-T use with QSA in QSFP+ port, 30m reach on CAT6a/7

• Environmental:
  Power supply: 100–240 VAC 50/60 Hz
  Max Power consumption: 750 Watts
  Typ. Power consumption: 340 Watts
  Max Operating specifications:
  AC Max. Operating specifications:
  Operating temperature: 32° to 113°F (0° to 45°C)
  Operating humidity: 10 to 90% (RH), noncondensing
  Max. Non-operating specifications:
  Storage temperature: –40° to 158°F (–40° to 70°C)
  Storage humidity: 5 to 95% (RH), non-condensing
  Fresh air Compliant to 45°C
• Safety and emissions:
  Safety
  UL/CSA 60950-1, Second Edition
  EN 60950-1, Second Edition
  IEC 60950-1, Second Edition Including All National Deviations and Group Differences
  EN 60825-1 Safety of Laser Products Part 1: Equipment Classification Requirements and User’s Guide
  EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communication Systems
  FDA Regulation 21 CFR 1040.10 and 1040.11 Emissions
  Australia/New Zealand: AS/NZS CISPR 22: 2006, Class A
  Canada: ICES-003, Issue-4, Class A
  Europe: EN 55022: 2006+A1:2007 (CISPR 22: 2006), Class A
  Japan: VCCI V3/2009 Class A
  USA: FCC CFR 47 Part 15, Subpart B:2011, Class A Immunity
  EN 300 386 V1.4.1:2008 EMC for Network Equipment
  EN 55024: 1998 + A1: 2001 + A2: 2003
  EN 61000-3-2: Harmonic Current Emissions
  EN 61000-3-3: Voltage Fluctuations and Flicker
  EN 61000-4-2: ESD
  EN 61000-4-3: Radiated Immunity
  EN 61000-4-4: EFT
  EN 61000-4-5: Surge
  EN 61000-4-6: Low Frequency Conducted Immunity

• RoHS:
  All Z Series components are EU RoHS compliant
