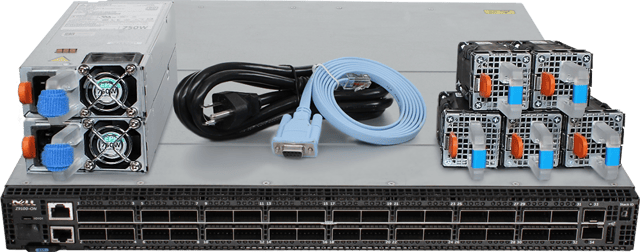

Dell Networking Z9100-ON Switch

Tech Specs

• Switches:
  AC base normal airflow
  32-port 100G QSFP28, 2 AC PS, 5 fan subsys w/ airflow from I/O PNL to PS
  AC base reverse airflow
  32-port 100G QSFP28, 2 AC PS, 5 fan subsys w/ airflow from PS to I/O PNL
• Physical:
  Compact full featured fixed 10/25/40/100GE switch
  1 RJ45 console/management port with RS232 signaling
  1 10/100/1000bT Ethernet for management
  1 USB 2.0 type A storage port
  1 micro USB type B port for console/management port access
  2 SFP+ 10GbE/1GbE ports for data access
  Size: 1 RU, 1.72”h x 17.1”w x 18”d
  Weight: 22 lbs (9.98 kg)
  Power supply: 100–240 VAC 50/60 Hz
  Max. power consumption: 605 Watts
  Typ. power consumption: 195 Watts
  Max. operating specifications:
  Operating temperature: 32°F to 113°F (0°C to 45°C)
  Operating humidity: 10 to 90% (RH), non- condensing
  Max. non-operating specifications:
  Storage temperature: –40°F to 158°F (–40°C to 70°C)
  Storage humidity: 5 to 95% (RH), non- condensing
  Fresh Air Compliant to 45°C
  ReadyRails rack mounting system, no tools required
• Redundancy:
  Two hot swappable power supplies with integrated fans
  Hot swappable redundant fans
• Performance:
  Switching I/O bandwidth: 6.4Tbps (Full Duplex)
  Forwarding capacity: Up to 3300 Mpps
  MAC addresses: 136K
  IPv4 Unicast routes: 136K
  IPv6 Unicast routes: 68K
  IPv4 Multicast routes: 68K
  IPv6 Multicast routes: Not supported
  Multicast Hosts: 8K
  ARP entries: 128K
  Layer 2 VLANs: 4K per port
  Layer 3 VLANs: Standalone 1K/VLT 4K MST: 64 instances
  PVST+: 128 instances
  LAG: 128 groups, 16 members per LAG group
  LAG load balancing:
  Based on layer 2, IPv4 or IPv6 headers
  Latency: Sub 500ns
  Packet buffer memory: 16MB
  CPU memory: 8GB
  QOS data queues: 8
  QOS control queues: 12
  QOS: Default 1024 entries scalable to 2.5K
  ACL Support: 3K

• Transceiver Optics (Optional):
  100GbE, ER4-lite QSFP28
  100GbE, ESR4 QSFP28
  100GbE, SR4 QSFP28
  100GbE, PSM4 (500m) QSFP28
  100GbE, PSM4-10 QSFP28
  100GbE, PSM4-IR QSFP28
  100GbE, CWDM4 (2Km) QSFP28
  100GbE, SWDM4 (2Km) QSFP28
  100GbE, LR4 QSFP28
  100GbE, FR QSFP28
  100GbE, QSA-QSFP28-SFP28
  40GbE, SR4 optic QSFP+
  40GbE, ESR4 optic QSFP+
  40GbE, BIDI optic QSFP+ (Duplex)
  40GbE, SM4 optic QSFP+ (Duplex)
  40GbE, LM4 optic QSFP+ (Duplex)
  40GbE, PSM4-LR 10Km, QSFP+
  40GbE, LR4 optic QSFP+
  25GbE, ESR, SFP28
  25GbE, SR, NOF SFP28
  25GbE, LR, SFP28
  10GbE, SR SFP+, short reach
  10GbE, LR SFP+, long reach
  10GbE, ER SFP+, extended reach
  10GbE, ZR SFP+ extra extended reach 10G,
  10GBASE-T use with QSA in QSFP+ port, 30m reach on CAT6a/7

• Cables (Optional):
  100GbE, 4x25GbE, QSFP28 to 4xSFP28, passive DAC
  100GbE, QSFP28 to QSFP28, active optical
  100GbE, QSFP28 to QSFP28, passive DAC
  100GbE, 2x50GbE, QSFP28 to 2xQSFP28, passive DAC, breakout 40GbE, QSFP+ to QSFP+, active optical
  40GbE, QSFP+ to QSFP+, passive DAC
  40GbE, MTP to 4xLC optical breakout 40GbE, 4x10GbE, QSFP+ to 4xSFP+, passive DAC
  Cable management
  Z9100 Cable Breakout Kit, MTP to LC (1RU 64-port LC over MMF)
  Z9100 Cable Breakout Kit, MTP to LC (1RU 64-port LC over SMF)
  Z9100 Cable Breakout Kit, MTP to LC (1RU 48-port LC over MMF)
• Safety and emissions:
  Safety
  UL/CSA 60950-1, Second Edition
  EN 60950-1, Second Edition
  IEC 60950-1, Second Edition Including All National Deviations and Group Differences
  EN 60825-1 Safety of Laser Products Part 1: Equipment Classification Requirements and User’s Guide
  EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communication Systems
  FDA Regulation 21 CFR 1040.10 and 1040.11 Emissions
  Australia/New Zealand: AS/NZS CISPR 22: 2006, Class A
  Canada: ICES-003, Issue-4, Class A
  Europe: EN 55022: 2006+A1:2007 (CISPR 22: 2006), Class A
  Japan: VCCI V3/2009 Class A
  USA: FCC CFR 47 Part 15, Subpart B:2011, Class A Immunity
  EN 300 386 V1.4.1:2008 EMC for Network Equipment
  EN 55024: 1998 + A1: 2001 + A2: 2003
  EN 61000-3-2: Harmonic Current Emissions
  EN 61000-3-3: Voltage Fluctuations and Flicker
  EN 61000-4-2: ESD
  EN 61000-4-3: Radiated Immunity
  EN 61000-4-4: EFT
  EN 61000-4-5: Surge
  EN 61000-4-6: Low Frequency Conducted Immunity
• RoHS:
  All Z Series components are EU RoHS compliant
