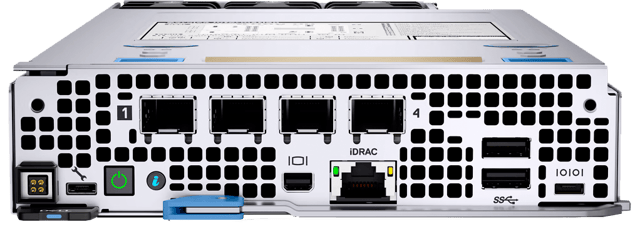

Dell PowerEdge XR4510c Server Node

Tech Specs

• Processor:
  1 x 3rd Generation Intel Xeon D Scalable processor with up to 20 cores
• Memory:
  4 x DDR4 DIMM slots, supports RDIMM 256 GB max and LRDIMM 512 GB max, with speeds up to 2933 MT/s
  Supports registered ECC DDR4 DIMMs only
• Storage Controllers:
  Internal boot: Boot Optimized Storage Subsystem (BOSS-N1): 2 x M.2 SSDs 480 GB or 960 GB, USB
• Storage:
  8 x M.2 NVMe SSDs on PCIe Add-in card
• Chassis:
  Up to four independent, 2U single-width, 1-processor server sleds in an XR4000r chassis
  Up to two independent, 2U single-width, 1-processor server sleds in an XR4000z chassis
• Power Supplies:
  1100W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
• Fans:
  Up to 3 Standard (STD) cabled cooling fans with reverse and normal air-flow
• Dimensions and Weight:
  Height: 41.25 mm (1.62 inches)
  Width: 167.2 mm (6.58 inches)
  Depth: 342.5 mm (13.48 inches)
  Weight: 2.46 kg (5.42 pounds)
• Embedded Management:
  iDRAC9
  iDRAC Direct
  iDRAC RESTful API with Redfish
  iDRAC Service Module
  NativeEdge Endpoint Orchestrator
• OpenManage Software:
  OpenManage Enterprise
  OpenManage Power Manager plugin
  OpenManage Service plugin
  OpenManage Update Manager plugin
• OpenManage Integrations:
  BMC Truesight
  Microsoft System Center
  OpenManage Integration with ServiceNow
  Red Hat Ansible Modules
  Terraform Providers
  VMware vCenter and vRealize Operations Manager
• Security:
  Cryptographically signed firmware
  Secure Boot
  Secure Erase
  Silicon Root of Trust
  System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
