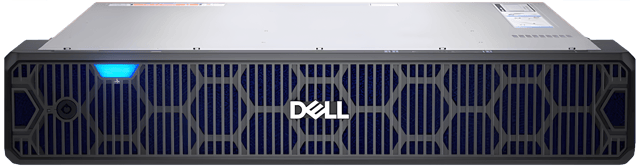

Dell PowerEdge XR4000r Chassis

Tech Specs

• Processor:
  1 x 3rd Generation Intel Xeon D Scalable processor with up to 20 cores
• Memory:
  4 x DDR4 DIMM slots, supports RDIMM 256 GB max and LRDIMM 512 GB max, with speeds up to 2933 MT/s
  Supports registered ECC DDR4 DIMMs only
• Storage Controllers:
  Internal boot: Boot Optimized Storage Subsystem
  (BOSS-N1): 2 x M.2 SSDs 480 GB or 960 GB, USB
• Storage:
  8 x M.2 NVMe SSDs on PCIe Add-in card (XR4520c)
  4 x M.2 NVMe SSDs on M.2 riser module
• Sleds:
  XR4510c, XR4520c and optional XR4000w
• Power Supplies:
  1800W Platinum 200-240 VAC or 240 HVDC, hot swap redundant
  1400W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
  1100W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
  100W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
  1100W DC/ -48-(-60) V
• Fans:
  Up to 3 Standard (STD) cabled cooling fans with reverse and normal air-flow in XR4510c and XR4520c sleds
• Dimensions and Weight:
  Height: 87.05 mm (3.42 inches)
  Width: 434 mm (17.08 inches)
  Depth: 455.05 mm (17.91 inches) with bezel
  375.28 mm (14.77 inches) without bezel
  Weight: 19.14 kg (42.20 pounds)
• Bezel:
  Security bezel
• Embedded Management:
  iDRAC9
  iDRAC Direct
  iDRAC RESTful API with Redfish
  iDRAC Service Module
  NativeEdge Endpoint Orchestrator
• OpenManage Software:
  OpenManage Enterprise
  OpenManage Power Manager plugin
  OpenManage Service plugin
  OpenManage Update Manager plugin
• OpenManage Integrations:
  BMC Truesight
  Microsoft System Center
  OpenManage Integration with ServiceNow
  Red Hat Ansible Modules
  Terraform Providers
  VMware vCenter and vRealize Operations Manager
• Security:
  Cryptographically signed firmware
  Secure Boot
  Secure Erase
  Silicon Root of Trust
  System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
