Dell Networking X1052P Switch

  • From: $475
100% Satisfaction Guarantee - The xByte Difference
  • 100% Dell Original Components
  • 14 Day Money Back Guarantee
  • Dell Engineer Approved

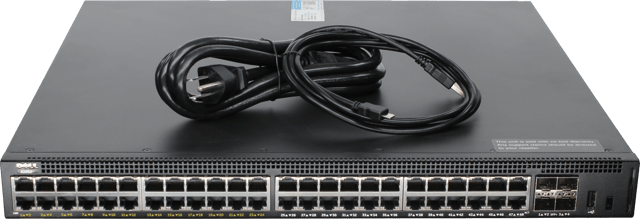

Image of Dell Networking X1052P Switch
  • Ports:10/100/1000 Base-T
  • Primary Port Quantity:48 ports
  • Uplink Ports:1/10GbE SFP+
  • Uplink Port Quantity:4 ports
  • Hot-swappable AC Power Supply:Fixed, Internal Power Supply
  • Networking Model:X1052P
  • Airflow:Standard Airflow
  • PoE:YES
  • Power Supply:Internal
  • Ports:BASET1
  • Uplink Ports:SFPPLUS
  • PoE:YES
  • Transceivers:Not Available
SKU: >X1052P

Videos

Resources

Tech Specs

  • Base:
    Dell X1000 Series
  • Transceivers:
    SFP, 1000BASE-T
    SFP, 1000BASE-SX, 850nm wavelength, up to 550m
    SFP, 1000BASE-LX, 1310nm wavelength, up to 10km
    SFP, 1000BASE-ZX, 1550nm wavelength, up to 80km
    SFP+, 10GbE, USR, 850nm wavelength, up to 100m
    SFP+, 10GbE, SR, 850nm wavelength, up to 300m
    SFP+, 10GbE, LR, 1310nm wavelength, up to 10km
    SFP+, 10GbE, ER, 1550nm wavelength, up to 40km
  • Cables:
    Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 0.5m, 1m, 3m, 5m and 7m*
    *X4012 does not support 7m cable
  • VLAN:
    Supports up to 4096 port-based VLANs. Honors 4096 tags
  • Optional Tandem Tray Mounting Kit:
    1RU tray to accommodate two half rack width X-series switches (kit includes L-brackets for 800mm deep rack/cabinet)
    Size (1RU, H x W x D): 1.7in x 17.7in x 19.1in (43.7mm x 449.4mm x 486.4mm)
    Approximate weight: 8.3lbs (3.8kg)
  • Port Attributes:
    Supports Virtual Cable Diagnostics by Marvell™ and fiber transceiver diagnostics
    Integrated LEDs for improved visual monitoring and analysis
  • Quality of Service:
    Honor 802.1p values and honor IP DSCP values Supports strict priority and configurable weighted round robin (WRR) scheduling across queues
  • Link Aggregation:
    Industry-standard link aggregation adhering to IEEE 802.3ad standards (static and dynamic, LACP)
    Supports 12 link aggregation groups and up to 8 ports per group
  • Management:
    Web based GUI management
    Local password and restricted IP addresses
    Port mirroring
    Internal DHCP Server
    DHCP client support
    Port statistics available through industry-standard RMON
    Jumbo frame support for packets up to 9,000 bytes
    Broadcast storm control
    Uploadable switch software via USB
    Uploadable configurations via USB
    Configurable as web-managed switch
