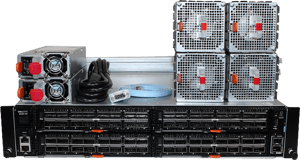

Dell Networking S6100-ON Switch

Tech Specs

• Base:
  Dell S6100 Series Switches
• Switch Features:
  4AC base normal airflow: 32-port 100G QSFP+, 4 slots, 2 AC PS, 5 fan subsys w/ airflow from I/O PNL to PS.
  Product number: 210-AFRS

  AC base reverse airflow: 32-port 100G QSFP+, 4 slots, 2 AC PS, 5 fan subsys w/ airflow from PS to I/O PNL.
  Product number: 210-AFRR
• Physical:
  Compact full featured modular 10/25/40/100GE switch with four I/O module slots.
  Following I/O modules are supported in each empty slot
  1. 16x40GE QSFP+ I/O module
  2. 8x100GE QSFP28 I/O module
  3. 4x100GE CXP and 4x100GEQSFP28 IO module
  1 RJ45 console/management port with RS232 signaling
  1 10/100/1000bT Ethernet for management
  1 USB 2.0 type A storage port
  1 micro USB type B port for console/management port access
  2 SFP+ 10GbE/1GbE ports for data access
  Chassis
  Size: 2 RU, 17.08”w x 18”d x 3.5”h
  Weight: Base with 2 PSU and Fans: 34 lbs (15.42kg)
  Add 4 IO modules : 44lbs (20kg)
• Fans:
  Fan spare normal airflow
  Fan with airflow I/O PNL to PS PNL
  Fan spare reverse airflow
  Fan with airflow from PS PNL to I/O PNL
• Power Supplies:
  AC PS spare normal airflow
  AC power supply with airflow from I/O PNL to PS
  AC PS spare reverse airflow
  AC power supply with airflow from PS to I/O PNL
  DC PSU spare normal airflow
  DC PSU with airflow from I/O PNL to PSU
  DC PSU spare reverse airfllow DC PSU with airflow from PSU to I/O PN
• Performance:
  Switching I/O bandwidth: 6.4Tbps
  Forwarding capacity: Up to 4400 Mpps (Full Duplex)
  MAC addresses: 160K
  IPv4 Unicast routes: 128K
  IPv6 Unicast routes: 64K
  IPv4 Multicast routes: 64K
  IPv6 Multicast routes: 32K
  Multicast Hosts: 8K
  ARP entries: 128K
  Layer 2 VLANs: 4K per port
  Layer 3 VLANs: 512 per system
  MST: 64 instances
  PVST+: 128 instances
  LAG: 128 groups, 16 members per LAG group
  LAG load balancing: Based on layer 2, IPv4 or IPv6 headers
  Latency: L2: 300ns, L3: 400ns
  Packet buffer memory: 16MB
  CPU memory: 8GB
  QOS data queues: 8
  QOS control queues:12
  QOS: Default 768 entries scalable to 2.5K
  ACL Support: 3K

• Transceiver Optics:
  100GbE, SR4 QSFP28
  100GbE, LR4 QSFP28
  100GbE, LR4Lite QSFP28
  100GbE, PSM4 10Km QSFP28
  100GbE, CWDM4 2Km QSFP28
  100GbE, PSM4 500m QSFP28
  100GbE, CXP SR10
  40GbE, SR4 optic QSFP+
  40GbE, eSR4 optic QSFP+
  40GbE, LR4 optic QSFP+
  40GbE, PSM4 10Km, QSFP+
  40GbE, PSM4-LR MPO 10Km QSFP+ to LC
  40GbE, LM4 / SM4 Duplex QSFP+
  1GbE BiDi BX10-UP and DOWN, 10Km, SMF, LC
  1GbE BiDi BX40-UP and DOWN, 40Km, SMF, LC
  1GbE BiDi BX80-UP and DOWN, 80Km, SMF, LC
  1/10GBase-T, with QSA adaptor provides 10GbE for 30m over CAT5e/CAT6A/CAT7 UTP
• Cables:
  100GbE, 4x25GbE, QSFP28 to 4xSFP28, passive DAC
  100GbE, QSFP28 to QSFP28, active optical
  100GbE, QSFP28 to QSFP28, passive DAC
  100GbE, 2x50GbE, QSFP28 to 2xQSFP28, passive DAC, breakout
  40GbE, QSFP+ to QSFP+, active optical
  40GbE, QSFP+ to QSFP+, passive DAC
  40GbE, MTP to 4xLC optical breakout
  40GbE, 4x10GbE, QSFP+ to 4xSFP+, passive DAC
  SFP+ Direct Attach Cable (Twinax) 2m
  QSFP+ Direct Attach Cable, 2m
• Cable Management:
  MTP to LC (1RU 64 port LC over MMF)
  MTP to LC (1RU 64 port LC over SMF)
  MTP to LC (1RU 48 port LC over MMF)
• Safety and emissions:
  Safety
  UL/CSA 60950-1, Second Edition
  EN 60950-1, Second Edition
  IEC 60950-1, Second Edition Including All National Deviations and Group Differences
  EN 60825-1 Safety of Laser Products Part 1: Equipment Classification Requirements and User’s Guide
  EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communication Systems
  FDA Regulation 21 CFR 1040.10 and 1040.11 Emissions
  Australia/New Zealand: AS/NZS CISPR 22: 2006, Class A
  Canada: ICES-003, Issue-4, Class A
  Europe: EN 55022: 2006+A1:2007 (CISPR 22: 2006), Class A
  Japan: VCCI V3/2009 Class A
  USA: FCC CFR 47 Part 15, Subpart B:2011, Class A Immunity
  EN 300 386 V1.4.1:2008 EMC for Network Equipment
  EN 55024: 1998 + A1: 2001 + A2: 2003
  EN 61000-3-2: Harmonic Current Emissions
  EN 61000-3-3: Voltage Fluctuations and Flicker
  EN 61000-4-2: ESD
  EN 61000-4-3: Radiated Immunity
  EN 61000-4-4: EFT
  EN 61000-4-5: Surge
  EN 61000-4-6: Low Frequency Conducted

• Software:
  L3 Dell Networking OS
  S6100 series: Dell Networking software license operating system software license for advanced L3 features, latest version
  Dell Networking OS
  S6100 series: Dell Networking Software License operating system software license, latest version
  Select third-party operating system offerings
• RoHS:
  All S Series components are EU RoHS compliant.
