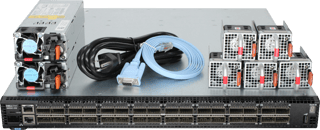

Dell Networking S6010-ON Switch

Tech Specs

• Switch Features:
  32-Port 40G QSFP+ Ports, Redundant AC PS, Fan Subsys, w/Airflow from I/O PNL to PS PNL
  32-Port 40G QSFP+ Ports, Redundant AC PS, Fan Subsys, w/Airflow from PS PNL to I/O PNL
• Physical:
  32 line-rate 40 Gigabit Ethernet QSFP+ ports
  1 RJ45 console/management port with RS232 signaling
  1 USB 2.0 type A storage port
  1 USB 2.0 type B console port
  Size: 1 RU, 1.71 x 17.08 x 18.11”
  Weight: 16.12 lbs (7.32 kg)
  Power supply: 100–240 VAC 50/60 Hz
  Max. power consumption: 411 Watts
  Typ. power consumption: 274 Watts
  Max. operating specifications:
  Operating temperature: 32°F to 113°F (0°C to 45°C)
  Operating humidity: 10 to 90% (RH), non- condensing
  Max. non-operating specifications:
  Storage temperature: –40°F to 158°F (–40°C to 70°C)
  Storage humidity: 5 to 95% (RH), non-condensing
  Fresh Air Compliant to 45°C
  ReadyRails rack mounting system, no tools required
• Redundancy:
  Hot swappable redundant power
  Hot swappable redundant fans
• Performance:
  MAC addresses: 160K
  ARP table 128K
  IPv4 routes: 128K
  IPv6 hosts: 24K
  IPv6 routes: 8K
  Multicast hosts: 8K
  Switch fabric capacity: 2.56Tbps (Full-Duplex)
  Forwarding capacity: 1462Mps
  Link aggregation: 16 links per group, 128 groups per stack
  Layer 2 VLANs: 4K
  MST: 64 instances
  LAG load balancing: Based on layer 2, IPv4 or IPv6 headers
  Latency: Sub 600ns
  Packet buffer memory: 16MB
  CPU memory: 8GB
  QOS data queues: 8
  QOS control queues: 12
  QOS: Default 768 entries scalable to 2.5K
  Ingress ACL: 716
  Egress ACL: 1K

• Optics:
  Transceiver, QSFP+, 40GbE, SR4 Optics, 850nm Wavelength, 100–150m Reach on OM3/OM4
  Transceiver, QSFP+, 40GbE, eSR4 Optics, 850nm Wavelength, 300–400m Reach on OM3/OM4
  Transceiver, QSFP+, 40GbE, LR4 Optics, 10Km Reach on Single Mode Fiber
  Transceiver, QSFP+, 40GbE, PSM4 Optics 1490nm
  Transceiver, QSFP+ 40GbE, LM4 Optics. 2 fiber (1-TX, 1-RX, 4 wavelengths) MMF, 100m
  Transceiver, QSFP+, 40GbE, PSM4-LR. QSFP+ to 4xSFP+LR MPO, SMF
  Transceiver, QSFP+, 40GbE, QSFP+ to SFP+ adaptor, QSA. Supported SFP/+ modules supported include SFP+ (ER, LR, SR), SFP+ ZR and SFP (LX, SX, Copper SFP)
• Cables:
  Cable, 40GbE QSFP+, Direct Attach Cable, for 0.5M, 1M, 3M, 5M, 7M Cable, 40GbE MTP to 4 x LC 5M SM and 1M, 3M, 5M, 7M MM Optical Breakout Cable (optics not included)
  Cable, 40GbE QSFP+ to 4xSFP+0.5M, 1M, 3M, 5M and 7M Direct Attach Breakout Cable
  Cable, 40GbE QSFP+ to 4xRJ45 Megabit Breakout cable
  Cable, 40GbE QSFP+ to 4 x 10GbE SFP+, Active Optical Breakout Cable
  Cable, SFP+ to SFP+, 10GbE, Active Optical Cable, 15m
• Cable Management:
  S6000 Cable Breakout Kit, MTP to LC (1RU 48 or 64 port LC)
• Safety and emissions:
  Safety
  UL/CSA 60950-1, Second Edition
  EN 60950-1, Second Edition
  IEC 60950-1, Second Edition Including All National Deviations and Group Differences
  EN 60825-1 Safety of Laser Products Part 1: Equipment Classification Requirements and User’s Guide
  EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communication Systems
  FDA Regulation 21 CFR 1040.10 and 1040.11
  Emissions
  Australia/New Zealand: AS/NZS CISPR 22: 2006, Class A
  Canada: ICES-003, Issue-4, Class A
  Europe: EN 55022: 2006+A1:2007 (CISPR 22: 2006), Class A
  Japan: VCCI V3/2009 Class A
  USA: FCC CFR 47 Part 15, Subpart B:2011, Class A
  Immunity
  EN 300 386 V1.4.1:2008 EMC for Network Equipment
  EN 55024: 1998 + A1: 2001 + A2: 2003
  EN 61000-3-2: Harmonic Current Emissions
  EN 61000-3-3: Voltage Fluctuations and Flicker
  EN 61000-4-2: ESD
  EN 61000-4-3: Radiated Immunity
  EN 61000-4-4: EFT
  EN 61000-4-5: Surge
  EN 61000-4-6: Low Frequency Conducted Immunity
• RoHS:
  All S Series components are EU RoHS compliant
