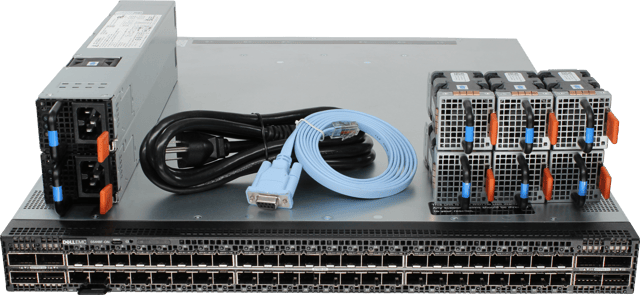

Dell Networking S5448F-ON Switch

Tech Specs

• Switches:
  S5448F-ON, 48x 100GbE SFP56-DD, 8x 400GbE QSFP56-DD, 2x AC PSU, Fan module, I/O Panel to PSU Airflow
  S5448F-ON, 48x 100GbE SFP56-DD, 8x 400GbE QSFP56-DD, 2x AC PSU, Fan module, PSU to I/O Panel Airflow*
• Physical:
  Physical
  1 RJ45 console/management port with RS232 signaling and Micro USB-B port
  1 10/100/1000BASE-T Ethernet for management
  1 USB 2.0 type A storage port 48x100GbE SFP56-DD + 8x400GbE QSFP56-DD ports + 2xSFP+ 10GbE
  Chassis
  Size: 1 RU, 43 x 438 x 550 mm (1.72 x 17.3 x 21.7 inches)
  Weight: 11.67 kg (25.73 lbs) with PSU/Fans installed
• Redundancy:
  Hot swappable redundant power (2 per switch, 1 + 1 redundancy)
  Hot swappable redundant fan trays (6 fan trays per switch, 2 fan rotors per tray, 11 + 1 fan rotor redundancy)
• Performance:
  Switch fabric capacity: 16Tbps (full duplex)
  Forwarding capacity: 2.6Bpps
  Latency: sub 1135ns
  Packet buffer memory: 82MB
  NPU Pipeline is programmable using NPL
  CPU: Intel Denverton C3758 8 Core @ 2.2GHz
  CPU memory: 32GB DDR4 ECC
  MAC addresses: Up to 256K
  ARP table: Up to 192K
  IPv4 routes: Up to 875K (ALPM)
  IPv6 routes: 310K (IPv6/64 ALPM), 240K (IPv6/128 ALPM)
  Multicast routes: 16K (IPMC Table)
  Layer 2 VLANs: 4K
  MSTP: 64 instances
  LAG load balancing: Based on layer 2, IPv4 or IPv6 headers
  Timing Card PTP/1588 and Sync-E
  Trusted Platform Module (on TAA SKUs only)
  Supports up to 5W optics in all 48 SFP56-DD ports (3.5W on all 48 SFP56-DD, with 24 of them scaling up to 5W optics in PSU/ IO airflow direction)
  Supports up to 15W optics in all 8 QSFP56 DD ports, with 4 of them scaling up to 18W optics (6W optics on all 8 QSFP56-DD ports, with 4 of them scaling up to 10W optics in PSU/IO airflow direction)
• Environmental:
  Power supply: 100-240 VAC 50/60H
  Max Power consumption: 920 Watts
  Typ. Power consumption: 250 Watts
  Max Operating specifications:
  AC max. operating specifications: Operating temperature: 0° to 45°C (32° to 113°F)
  Operating humidity: 5 to 90% (RH), non-condensing
  Max. non-operating specifications: Storage temperature: –40° to 70°C (70° to 158°F)
  Storage humidity: 5 to 95% (RH), non-condensing
  Fresh air compliant to 45°C
  Supports AC both lowline and highline power modes
• Safety and emissions:
  Safety:
  UL/CSA 60950-1, Second Edition
  EN 60950-1, Second Edition
  IEC 60950-1, Second Edition Including All National Deviations and Group Differences
  EN 60825-1 Safety of Laser Products Part 1: Equipment Classification Requirements and User’s Guide
  EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communication Systems
  FDA Regulation 21 CFR 1040.10 and 1040.11
  Emissions & Immunity
  EN 300 386 V1.4.1:2008 EMC for Network Equipment
  EN 55024: 1998 + A1: 2001 + A2: 2003
  EN 61000-3-2: Harmonic Current Emissions
  EN 61000-3-3: Voltage Fluctuations and Flicker
  EN 61000-4-2: ESD
  EN 61000-4-3: Radiated Immunity
  EN 61000-4-4: EFT
  EN 61000-4-5: Surge
  EN 61000-4-6: Low Frequency Conducted Immunity
• RoHS:
  All S Series components are EU RoHS compliant.
