Dell Networking S5048F-ON Switch

Tech Specs

• Switches:

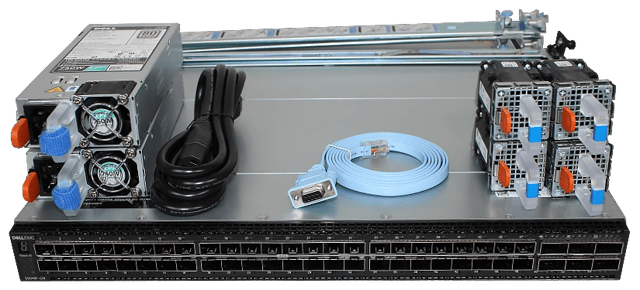

  S5048F, 48x 25GbE SFP+, 6x 100GbE QSFP28, 2x AC PSU, 4x Fans, I/O Panel to PSU Airflow
  S5048F, 48x 25GbE SFP+, 6x 100GbE QSFP28, 2x AC PSU, 4x Fans, PSU to I/O Panel Airflow
• Physical:
  48 line-rate 25 Gigabit Ethernet SFP28 ports
  6 line-rate 100 Gigabit Ethernet QSFP28 ports
  1 RJ45 console/management port with RS232 signaling
  1 Micro-USB type B optional console port
  1 10/100/1000 Base-T Ethernet port used as management port
  1 USB type A port for the external mass storage
  Size: 1 RU, 1.72 h x 17.1 w x 18” d (4.4 h x 43.4 w x 45.7 cm d)
  Weight: 22lbs (9.98kg)
  ISO 7779 A-weighted sound pressure level: 59.6 dBA at 73.4°F (23°C)
  Power supply: 100–240 VAC 50/60 Hz
  Max. thermal output: 1956 BTU/h
  Max. current draw per system:
  5.73A/4.8A at 100/120V AC
  2.87A/2.4A at 200/240V AC
  Max. power consumption: 573 Watts (AC)
  Typ. power consumption: 288 Watts (AC) with all optics loaded
  Max. operating specifications:
  Operating temperature: 32° to 113°F (0° to 45°C)
  Operating humidity: 10 to 90% (RH), noncondensing Fresh Air Compliant to 45°C
  Max. non-operating specifications:
  Storage temperature: –40° to 158°F (–40° to 70°C)
  Storage humidity: 5 to 95% (RH), non-condensing
• Performance:
  Switch fabric capacity: 3.6Tbps
  Forwarding capacity: Up to 2,678 Mpps
  Packet buffer memory: 22MB (16MB supported in initial release)
  CPU memory: 8GB
  MAC addresses: 132K (in scaled-l2-switch mode)
  ARP table: 82K (in scaled-l3-hosts mode)
  IPv4 routes: Up to 128K
  IPv6 routes: Up to 64K (20k currently supported)
  Multicast hosts: Up to 8K
  Link aggregation: 128 groups, 32 members per LAG group
  Layer 2 VLANs: 4K
  MSTP: 64 instances
  LAG Load Balancing: Based on layer 2, IPv4 or IPv6 header, or tunnel inner header contents QoS data queues: 8
  QoS control queues: 12
  QoS: 1024 entries per Tile
  Ingress ACL: 1024 entries per Tile
  Egress ACL: 1k entries per Tile
  Pre-Ingress ACL: 1k entries per Tile
• Transceiver Optics (Optional):
  Transceiver, 100GbE, SR4 QSFP28
  Transceiver, 100GbE, LR4 QSFP28
  Transceiver, 100GbE, SWDM4 QSFP28 to LC duplex
  Transceiver, 100GbE, PSM4 10Km QSFP28
  Transceiver, 100GbE, CWDM4 2Km QSFP28
  Transceiver, 100GbE, PSM4 500m QSFP28
  Transceiver 100GbE, ER4Lite QSFP28
  Transceiver, 40GbE, SR4 optic QSFP+ Transceiver, 40GbE, eSR4 optic QSFP+
  Transceiver, 40GbE, LR4 optic QSFP+
  Transceiver, 40GbE, ER4 optics QSFP+
  Transceiver, 40GbE, PSM4 10Km, QSFP+
  Transceiver, 40GbE, PSM4-LR MPO 10Km QSFP+ to LC
  Transceiver, 40GbE, LM4 / SM4/BiDi QSFP+
  Transceiver, 25GbE, SR4 SFP28
  Transceiver, 25GbE, eSR SFP28
  Transceiver, 25GbE, LR4 SFP28
  Transceiver, 25GbE, SR4 SFP28 NOF
  Transceiver, 10GbE, SR SFP+
  Transceiver, 10GbE, LR SFP+
  Transceiver, 10GbE, ER SFP+
  Transceiver, 10GbE, ZR SFP+
  Transceiver, 10GbE, 10GBASE-T SFP+, Copper
  Transceiver, 1GbE, SX SFP
  Transceiver, 1GbE, LX SFP
  Transceiver, 1GbE, ZX SFP
  Transceiver, 1GbE, BiDi SFP (10km/40km/80km)
• Cables (Optional):
  100GbE, 4x25GbE, QSFP28 to 4xSFP28, passive DAC
  100GbE, QSFP28 to QSFP28, active optical
  100GbE, QSFP28 to QSFP28, passive DAC
  100GbE, 2x50GbE, QSFP28 to 2xQSFP28, passive DAC, breakout
  40GbE, QSFP+ to QSFP+, active optical
  40GbE, QSFP+ to QSFP+, passive DAC
  40GbE, MTP to 4xLC optical breakout
  40GbE, 4x10GbE, QSFP+ to 4xSFP+, passive DAC
  25GbE SFP28 to SFP28, passive DAC, 1M, 2M, 3M, 5M
  25GbE SFP28 to SFP28, active optical cable, 7M, 10M, 15M, 20M
  10GbE SFP+ to SFP+, passive DAC, 1M, 3M, 5M, 7M
  10GbE SFP+ to SFP+, active optical cable, 2M, 3M, 5M, 7M, 10M, 15M, 20M
• Safety and emissions:
  Safety
  UL/CSA 60950-1, Second Edition
  EN 60950-1, Second Edition
  IEC 60950-1, Second Edition Including All National Deviations and Group Differences
  EN 60825-1 Safety of Laser Products Part 1: Equipment Classification Requirements and User’s Guide
  EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communication Systems
  IEC 62368-1
  FDA Regulation 21 CFR 1040.10 and 1040.11
  Emissions & Immunity
  FCC Part 15 (CFR 47) (USA) Class A
  ICES-003 (Canada) Class A
  EN55032: 2015 (Europe) Class A
  CISPR32 (International) Class A
  AS/NZS CISPR32 (Australia and New Zealand) Class A
  VCCI (Japan) Class A
  KN32 (Korea) Class A
  CNS13438 (Taiwan) Class A
  CISPR22
  EN55022
  EN61000-3-2
  EN61000-3-3
  EN61000-6-1
  EN300 386
  EN 61000-4-2 ESD
  EN 61000-4-3 Radiated Immunity
  EN 61000-4-4 EFT
  EN 61000-4-5 Surge
  EN 61000-4-6 Low Frequency Conducted Immunity

• RoHS:
  RoHS 6 and China RoHS compliant
