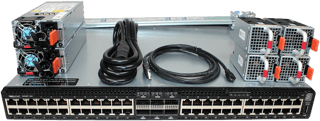

Dell Networking S4148T-ON Switch

Tech Specs

• Switch Features:
  S4148T, 48x 10GBASE-T, 2x QSFP+, 4x 100GbE QSFP28, 2x AC PSU, 4x Fan module, I/O Panel to PSU Airflow
  S4148T, 48x 10GBASE-T, 2x QSFP+, 4x 100GbE QSFP28, 2x AC PSU, 4x Fan module, PSU to I/O Panel Airflow
• Physical:
  1 RJ45 console/management port with RS232 signaling
  1 RJ45 micro-USB-B console port
  1 RJ45 10/100/1000Base-T management Ethernet port
  Hot swappable redundant power
  Hot swappable redundant fans
• Chassis:
  Size: 1 RU, 1.75”(h) x 17”(w) x 18”(d) (4.4cm (h) x 43.1cm (w) x 45.7cm (d))
• Transceiver Optics (Optional):
  10GbE, SR SFP+, short reach
  10GbE, LR SFP+, long reach
  10GbE, ER SFP+, extended reach
  10GbE, ZR SFP+ extra extended reach 10G,
  10GbE, USR, SFP+
  10GBASE-T use with QSA in QSFP+ port, 30m reach on CAT6a/7
  40GbE, SR4 optic QSFP+
  40GbE, eSR4 optic QSFP+
  40GbE, LR4 optic QSFP+
  40GbE, ER4 optics QSFP+
  40GbE, PSM4-LR MPO 10Km QSFP+ to LC
  40GbE, LM4 / SM4 Duplex QSFP+
  100GbE, SR4 QSFP28
  100GbE, LR4 QSFP28
  100GbE, LR4Lite QSFP28
  100GbE, CWDM4 2Km QSFP28
  100GbE, PSM4 500m QSFP28
  100GbE, PSM4-IR, QSFP28
• Cables (Optional):
  40GbE, QSFP+ to QSFP+, active optical
  40GbE, QSFP+ to QSFP+, passive DAC
  40GbE, MTP to 4xLC optical breakout
  40GbE, 4x10GbE, QSFP+ to 4xSFP+, passive DAC
  100GbE, 4x25GbE, QSFP28 to 4xSFP28, passive DAC
  100GbE, QSFP28 to QSFP28, active optical
  100GbE, QSFP28 to QSFP28, passive DAC
  100GbE, 2x50GbE, QSFP28 to 2xQSFP28, passive DAC
• Environmental:
  Power supply: 100–240 VAC 50/60 Hz Max. current draw per system: 6A/5A at 100/120V AC; 3A/2.5A at 200/240V AC
  Max. operating specifications: Operating temperature: 32° to 104° F (0° to 40°C) designed to ensure consistent functionality in moderate temperature conditions
  Operating humidity: 5 to 85% (RH), non-condensing
  Max. non-operating specifications: Storage temperature: -40° to 149°F (-40° C to 65° C)
  Storage humidity: 5 to 95% (RH), non-condensing
  Operational altitude: -100 feet BMSL to 10,000 feet
  Storage altitude: -100 feet BMSL to 15,000 feet
• Regulatory Compliance:
  EN 300 386 V1.4.1:2008 EMC for Network Equipment
  EN 55024: 1998 + A1: 2001 + A2: 2003
  EN 61000-3-2: Harmonic Current Emissions
  EN 61000-3-3: Voltage Fluctuations and Flicker
  EN 61000-4-2: ESD
  EN 61000-4-3: Radiated Immunity
  EN 61000-4-4: EFT
  EN 61000-4-5: Surge
  EN 61000-4-6: Low Frequency Conducted Immunity
• Safety and emissions:
  UL/CSA 60950-1, Second Edition
  EN 60950-1, Second Edition
  IEC 60950-1, Second Edition Including All National Deviations and Group Differences
  EN 60825-1 Safety of Laser Products Part 1: Equipment Classification Requirements and User’s Guide
  EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communication Systems
  FDA Regulation 21 CFR 1040.10 and 1040.11
  Australia/New Zealand: AS/NZS CISPR 32: Class A
  Canada: ICES-003, Issue-4, Class A
  Europe: EN 55032: 2015+A1:2007 (CISPR 32), Class A
  Japan: VCCI V3/2009 Class A
  USA: FCC CFR 47 Part 15, Subpart B:2009, Class A

• RoHS:
  All S-Series components are EU RoHS compliant.
