Dell Networking S4148F-ON Switch

  • From: $1,399
100% Satisfaction Guarantee - The xByte Difference
  • 100% Dell Original Components
  • 14 Day Money Back Guarantee
  • Dell Engineer Approved

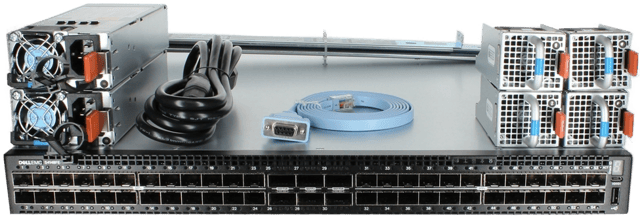

Image of Dell Networking S4148F-ON Switch
  • Ports:1/10GbE SFP+
  • Primary Port Quantity:48 ports
  • Uplink Ports:100GbE QSFP28
  • Uplink Port Quantity:2 ports
  • Secondary Uplink Port Quantity:4 ports
  • Secondary Uplink Ports:40GbE QSFP+
  • Hot-swappable AC Power Supply:redundant 550W
  • Networking Model:S4148F-ON
  • Airflow:Standard Airflow / Reverse Airflow
  • Default Operation System:Dell OS10 Enterprise
  • PoE:NO
  • Power Supply:2 x redundant, hot-swappable 550W AC PSUs
  • Transceivers:Not included
SKU: >S4148F-ON

Videos

Resources

Tech Specs

  • Base:
    Dell S4100 Series Switches
  • Switch Features:
    S4112F, 12x 10GbE SFP+, 3x 100GbE QSFP28, 2x AC Fixed PSU, 3x Fixed Fan, I/O Panel to PSU Airflow
    S4112F, 12x 10GbE SFP+, 3x 100GbE QSFP28, 2x AC Fixed PSU, 3x Fixed Fan, I/O PSU to I/O Panel Airflow
    S4112F, 12x 10GbE SFP+, 3x 100GbE QSFP28, 2x DC Fixed PSU, 3x Fixed Fan, I/O Panel to PSU Airflow
    S4112F, 12x 10GbE SFP+, 3x 100GbE QSFP28, 2x DC Fixed PSU, 3x Fixed Fan, I/O PSU to I/O Panel Airflow
    S4128T, 28x 10GBASE-T, 2x 100GbE QSFP28, 2x AC PSU, 4x Fan module, I/O Panel to PSU Airflow
    S4128T, 28x 10GBASE-T, 2x 100GbE QSFP28, 2x AC PSU, 4x Fan module , PSU to I/O Panel Airflow
    S4148F, 48x 10GbE SFP+, 2x QSFP+, 4x 100GbE QSFP28, 2x AC PSU, 4x Fan module, I/O Panel to PSU Airflow
    S4148F, 48x 10GbE SFP+, 2x QSFP+, 4x 100GbE QSFP28, 2x AC PSU, 4x Fan module, PSU to I/O Panel Airflow
    S4148T, 48x 10GBASE-T, 2x QSFP+, 4x 100GbE QSFP28, 2x AC PSU, 4x Fan module, I/O Panel to PSU Airflow
    S4148T, 48x 10GBASE-T, 2x QSFP+, 4x 100GbE QSFP28, 2x AC PSU, 4x Fan module, PSU to I/O Panel Airflow
  • Transceiver Optics:
    10GbE, SR SFP+, short reach
    10GbE, LR SFP+, long reach
    10GbE, ER SFP+, extended reach
    10GbE, ZR SFP+ extra extended reach 10G,
    10GbE, USR, SFP+
    10GBASE-T use with QSA in QSFP+ port, 30m reach on CAT6a/7
    40GbE, SR4 optic QSFP+
    40GbE, eSR4 optic QSFP+
    40GbE, LR4 optic QSFP+
    40GbE, ER4 optics QSFP+
    40GbE, PSM4-LR MPO 10Km QSFP+ to LC
    40GbE, LM4 / SM4 Duplex QSFP+
    100GbE, SR4 QSFP28
    100GbE, LR4 QSFP28
    100GbE, LR4Lite QSFP28
    100GbE, CWDM4 2Km QSFP28
    100GbE, PSM4 500m QSFP28
    100GbE, PSM4-IR, QSFP28
  • Fan Module (Not Applicable to S4112):
    IO Panel to PSU Airflow
    PSU to IO Panel Airflow
  • Redundant Power Supplies (Not Applicable to S4112):
    S4100, AC Power Supply, IO Panel to PSU Airflow
    AC Power Supply, PSU to IO Panel Airflow
    DC Power Supply, IO Panel to PSU Airflow
    DC Power Supply, PSU to IO Panel Airflow
    HV DC Power Supply, IO Panel to PSU Airflow
    HV DC Power Supply, PSU to IO Panel Airflow
  • Cables:
    40GbE, QSFP+ to QSFP+, active optical
    40GbE, QSFP+ to QSFP+, passive DAC
    40GbE, MTP to 4xLC optical breakout
    40GbE, 4x10GbE, QSFP+ to 4xSFP+, passive DAC
    100GbE, 4x25GbE, QSFP28 to 4xSFP28, passive DAC
    100GbE, QSFP28 to QSFP28, active optical
    100GbE, QSFP28 to QSFP28, passive DAC
    100GbE, 2x50GbE, QSFP28 to 2xQSFP28, passive DAC
