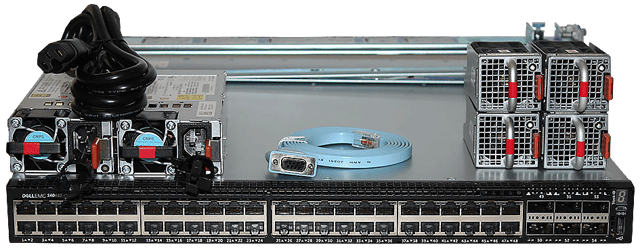

Dell Networking S4048T-ON Switch

Tech Specs

• Physical:
  48 fixed 10GBase-T ports supporting 100M/1G/10G speeds
  6 fixed 40 Gigabit Ethernet QSFP+ ports
  1 RJ45 console/management port with RS232 signaling
  1 USB 2.0 type A to support mass storage device
  1 Micro-USB 2.0 type B Serial Console Port
  1 8 GB SSD Module

• Chassis:
  Size: 1RU, 1.71 x 17.09 x 18.11” (4.35 x 43.4 x 46 cm) (H x W x D)
  Weight: 23 lbs (10.43kg)
• Environmental:
  ISO 7779 A-weighted sound pressure level: 65 dB at 77°F (25°C)
  Power supply: 100–240V AC 50/60Hz
  Max. thermal output: 1568 BTU/h
  Max. current draw per system: 4.6 A at 460W/100VAC, 2.3 A at 460W/200VAC
  Max. power consumption: 460 Watts
  Typical power consumption: 338 Watts
  Max. operating specifications:
  Operating temperature: 32°F to 113°F (0°C to 45°C)
  Operating humidity: 5 to 90% (RH), non-condensing
  Max. non-operating specifications:
  Storage temperature: –40°F to 158°F (–40°C to 70°C)
  Storage humidity: 5 to 95% (RH), non- condensing

• Performance:
  Switch fabric capacity:
  1.44Tbps (full-duplex) 720Gbps (half-duplex)
  Forwarding Capacity: 1080 Mpps
  Latency: 2.8 us
  Packet buffer memory: 16MB
  CPU memory: 4GB
  OS9 Performance:
  MAC addresses: 160K
  ARP table 128K
  IPv4 routes: 128K
  IPv6 hosts: 64K
  IPv6 routes: 64K
  Multicast routes: 8K
  Link aggregation: 16 links per group, 128 groups
  Layer 2 VLANs: 4K
  MSTP: 64 instances
  VRF-Lite: 511 instances
  LAG load balancing: Based on layer 2, IPv4 or IPv6 headers
  Latency: Sub 3us
  QOS data queues: 8
  QOS control queues: 12
  Ingress ACL: 16K
  Egress ACL: 1K
  QoS: Default 3K entries scalable to 12K

• Safety and emissions:
  Safety
  CUS UL 60950-1, Second Edition
  CSA 60950-1-03, Second Edition
  EN 60950-1, Second Edition
  IEC 60950-1, Second Edition Including All National Deviations and Group Differences
  EN 60825-1, 1st Edition
  EN 60825-1 Safety of Laser Products Part 1: Equipment Classification Requirements and User’s Guide
  EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communication Systems
  FDA Regulation 21 CFR 1040.10 and 1040.11
  Emissions
  International: CISPR 22, Class A
  Australia/New Zealand: AS/NZS CISPR 22: 2009, Class A
  Canada: ICES-003:2016 Issue 6, Class A
  Europe: EN 55022: 2010+AC:2011 / CISPR 22: 2008, Class A
  Japan: VCCI V-3/2014.04, Class A & V4/2012.04
  USA: FCC CFR 47 Part 15, Subpart B:2009, Class A

• RoHS:
  All S-Series components are EU RoHS compliant.
