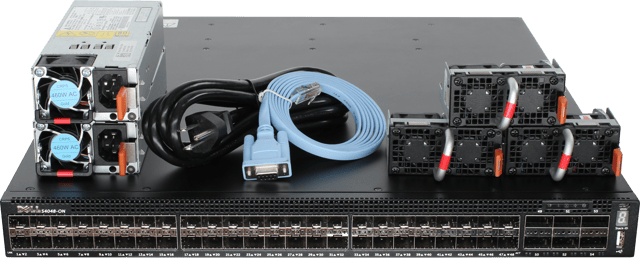

Dell Networking S4048-ON Switch

Tech Specs

• Physical:
  48 10 Gigabit Ethernet SFP+ ports
  6 40 Gigabit Ethernet QSFP+ ports
  1 RJ45 console/management port with RS232 signaling
  1 USB 2.0 type A to support mass storage device
  1 Micro-USB 2.0 type B Serial Console Port

• Chassis:
  Size: 1RU, 1.71 x 17.09 x 17.13” (4.35 x 43.4 x 43.5cm (H x W x D)
  Weight: 18.52 lbs (8.4kg)
• Envrionmental:
  ISO 7779 A-weighted sound pressure level: 59.6 dBA at 73.4°F (23°C)
  Power supply: 100–240V AC 50/60Hz
  DC Power supply: -40.5V ~ -60V
  Max. thermal output: 799.64 BTU/h
  Max. current draw per system: 2.344A/1953A at 100/120V AC, 1.145A/0.954A at 200/240V AC
  Max. DC current : -40.5V/23.8A , -48V/19A , -60V/15.6A.
  Max. power consumption: 234.35 Watts (AC), 800 Watts (DC)
  Typical power consumption: 153 Watts
  Max. operating specifications: Operating temperature: 32°F to 113°F (0°C to 45°C)
  Operating humidity: 10 to 85% (RH), non- condensing
  Max. non-operating specifications:
  Storage temperature: –40°F to 158°F (–40°C to 70°C)
  Storage humidity: 5 to 95% (RH), non- condensing

• Performance:
  Switch fabric capacity:
  1.44Tbps (full-duplex)
  720Gbps (half-duplex)
  Forwarding Capacity: 1080 Mpps
  Latency: Sub 650ns
  Packet buffer memory: 12MB
  CPU memory: 4GB
  OS9 Performance:
  MAC addresses: 160K
  ARP table 128K
  IPv4 routes: 128K
  IPv6 hosts: 64K
  IPv6 routes: 64K
  Multicast hosts: 8K
  Link aggregation: 16 links per group, 128 groups
  Layer 2 VLANs: 4K
  MSTP: 64 instances
  VRF-Lite: 511 instances
  LAG load balancing: Based on layer 2, IPv4 or IPv6 headers
  QOS data queues: 8
  QOS control queues: 12
  QOS: Default 768 entries scalable to 2.5K

• Regulatory Compliance:
  Japan: VCCI V3/2009 Class A
  USA: FCC CFR 47 Part 15, Subpart B:2009, Class A Tested to meet or exceed Hi Pot and Ground
  Continuity testing per UL 60950-1
• Safety and emissions:
  Safety
  UL/CSA 60950-1, Second Edition
  EN 60950-1, Second Edition
  IEC 60950-1, Second Edition Including All National Deviations and Group Differences
  EN 60825-1 Safety of Laser Products Part 1: Equipment Classification Requirements and User’s Guide
  EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communication Systems FDA Regulation 21 CFR 1040.10 and 1040.11 Emissions
  Australia/New Zealand: AS/NZS CISPR 22: 2009, Class A
  Canada: ICES-003, Issue-4, Class A
  Europe: EN 55022: 2006+A1:2007 (CISPR 22: 2006), Class A
  Japan: VCCI V3/2009 Class A
  USA: FCC CFR 47 Part 15, Subpart B:2009, Class A

• RoHS:
  All S-Series components are EU RoHS compliant.
