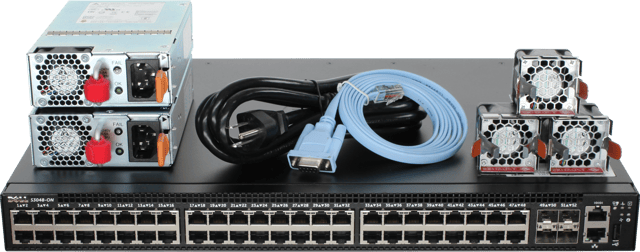

Dell Networking S3048-ON Switch

Tech Specs

• Switch Features:
  S3048-ON 1000BASE-T, 48 x 1000BASE-T, 4 x SFP+, 1 x AC PSU, 3 x Fans, IO I/O Panel to PSU Airflow
  S3048-ON 1000BASE-T, 48 x 1000BASE-T, 4 x SFP+, 1 x AC PSU, 3 x Fans,, PSU to I/O Panel Airflow
• Physical:
  48 line-rate 1000BASE-T ports
  4 line-rate 10GbE SFP+ ports
  1 RJ45 console/management port with RS232 signaling
• Chassis:
  Size: 1 RU, 1.71”h x 17.09” w x 12.6” d (4.4 h x 43.4 w x 32.0 cm d)
  Weight: 12.8 lbs (5.84 kg) with 1 power supply, 14.8 lbs (6.74kg) with 2 power supplies
• Performance:
  MAC addresses: up to 80k
  IPv4 routes: 16K
  IPv6 routes: 8K (shared CAM space with IPv4)
  Switch fabric capacity: 260Gbps (full-duplex), 130 Gbps (half-duplex)
  Forwarding capacity: 131 Mpps
  Link aggregation: 16 links per group, 128 groups per stack
  Queues per port: 8 queues
  Layer 2 VLANs: 4K
  MSTP : 64 instances
  VRF-lite: 64 instances
  Line-rate Layer 2 switching: all protocols, including IPv4 and IPv6
  Line-rate Layer 3 routing: IPv4 and IPv6
  IPv4 host table size up to 40k max
  IPv6 host table size 8K
  IPv4 Multicast table size 8K
  LAG load balancing: based on Layer 2, IPv4 or IPv6 headers
  Latency 3.7 µsec for 1000BASE-T, ~1.8 µsec for SFP+
  Packet buffer memory: 4MB
  CPU memory: 2GB

• Transceiver Optics:
  10GbE, SR SFP+, short reach
  10GbE, LR SFP+, long reach
  10GbE, ER SFP+, extended reach
  10GbE, ZR SFP+ extra extended reach 10G,
  10GbE, USR, SFP+
  10GBASE-T use with QSA in QSFP+ port, 30m reach on CAT6a/7

• Environmental:
  ISO 7779 A-weighted sound pressure level: <36 dBA at 78.8°F (26°C)
  Power supply: 90–264 VAC 50/60 Hz
  1) AC forward airflow
  2) AC reverse airflow
  Max. thermal output: 290 BTU/h
  Max. current draw per system: <1A at 100/120V VAC <0.5A at 200/240VAC
  Max. power consumption: 87W
  Typ. power consumption: 65 Watts
  Max. operating specifications:
  Operating temperature: 32° to 113°F (0° to 45°C)
  Operating humidity: 5 to 85% (RH), non- condensing
  Operating altitude: 0ft to 10,000ft above sea level
  Max. non-operating specifications:
  Storage temperature: –40° to 158°F (–40° to 70°C)
  Storage humidity: 5 to 95% (RH), non- condensing

• Regulatory Compliance:
  Safety
  UL/CSA 60950-1, Second Edition
  EN 60950-1, Second Edition
  IEC 60950-1, Second Edition Including All National Deviations and Group Differences
  EN 60825-1 Safety of Laser Products Part 1: Equipment Classification Requirements and User’s Guide
  EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communication Systems
  FDA Regulation 21 CFR 1040.10 and 1040.11
  Emissions
  Australia/New Zealand: AS/NZS CISPR 22: 2006, Class A
  Canada: ICES-003, Issue-4, Class A
  Europe: EN 55022: 2006+A1:2007 (CISPR 22: 2006), Class A
  Japan: VCCI V3/2009 Class A
  USA: FCC CFR 47 Part 15, Subpart B:2011, Class A
  Immunity
  EN 300 386 V1.4.1:2008 EMC for Network Equipment
  EN 55024: 1998 + A1: 2001 + A2: 2003
  EN 61000-3-2: Harmonic Current Emissions
  EN 61000-3-3: Voltage Fluctuations and Flicker
  EN 61000-4-2: ESD
  EN 61000-4-3: Radiated Immunity
  EN 61000-4-4: EFT
  EN 61000-4-5: Surge
  EN 61000-4-6: Low Frequency
  Conducted Immunity

• RoHS:
  All S Series components are EU RoHS compliant
