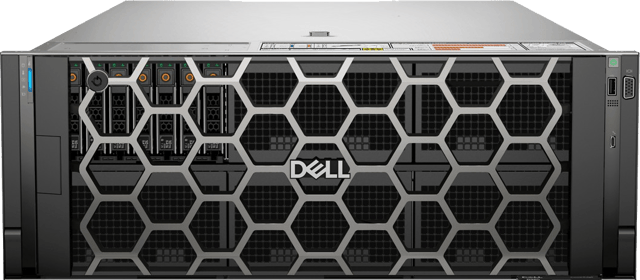

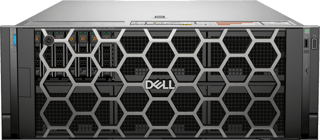

Dell PowerEdge R960 Server

Tech Specs

• Processor:
  Up to four 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor and with optional Intel® QuickAssist Technology
• Memory:
  64 DDR5 DIMM slots, supports RDIMM 16 TB max, speeds up to 4800 MT/s
  Supports registered ECC DDR5 DIMMs only
• Storage Controllers:
  Internal Controllers: PERC H965i, PERC H755, PERC H355, HBA355i, HBA465ii

  Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB

  External HBA (non-RAID): HBA355e, HBA465e

  Software RAID: S160
• Drive Bays:
  Front bays:
  Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB
  Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 245.76 TB
  Up to 24 x 2.5-inch NVMe (SSD) max 368.64 TB
  Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (SSD) max 368.64 TB
  Up to 32 x 2.5-inch SAS/SATA (HDD/SSD) max 491.52 TB
• Power Supplies:
  1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
  1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
• Cooling Options:
  Air cooling
  Optional Direct Liquid Cooling (DLC)*
  Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate
• Fans:
  Standard (STD) fans
  Up to 6 sets (dual fan module) hot plug fans
• Dimensions:
  Height – 174.3 mm (6.86 inches)
  Width – 482 mm (18.97 inches)
  Depth –
  883.195 mm (34.77 inches) with bezel
  869.195 mm (34.22 inches) without bezel
• Form Factor:
  4U rack server
• Embedded Management:
  iDRAC9
  iDRAC Direct
  iDRAC RESTful API with Redfish
  iDRAC Service Module
  Quick Sync 2 wireless module
• Bezel:
  Optional LCD bezel or security bezel
• OpenManage Software:
  CloudIQ for PowerEdge plug in
  OpenManage Enterprise
  OpenManage Enterprise Integration for VMware vCenter
  OpenManage Integration for Microsoft System Center
  OpenManage Integration with Windows Admin Center
  OpenManage Power Manager plugin
  OpenManage Service plugin
  OpenManage Update Manager plugin
• Mobility:
  OpenManage Mobile
• OpenManage Integrations:
  BMC Truesight
  Microsoft System Center
  OpenManage Integration with ServiceNow
  Red Hat Ansible Modules
  Terraform Providers
  VMware vCenter and vRealize Operations Manager
• Security:
  Cryptographically signed firmware
  Data at Rest Encryption (SEDs with local or external key mgmt)
  Secure Boot
  Secure Erase
  Secured Component Verification (Hardware integrity check)
  Silicon Root of Trust
  System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
• Embedded NIC:
  2 x 1 GbE LOM card (optional)
• Network options:
  1 x OCP card 3.0 (optional)
  Note: The system allows either LOM card or an OCP card or both to be installed in the system
• GPU Options:
  Up to 4 x 400 W DW
• Ports:
  Front Ports:
  1 x iDRAC Direct (Micro-AB USB) port
  1 x USB 2.0
  1 x VGA

  Rear Ports:
  1 x Dedicated iDRAC Ethernet port
  1 x USB 2.0
  1 x USB 3.0
  1 x Serial (optional)
  1 x VGA (optional for Direct Liquid Cooling configuration)

  Internal Ports:
  1 x USB 3.0 (optional)
• PCIe:
  Up to twelve PCIe slots:
  Slot 1: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length
  Slot 2: 1 x16 Gen5 Full height, Half length
  Slot 3: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length (double width)
  Slot 4: 1 x16 Gen5 Low profile, Half length
  Slot 5: 1 x16 Gen5 Low profile, Half length
  Slot 6: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length (double width)
  Slot 7: 1 x16 Gen5 Full height, Half length
  Slot 8: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length (double width)
  Slot 9: 1 x16 Gen5 Low profile, Half length
  Slot 10: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length
  Slot 11: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length (double width)
  Slot 12: 1 x16 Gen5 Full height, Half length
• Operating System and Hypervisors:
  Canonical Ubuntu Server LTS
  Microsoft Windows Server with Hyper-V
  Red Hat Enterprise Linux
  SUSE Linux Enterprise Server
  VMware ESXi
