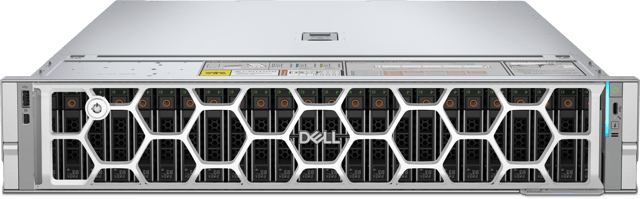

Dell PowerEdge R7725 Server

Tech Specs

• Base:
  PowerEdge R7725 Server
• Form Factor:
  2U Rack Server
• Processor:
  Two 5th Generation AMD EPYC 9005 Series processor with up to 192 cores per processor
• Power Supplies:
  800 W Platinum/Titanium
  1100 W Platinum/Titanium
  1400 W Telco -48VDC
  1500 W Titanium
  1500 W 277 VAC & HVDC
  1800 W Titanium
  2400 W Titanium
  3200 W Titanium
  3200 W Titanium 277 VAC & HVDC
• Memory:
  24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 6400 MT/s
  Supports registered ECC DDR5 DIMMs only
• Storage Controllers:
  Internal Controllers:
  Front PERC H965i, Front PERC H975i, Front PERC H365i

  Boot Optimized Storage Subsystem (BOSS-N1)

  External HBAs (non-RAID):
  HBA465e
• Drive Bays:
  Front Bays:
  12 x 3.5-inch SAS/SATA
  8 x 2.5 Universal/ 16 x 2.5-inch SAS/SATA / 24 x 2.5-inch SAS/SATA
  16 x 2.5-inch SAS/SATA SSD + 8 x U.2 or 2.5-inch NVMe RAID
  8 x EDSFF E3.S / 16 x EDSFF E3.S / 32 x EDSFF E3.S / 40 x EDSFF E3.S
• Embedded NIC:
  1 Gb dedicated BMC Ethernet port
• PCIe Add-in Card (AIC) NIC:
  100 GbE and 400GbE; NDR VPI (400GbE); FC 32 / 64
• Dimensions:
  Height – 86.8 mm (3.42 inches)
  Width – 482 mm (18.98 inches)
  Depth with bezel – 802.40 mm (31.59 inches)
  Depth without bezel – 801.51 mm (31.55 inches)
• Embedded Management:
  iDRAC 10
  iDRAC Direct
  iDRAC RESTfull API with redfish
  RACADM CLI
• OpenManage Consoles:
  OpenManage Enterprise (OME)
  OME Power Manager
  OME Services
  OME Update Manager
  OME APEX AIOps Observability
  OME Integration for VMware vCenter (with VMware Aria Operations)
  OpenManage Integration for Microsoft System Center
  OpenManage Integration for Windows Admin Center
• OpenManage Integrations:
  RedHat Ansible Collections
  Terraform Providers
• Mobility:
  N/A
• Tools:
  IPMI
  Change Management
  Dell Repository Manager
  Dell System Update
  Enterprise Catalogs
  Server Update Utility (SUU)
• Security:
  AMD Secure Encrypted Virtualization (SEV)
  AMD Secure Memory Encryption (SME)
  Cryptographically signed firmware
  Data at Rest Encryption (SEDs with local or external key mgmt)
  Secure Boot
  Secured Component Verification (Hardware integrity check)
  Secure Erase
  Silicon Root of Trust
  System Lockdown
  TPM 2.0 FIPS, CC-TCG certified
  Chassis Intrusion Detection
• OCP Network options:
  2 x OCP NIC 3.0 card (optional) and 1GbE, 10GbE, 25GbE, 100GbE and 400GbE
• GPU Options:
  Up to 2 x 400 W DW; Up to 6x 75W SW
• Ports:
  Front Ports:
  1 x USB 2.0 Type C port (HOST/BMC Direct)
  1 x USB 2.0 Type A port (optional LCP KVM)
  1 x Mini-DisplayPort (optional LCP KVM)

  Rear Ports:
  1 x 1 Gb Dedicated BMC Ethernet port
  2 x USB 3.1 Type A
  1 x VGA

  Internal:
  1 x USB 3.1 Type A port
• PCIe:
  Up to eight PCIe slots (8x or x16 connectors)
  Slot 1: 1 x8 Gen5 Full Height
  Slot 2: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length
  Slot 3: 1 x16 Gen5 Full Height or Low Profile
  Slot 4: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 OCP3.0
  Slot 5: 1 x8 Gen5 Full Height
  Slot 7: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length
  Slot 8: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height
  Slot 9: 1 x16 Gen5 Full Height or Low Profile
• Fans:
  Up to 6 hot plug fans
• Cooling Options:
  Air cooling and Direct Liquid Cooling (DLC)
• Bezel:
  Optional metal bezel
• Operating Systems & Hypervisors:
  Canonical Ubuntu Server LTS
  Microsoft Windows Server with Hyper-V
  Red Hat Enterprise Linux
  SUSE Linux Enterprise Server
  VMware ESXI
