Dell PowerEdge R770AP Server

Call for price and availability

xByte Technologies is a Dell Gold Partner and also sells Dell new (non-recertified) hardware.

  • 100% Dell Original Components
  • 30-Day Money-Back Guarantee
  • Dell Certified Technicians & Engineers
100% Satisfaction Guarantee - The xByte Difference
Dell Gold Partner Dell Outlet Platinum

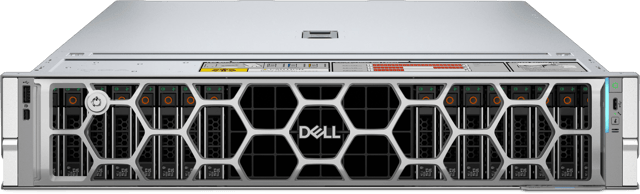

Image of Dell PowerEdge R770AP Server
  • Dell Server Generation:17th
  • Server Model:R770AP
  • Server Type:Rack
  • CPU:Up to two Intel Xeon 6 processors, with up to 128 cores per processor
  • Memory:24 DDR5 DIMM slots, supports RDIMM 3 TB max, speeds up to 6400 MT/s
  • RAID:PERC H975i
  • HDD:2.5" or E3.S Hot Swap NVMe
  • Power Supply:1500W, 1800W, 2400W, and 3200W Hot Swap Redundant
  • Riser:Up to 5 x PCIe Gen5 slots
  • Rack Units:2U
SKU: >R770AP

Resources

Blogs

Tech Specs

  • Base:
    PowerEdge R770AP Server
  • Form Factor:
    2U Rack Server
  • Processor:
    Two Intel Xeon 6 6900-series processors with up to 128 P-Cores
  • Power Supplies:
    1500 W Titanium 100-120 LLAC or 200-240 HLAC, 240 VDC
    1800 W Titanium 200-240 HLAC, 240 VDC
    2400 W Titanium 100-120 LLAC or 200-240 HLAC, 240 VDC
    3200 W Titanium 200-220 HLAC or 220-240 HLAC, 240 VDC
    3200 W Titanium 277Vac & HVDC
  • Memory:
    24 DDR5 DIMM slot, supports RDIMM 3 TB max, speeds up to 6400 MT/s
    Supports registered ECC DDR5 DIMMs only
  • Storage Controllers:
    Internal Controllers (RAID):
    PERC H975i DC-MHS front

    Internal Boot:
    Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or USB
  • Drive Bays:
    Front bays:
    No backplane configuration
    Up to 16 x 2.5-inch G5 x4 NVMe (SSD) max 245.76 TB
    Up to 16 x 2.5-inch G5 x2 NVMe (SSD) max 245.76 TB
    Up to 32 x EDSFF E3.S Gen5 NVMe (SSD) max 491.52 TB
  • Dimensions:
    Height – 86.8 mm (3.42 inches)
    Width – 482 mm (19.0 inches)
    Depth – 802.40 mm (31.59 inches) with bezel
    Depth – 801.51 mm (31.56 inches) without bezel
  • Embedded Management:
    iDRAC10
    iDRAC Direct
    iDRAC RESTfull API with redfish
    RACADM CLI
    iDRAC Service Module
  • Security:
    Cryptographically signed firmware
    Data at Rest Encryption (SEDs with local or external key mgmt)
    Secure Boot
    Secured Component Verification (Hardware integrity check)
    Secure Erase
    Silicon Root of Trust
    System Lockdown (requires iDRAC10 Enterprise or Datacenter)
    TPM 2.0 FIPS, CC-TCG certified
    Chassis Intrusion Detection
