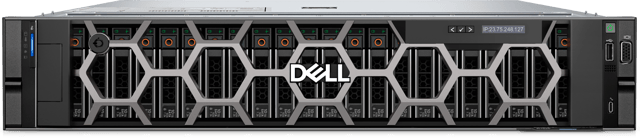

Dell PowerEdge R7625 Server

Tech Specs

• Base:
  PowerEdge R7625 Server
• Form Factor:
  2U Rack Server
• Processor:
  2x AMD EPYC 4th Generation 9004 Series with up to 96 cores per processor
• Dimensions:
  Height: 86.8mm (3.41 inches)
  Width: 482mm (18.97 inches)
  Depth with Bezel: 772.13mm (30.39 inches)
  Depth without Bezel: 758.29mm (29.85 inches)
• Power Supplies:
  2800W Titanium 200—240 VAC or 240 HVDC, hot swap
  2400W Platinum 100—240 VAC or 240 HVDC, hot swap
  1800W Titanium 200—240 VAC or 240 HVDC, hot swap
  1400W Platinum 100—240 VAC or 240 HVDC, hot swap
  1100W Titanium 100—240 VAC or 240 HVDC, hot swap
  1100W LVDC -48 — -60 VDC, hot swap redundant
  800W Platinum 100—240 VAC or 240 HVDC, hot swap
• Cooling Options:
  Air cooling
  Optional Direct Liquid Cooling (DLC)
  Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.
• Fans:
  High performance Silver (HPR) fans/ High performance Gold (VHP) fans
  Up to 6 hot plug fans
• Memory:
  24 DDR5 DIMM slots, supports RDIMM 3 TB max, speeds up to 4800 MT/s
  Supports registered ECC DDR5 DIMMs only
• Drive Bays:
  Front Bays:
  Up to 8x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB
  Up to 12x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
  Up to 8x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
  Up to 16x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
  Up to 24x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB

  Rear Bays:
  Up to 2x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
  Up to 4x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
• Storage Controllers:
  Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
  Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2x M.2 NVMe SSDs or USB
  External HBAs (non-RAID): HBA355e
  Software RAID: S160
• Embedded Management:
  iDRAC9
  iDRAC Direct
  iDRAC RESTful API with Redfish
  iDRAC Service Module
  Quick Sync 2 wireless module
• OpenManage Software:
  OpenManage Enterprise
  OpenManage Power Manager plugin
  OpenManage SupportAssist plugin
  OpenManage Update Manager plugin
  CloudIQ for PowerEdge plugin
  OpenManage Enterprise Integration for VMware vCenter
  OpenManage Integration for Microsoft System Center
  OpenManage Integration with Windows Admin Center
• Mobility:
  OpenManage Mobile
• OpenManage Integrations:
  BMC Truesight
  Microsoft System Center
  Red Hat Ansible Modules
  OpenManage Integration with ServiceNow
  Red Hat Ansible Modules
  Terraform Providers
  VMware vCenter and vRealize Operations Manager
• Security:
  AMD Secure Encrypted Virtualization (SEV)
  AMD Secure Memory Encryption (SME)
  Cryptographically signed firmware
  Data at Rest Encryption (SEDs with local or external key mgmt)
  Secure Boot
  Secured Component Verification (Hardware integrity check)
  Secure Erase
  Silicon Root of Trust
  System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
• Bezel:
  Optional LCD or Security Bezel
• Embedded NIC:
  2x 1 GbE LOM card (optional)
• Networking Options (NDC):
  1x OCP card 3.0 (optional)
  Note: The system allows either LOM card or an OCP card or both to be installed in the system.
• GPU Options:
  Up to 2x 300W DW or 6 x 75W SW
• Ports:
  Front Ports:
  1x iDRAC Direct (Micro-AB USB) port
  1x USB 2.0
  1x VGA

  Internal Ports:
  1x USB 3.0 (optional)

  Rear Ports:
  1x Dedicated iDRAC Ethernet port
  1x USB 2.0
  1x USB 3.0
  1x Serial (optional)
  1x VGA (optional for Direct Liquid Cooling configuration)
• PCIe:
  Up to eight PCIe slots:
  Slot 1: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length
  Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height Full length
  Slot 3: 1 x16 Gen4 Low profile, Half length
  Slot 4: 1 x8 Gen4 Full height, Half length
  Slot 5: 1 x8 Gen4 Full height, Half length or 1 x16 Gen4 Full height , Full length
  Slot 6: 1 x16 Gen4 Low profile, Half length
  Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length •
  Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length
• Operating Systems & Hypervisors:
  Canonical Ubuntu Server LTS
  Microsoft Windows Server with Hyper-V
  Red Hat Enterprise Linux
  SUSE Linux Enterprise Server
  VMware ESXi
