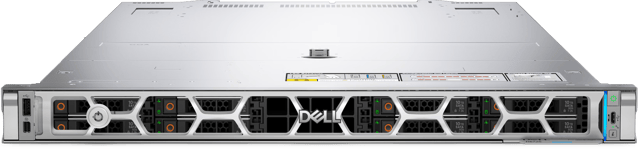

Dell PowerEdge R6725 Server
Call for price and availability
- 100% Dell Original Components
- 14 Day Money Back Guarantee
- Dell Engineer Approved

- Dell Server Generation:17th
- Server Model:R6725
- Server Type:Rack
- CPU:Two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores per processor
- Memory:24 DDR5 DIMM slots, supports RDIMM 3 TB max, speeds up to 6000 MT/s
- RAID:PERC H365i, H965i, H975i
- HDD:2.5", 3.5" or E3.S Hot Swap SAS, SATA, Near Line SAS, and NVMe SSD
- Power Supply:800W Platinum/Titanium, 1100W Platinum/Titanium, 1400W Telco, 1500 W Titanium, 1800W Titanium, hot swap redundant
- Riser:Up to three x16 Gen5 PCIe slots
- Rack Units:2U
SKU: >R6725
Resources
Tech Specs
-
Base:
PowerEdge R6725 Server
-
Form Factor:
1U Rack Server
-
Processor:
Two 5th Generation AMD EPYC 9005 Series processor with up to 192 cores per processor
-
Power Supplies:
800 W Platinum/Titanium
1100 W Platinum/Titanium
1400 W Telco -48VDC
1500 W Titanium
1500 W 277 VAC & HVDC
1800 W Titanium -
Memory:
24 DDR5 DIMM slots, supports RDIMM 3 TB max, speeds up to 6400 MT/s
Supports registered ECC DDR5 DIMMs only -
Storage Controllers:
Internal Controllers:
Front PERC H965i, Front PERC H975i, Front PERC H365i
Boot Optimized Storage Subsystem (BOSS-N1)
External HBAs (non-RAID):
HBA465e -
Drive Bays:
Front Bays:
4 x 3.5-inch SAS/SATA
8 x 2.5 Universal or U.2 / 10 x 2.5-inch SAS/SATA
10 x 2.5-inch with 4 x Universal
8 x EDSFF E3.S Gen5 NVMe / 16 x EDSFF E3.S Gen5 NVMe
Rear Bays:
20 x EDSFF E3.S + Rear 2x EDSFF E3.S -
Embedded NIC:
1 Gb dedicated BMC Ethernet port
-
PCIe Add-in Card (AIC) NIC:
100 GbE and 400GbE; NDR VPI (400GbE); FC 32
-
Dimensions:
Height – 42.8 mm (1.68 inches)
Width – 482 mm (18.97 inches)
Depth with bezel – 816.921 mm (32.16 inches)
Depth without bezel – 815.141 mm (32.09 inches) -
Embedded Management:
iDRAC 10
iDRAC Direct
iDRAC RESTfull API with redfish
RACADM CLI -
OpenManage Consoles:
OpenManage Enterprise (OME)
OME Power Manager
OME Services
OME Update Manager
OME APEX AIOps Observability
OME Integration for VMware vCenter (with VMware Aria Operations)
OpenManage Integration for Microsoft System Center
OpenManage Integration for Windows Admin Center -
OpenManage Integrations:
RedHat Ansible Collections
Terraform Providers -
Mobility:
N/A
-
Tools:
IPMI
Change Management
Dell Repository Manager
Dell System Update
Enterprise Catalogs
Server Update Utility (SUU) -
Security:
AMD Secure Encrypted Virtualization (SEV)
AMD Secure Memory Encryption (SME)
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 2.0 FIPS, CC-TCG certified
Chassis Intrusion Detection -
OCP Network options:
2 x OCP NIC 3.0 card (optional) and 1GbE, 10GbE, 25GbE, 100GbE and 400GbE
-
GPU Options:
Up to 3 x 75 W SW
-
Ports:
Front Ports:
1 x USB 2.0 Type C port (HOST/BMC Direct)
1 x USB 2.0 Type A port (optional LCP KVM)
1 x Mini-DisplayPort (optional LCP KVM)
Rear Ports:
1 x 1 Gb Dedicated BMC Ethernet port
2 x USB 3.1 Type A
1 x VGA
Internal:
1 x USB 3.1 Type A port -
PCIe:
Up to three PCIe slots (x16 connectors)
Slot 1: 1 x16 Gen5 Full Height or Low Profile
Slot 2: 1 x16 Gen5 Low Profile or 1 x16 Gen5 OCP3.0
Slot 3: 1 x16 Gen5 Full Height or Low Profile -
Fans:
Up to 4 sets (dual fan module) hot plug fans
-
Cooling Options:
Air cooling and Direct Liquid Cooling (DLC)
-
Bezel:
Optional metal bezel
-
Operating Systems & Hypervisors:
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXI
