Dell PowerEdge R360 Server

  • From: $4,613

xByte Technologies is a Dell Platinum Partner and also sells Dell new (non-recertified) hardware.

  • 100% Dell Original Components
  • 30-Day Money-Back Guarantee
  • Dell Certified Technicians & Engineers
100% Satisfaction Guarantee - The xByte Difference
Dell Platinum Partner Dell Outlet Platinum

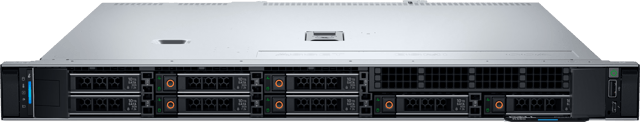

Image of Dell PowerEdge R360 Server
  • Dell Server Generation:16th
  • Server Model:R360
  • Server Type:Rack
  • CPU:One Intel® Xeon® 6300 series or one Intel® Xeon® E-2400 series processor with up to 8 cores or One Intel® Pentium® G7400/G7400T processor with 2 cores
  • Memory:Four DDR5 DIMM slots, supports UDIMM 128 GB max, speeds up to 4400 MT/s
  • RAID:HBA355i, HBA355e, PERC H355, PERC H755, S160
  • HDD:Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB; Up to 8 x 2.5-inch SAS/SATA (SSD) max 61.44 TB
  • Power Supply:600 W Platinum 100 — 240 VAC or 240 VDC, hot swap redundant; 700 W Titanium 200 — 240 VAC or 240 VDC, hot swap redundant
  • Riser:Up to two PCIe Gen4 slots on the Gen4 Riser; 1x8, half length, low profile and 1x16, half length, low profile
  • Rack Units:1U
SKU: >R360

Resources

Tech Specs

  • Base:
    PowerEdge R360 Server
  • Form Factor:
    2U Rack Server
  • Processor:
    1 x Intel® Xeon® 6300 Series processor with up to 12 cores,
    1 x Intel® Xeon® E-2400 Series processor with up to 8 cores, or
    1 x Intel® Pentium processor with 2 cores
  • Dimensions:
    Height – 42.8 mm (1.68 inches)
    Width – 482.0 mm (18.97 inches)
    Depth – 585.3 mm (23.04 inches) without bezel
    Depth – 598.9 mm (23.57 inches) with bezel
  • Power Supplies:
    600 W Platinum 100 — 240 VAC or 240 VDC, hot swap redundant
    700 W Titanium 200 — 240 VAC or 240 VDC, hot swap redundant
  • Cooling Options:
    Air cooling
  • Fans:
    Up to 4 fans
  • Memory:
    4 DDR5 UDIMM slots, supports 128 GB max, speeds up to 4400 MT/s
    Supports unregistered ECC DDR5 DIMMs only
  • Drive Bays:
    Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
    Up to 8 x 2.5-inch SAS/SATA (SSD) max 61.44 TB
  • Storage Controllers:
    Internal Controllers: HBA355i, PERC H355, PERC H755
    Internal Boot: USB 3.0 or Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 SSDs
    External HBA (non-RAID): HBA355e
    Software Controller: S160
  • Embedded Management:
    iDRAC9
    iDRAC Direct
    iDRAC RESTful API with Redfish
    iDRAC Service Manual
  • OpenManage Software:
    OpenManage Enterprise
    OpenManage Power Manager plugin
    OpenManage Service plugin
    OpenManage Update Manager plugin
    CloudIQ for PowerEdge plug in
    OpenManage Enterprise Integration for VMware vCenter
    OpenManage Integration for Microsoft System Center
    OpenManage Integration with Windows Admin Center
  • Mobility:
    OpenManage Mobile
  • Open Manage Integrations:
    BMC Truesight
    Microsoft System Center
    OpenManage Integration with ServiceNow
    Red Hat Ansible Modules
    Terraform Providers
    VMware vCenter and vRealize Operations Manager
  • Security:
    Cryptographically signed firmware
    Data at Rest Encryption (SEDs with local or external key mgmt)
    Secure Boot
    Secured Component Verification (Hardware integrity check)
    Secure Erase
    Secured-core server
    Silicon Root of Trust
    System Lockdown (requires iDRAC9 Enterprise or Datacenter)
    TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
  • Bezel:
    Security bezel or Optional Filter bezel
  • Embedded NIC:
    2 x 1 GbE LOM
  • GPU Options:
    1 x 60 W single-width GPU
  • Ports:
    Front:
    1 x iDRAC Direct (Micro-AB USB) port
    1 x USB 2.0

    Rear:
    1 x Dedicated iDRAC Ethernet port
    1 x USB 2.0
    1 x USB 3.2 Gen1
    1 x VGA
    1 x Serial
  • PCIe:
    Up to two PCIe Gen4 slots on the Gen4 Riser Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile One dedicated PCIe x8 slot on the system board for internal PERC
  • Supported Operating Systems:
    ESXi 9.1 - U1
    Red Hat Enterprise Linux 10
    Red Hat Enterprise Linux 9
    Red Hat® Enterprise Linux 8
    SuSE Linux ES 15
    SUSE Linux ES 16 - Update 0 x64
    Ubuntu Server 22.04 LTS
    VMware ESXi 8.0
    VMware ESXi 9.0
    Windows Server 2019 LTSC
    Windows Server 2022 LTSC
    Windows Server 2025 LTSC
