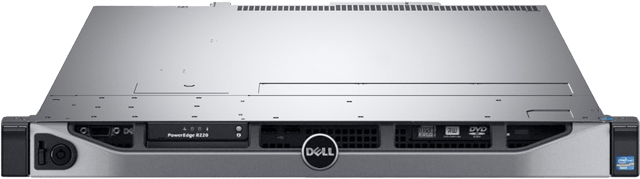

Dell PowerEdge R220 Server

Tech Specs

• Base:
  PowerEdge R220 Server
• Form Factor:
  1U Rack Server
• Processor:
  Intel® Xeon® processor E3-1200 v3 product family, Intel Pentium®, Intel Celeron®, Intel Core®
• Processor Sockets:
  1
• Dimensions & Weight:
  Height: 1.66” (42.4 mm)
  Width: 17.09” (434 mm)
  Depth: 15.52” (394.3 mm) (without ear/bezel)
  Weight: 17.76 lb (8.058 kg) maximum
• Cache:
  2.0MB L3 per core; core options: 2, 4
• Chipset:
  Intel C222
• Minimum/Maximum RAM:
  Drive bay options:
  Up to 2 x 2.5”
  Up to 2 x 3.5”
  1 slim optical drive

  Hard drive options:
  2 x 3.5” SATA, SAS, or NL SAS
  2 x 2.5” SAS, NL SAS or SSD
• Memory:
  4 x DDR3 UDIMM, up to 32GB, up to 1600MT/s
• Optional Storage Controller:
  Internal controllers:
  PERC S110 (SW RAID)
  PERC H310
  Chipset-based SATA

  External HBAs (RAID):
  PERC H810

  External HBAs (non-RAID):
  6Gbps SAS HBA
• I/O Adapter Options:
  1Gb/10Gb Ethernet:
  Broadcom 5719 quad-port 1Gb NIC
  Broadcom 5720 dual-port 1Gb NIC
  Intel I350 dual-port 1Gb stand-up adapter
  Intel I350 quad-port 1Gb stand-up adapter
  Intel X520 dual-port 10Gb DA/SFP+
  Intel X540 dual-port 10Gb Base-T

  10Gb Converged Ethernet:
  Broadcom 57810S dual-port 10Gb Base-T
  Emulex OCe14102-UX-D 2x PCIe 10GbE
  QLogic QLE8262, 10Gb

  FC8 HBA:
  QLogic QLE2560 8Gb
  QLogic QLE1562, 8Gb
  Emulex LPe-12002 8Gb
  Emulex LPe-12000
• PCIe slot:
  1 PCIe x16 3.0 slot, full height, half length
• Embedded NIC:
  Broadcom® 5720 dual-port 1Gb LOM
• USB:
  5 total: 2 rear USB 3.0, 2 front USB 2.0, 1 internal USB 2.0
• Power Supply:
  Non-redundant, 250W (80+ Silver); auto-ranging (100V~240V)
• Remote Management:
  iDRAC7 with Lifecycle Controller (optional)
• Systems Management:
  Basic manangment
  IPMI 2.0 compliant
  Dell OpenManage Essentials
  Dell OpenManage Mobile
  Dell OpenManage Power Center

  Dell OpenManage Integrations:
  Dell OpenManage Integration Suite for Microsoft System Center
  Dell OpenManage Integration for VMware® vCenter

  Dell OpenManage Connections:
  HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management
  Dell OpenManage Plug-in for Oracle Database Manager
