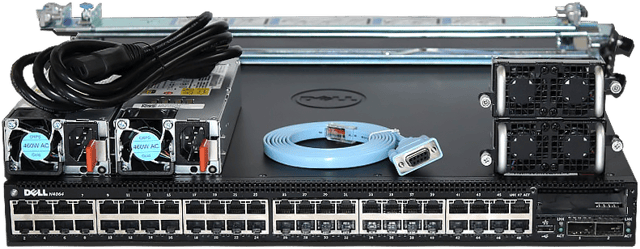

Dell Networking N4064 Switch

Tech Specs

• Base:
  Dell N4000 Series
• Switches:
  N4064: 48x 10GbE RJ45 auto-sensing (10Gb/1Gb/100Mb) fixed ports, 2x 40GbE QSFP+ fixed ports, 1x hot swap expansion module bay, 2x redundant 460W PSU included
• Power Cords:
  125V, 15A, 10 feet, NEMA 5-15/C13
  250V, 12A, 2 meters, C13/C14
  Country- and region-specific power cord options available
• Chassis:
  Size (1RU, H x W x D): 1.71 in x 17.08 in x 18.11 in (43.43 mm x 433.83 mm x 459.99 mm) (Power supply handle adds 1.13 in or 28.7 mm) Approximate weight: 24.07lbs/10.92kg (N4064) ReadyRails rack mounting system, no tools req.
• Transceiver Optics (Optional):
  SFP, 1000BASE-T
  SFP, 1000BASE-SX, 850nm wavelength, up to 550m reach
  SFP, 1000BASE-LX, 1310nm wavelength, up to 10km reach
  SFP+, 10GbE, LRM, 1310nm wavelength, up to 220m reach
  SFP+, 10GbE, SR, 850nm wavelength, up to 300m reach
  SFP+, 10GbE, LR, 1310nm wavelength, up to 10km reach
  QSFP+, 40GbE, SR4, 850nm wavelength, up to 150m reach
  QSFP+, 40GbE, ESR, 850nm wavelength, up to 300m reach
  QSFP+, 40GbE, LR4, 1310nm wavelength, up to 10km reach
  QSFP+, 40GbE, PSM4 with 1m, 5m or 15m pigtail to MPO
• Modules (Optional):
  4-port 10 Gigabit SFP+ hot swappable module
  4-port 10 Gigabit Base-T RJ-45 hot swappable module
  2-port 40 Gigabit QSFP+ hot swappable module
• Physical:
  User port stacking up to 100m using 10Gb or 40Gb supporting up to 320Gbps on N4064
  Rear out-of-band management port (10/100/1000BASE-T)
  USB (Type A) port for configuration via USB flash drive
  Auto-negotiation for speed and flow control
  Auto-MDI/MDIX, port mirroring
  Flow-based port mirroring
  Broadcast storm control
  Energy-Efficient Ethernet per port settings
  Redundant variable speed fans
  Air flow: I/O to power supply
  Dual redundant hot swappable power supplies: 460W
  RJ45 console/management port with RS232 signaling (RJ-45 to female DB-9 connector cable included)
  Dual firmware images on-board
• Cables (Optional):
  Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach, 0.5m, 1m, 3m, 5m, 7m
  Dell Networking cable, QSFP+ to 4x SFP+, 40GbE to 4x10GbE, passive copper breakout, 0.5m, 1m, 3m, 5m, 7m
  Dell Networking cable, QSFP+ to QSFP+, 40GbE, passive copper direct attach, 0.5m, 1m, 3m, 5m, 7m
  OM3 MTP fiber, QSFP+ to QSFP+, 40GbE, requires QSFP+, 1m, 3m, 5m, 7m, 10m, 25m, 50m, 75m, 100m
  Fiber breakout, QSFP+ to 4x SFP+, 40GbE MTP to 4x 10GbE LC, requires 1x QSFP+ and 4x SFP+, 1m, 3m, 5m, 7m
• Environmental:
  Power supply efficiency: 80% or better in all operating modes Max. thermal output (BTU/hr): 1353.53 (N4064) Power consumption max (watts): 395 (N4064) Operating temperature: 32° to 113°F (0° to 45°C) Operating relative humidity: 90% Storage temperature: –4° to 158°F (–20° to 70°C) Storage relative humidity: 95%
• Performance:
  MAC addresses: 131,072
  Static routes: 1,024 (IPv4)/1,024 (IPv6)
  Dynamic routes: 8,160 (IPv4)/4,096 (IPv6)
  Switch fabric capacity: 1.28Tbps (N4064)
  Forwarding rate: 952Mpps (N4064)
  Link aggregation: 128 LAG groups, 144 dynamic ports per stack, 8 member ports per LAG
  Queues per port: 8
  Line-rate Layer 2 switching: All (non-blocking)
  Line-rate Layer 3 routing: All (non-blocking)
  Flash memory: 256MB
  Packet buffer memory: 9MB
  CPU memory: 2GB
  OSPF routing interfaces: 8,160
  RIP routing interfaces: 512
  ECMP next hops per route: 4
  ECMP groups: 1,024
  VLAN routing interfaces: 128
  VLANs supported: 4,094
  Protocol-based VLANs: Supported
  Multicast forwarding entries: 512 (IPv4), 256 (IPv6)
  ARP entries: 6,144
  NDP entries: 1024
  Access control lists (ACL): Supported
  MAC and IP-based ACLs: Supported
  Time-controlled ACLs: Supported
  Max number of ACLs: 100
  Max ACL rules system-wide: 3,072
  Max rules per ACL: 1,023
  Max ACL rules per interface (IPv4):
  2,047 (ingress)
  1,023 (egress)
  Max ACL rules per interface (IPv6):
  1,021 (ingress)
  512 (egress)
  Max VLAN interfaces with ACLs applied: 24
