Dell Networking N3248X-ON Switch

Call for price and availability

  • 100% Dell Original Components
  • 30-Day Money-Back Guarantee
  • Dell Certified Technicians & Engineers
100% Satisfaction Guarantee - The xByte Difference
Dell Gold Partner Dell Outlet Platinum

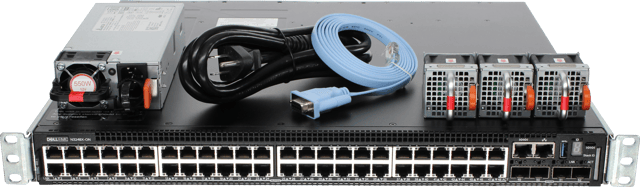

Image of Dell Networking N3248X-ON Switch
  • Ports:1/10GbE Base-T
  • Primary Port Quantity:48 ports
  • Uplink Ports:100GbE QSFP28
  • Uplink Port Quantity:2 ports
  • Secondary Uplink Port Quantity:4 ports
  • Secondary Uplink Ports:25GbE SFP28
  • Hot-swappable AC Power Supply:redundant 550W
  • Networking Model:N3248TE-ON
  • Airflow:Standard Airflow / Reverse Airflow
  • Default Operation System:Dell OS6 / SONiC
  • PoE:NO
  • Power Supply:1 x hot-swappable 550W AC PSU.
  • Transceivers:Not Included
SKU: >N3248X-ON

Resources

Tech Specs

  • Switches:
    N3248X-ON IO/PS Airflow, with OS6: 48x RJ45 10M/100M/1G/2.5G/5G/10G auto-sensing ports, 4x 25G SFP28 ports, 2X 100G QSFP28 ports, 1x 550W AC PSU included
    N3248X-ON PS/IO Airflow, with OS6: 48x RJ45 10M/100M/1G/2.5G/5G/10G auto-sensing ports, 4x 25G SFP28 ports, 2X 100G QSFP28 ports, 1x 550W AC PSU included
  • Physical:
    2 integrated rear 100GbE QSFP28 stacking ports
    Out-of-band management port (10/100/1000BASE-T)
    USB (Type A) port for configuration via USB flash drive
    MicroUSB (Type B) console port
    RJ45 console port with RS232 signaling
    Auto-negotiation for speed and flow control Auto-MDI/MDIX, port mirroring
    Flow-based port mirroring Broadcast storm control
    Energy-Efficient Ethernet per port settings
    Redundant variable speed fans
    Air flow: I/O to power supply
    Power supply: Integrated 550W (N3248X-ON)
    Dual firmware images on-board
    Switching engine model: Store and forward
  • Chassis:
    Size (1RU, H x W x D): 1.71 in x 17.09 in x 15.75 in (power supply/fan tray handle adds add’l 1.18 in)
    Approximate weight (Switch with 1 PSU installed): 16.1lbs/7.3kg (N3248X-ON)
    2-post rack mounting kit
  • Environmental:
    Power supply efficiency: 87% or better in all operating modes
    Max. thermal output (BTU/hr): 1637 (N3248X-ON)
    Power consumption max (watts): 480 (N3248X-ON)
    Operating temperature: 32° to 113°F (0° to 45°C)
    Operating relative humidity: 95%
    Storage temperature: –40° to 158°F (–40° to 70°C)
    Storage relative humidity: 95%
  • Performance:
    CPU memory: 4GB
    SSD: 8GB
    Packet buffer memory: 32MB (N3248X-ON)
    Switch fabric capacity (full-duplex): 1560Gbps (N3248X-ON)
    Forwarding rate: 2167Mpps (N3248X-ON)
    Line-rate Layer 2 switching: All (non-blocking)
    Line-rate Layer 3 routing: All (non-blocking)
  • Safety and emissions:
    Australia/New Zealand: ACMA RCA Class A
    Canada: ICES Class A; cUL
    China: CCC Class A; NAL
    Europe: CE Class A
    Japan: VCCI Class A
    USA: FCC Class A; NRTL UL; FDA 21 CFR 1040.10 and 1040.11
    Eurasia Customs Union: EAC Germany: GS mark
    Product meets EMC and safety standards in many countries inclusive of USA, Canada, EU, Japan, China. For more country-specific regulatory information, and approvals, please see your Dell Technologies representative
    N-Series products have the necessary features to support a PCI compliant network topology.
  • RoHS:
    Product meets RoHS compliance standards in many countries inclusive of USA, EU, China, and India. For more country-specific RoHS compliance information, please see your Dell Technologies representative.
    EU WEEE
    EU Battery Directive REACH
