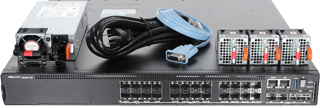

Dell Networking N3224F-ON Switch

Tech Specs

• Base:
  Dell N3000 Series
• Switches:
  N3024ET-ON: 24x RJ45 10/100/1000Mb auto-sensing ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 200W PSU included, 2Gb memory and 1Gb of flash
  N3024EF-ON: 24x 1000-SX (up to 500m distance) or 1000-LX (up to 10km distance) SFP GbE ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 200W PSU included, 2Gb memory and 1Gb of flash
  N3024P: 12x RJ45 10/100/1000Mb PoE+ (up to 30.8W) auto- sensing ports, 12x RJ45 10/100/1000Mb PoE 60W auto-sensing ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 715W PSU included (requires C15 plug)
  N3048ET-ON: 48x RJ45 10/100/1000Mb auto-sensing ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 200W PSU included, 2G memory and 1Gb of flash
  N3048EP-ON: 48x RJ45 10/100/1000Mb PoE+ (up to 30.8W) auto-sensing ports; first twelve RJ45 10/100/1000Mb can provide PoE 60W auto-sensing ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 1100W PSU included (requires C15 plug); 2GB memory and 1GB flash
  N3048P: 48x RJ45 10/100/1000Mb PoE+ (up to 30.8W) auto- sensing ports; first twelve RJ45 10/100/1000Mb PoE 60W auto-sensing ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 1100W PSU included (requires C15 plug)
• Power Cords:
  C13 to NEMA 5-15, 3M
  C13 to C14, 2M
  C15 to NEMA 5-15, 2M (C15 for PoE N-Series only)
• Power Supplies:
  200W AC hot swappable with V-Lock, adds redundancy to non- PoE switches
  715W AC hot swappable, adds redundancy to N3024P and N3024EP-ON (N3024P only)
  1100W AC hot swappable, adds redundancy to N3048P and N3048EP-ON or upgrade N3024P and N3024EP-ON for additional PoE+ power
• Transceiver Optics (Optional):
  SFP, 100BASE-FX, 1310nm wavelength, up to 2km reach
  SFP, 1000BASE-T
  SFP, 1000BASE-SX, 850nm wavelength, up to 550m reach
  SFP, 1000BASE-LX, 1310nm wavelength, up to 10km reach
  SFP, 1000BASE-ZX, 1550nm wavelength, up to 80km reach
  SFP+, 10GbE, LRM, 1310nm wavelength, up to 220m reach
  SFP+, 10GbE, SR, 850nm wavelength, up to 300m reach
  SFP+, 10GbE, LR, 1310nm wavelength, up to 10km reach
  SFP+, 10GbE, ER, 1550nm wavelength, up to 40km reach
• Modules (Optional):
  2-port 10 Gigabit BASE-T RJ-45 hot swappable uplink
  2-port 10 Gigabit SFP+ hot swappable uplink
• Physical:
  2 rear stacking ports (21Gbps) supporting up to 84Gbps (full duplex)
  2 integrated front 10GbE SFP+ dedicated ports
  USB (Type A) port for configuration via USB flash drive
  Auto-negotiation for speed and flow control
  Auto-MDI/MDIX, port mirroring
  Flow-based port mirroring
  Broadcast storm control
  Energy-Efficient Ethernet per port settings
  Redundant variable speed fans
  Air flow: I/O to power supply
  RJ45 console/management port with RS232 signaling (RJ-45 to female DB-9 connector cable included)
  Dual firmware images on-board
  Switching engine model: Store and forward
• Environmental:
  Power supply: 200W (N3024ET-ON, N3024EF-ON, and N3048ET-ON) 715W or 1,100W (N3024P and N3024EP-ON), 1,100W (N3048EP-ON)
  Power supply efficiency: 80% or better in all operating modes
  Max. thermal output (BTU/hr):
  151.4 (N3024ET-ON)
  204.6 (N3024EF-ON)
  4,467.1 (N3024P, N3024EP-ON)
  220.97 (N3048ET-ON)
  3,113.33 (N3048EP-ON)
  Power consumption max (watts):
  52.8 (N3024ET-ON)
  67.1 (N3024EF-ON)
  1,287 (N3024P, N3024EP-ON)
  74.8 (N3048ET-ON)
  2,145 (N3048EP-ON)
  Operating temperature: 32° to 113°F (0° to 45°C)
  Operating relative humidity: 95%
  Storage temperature: –40° to 149°F (–40° to 65°C)
  Storage relative humidity: 85%
• Chassis:
  Size (1RU, H x W x D):
  1.7126 in x 17.0866 in x 6.0236 in (43.5 mm x 434.0 mm x 407.0 mm) (Power supply handle adds 1.38 in or 35 mm)
  Approximate weight:
  13.2277lbs/6kg (N3024, N3024ET-ON, and N3024F and N3024EF-ON), 14.5505lbs/6.6kg (N3024P and N3024EP-ON), 13.8891lbs/6.3kg (N3048 and N3048ET-ON), 15.2119lbs/6.9kg (N3048P & N3048EP-ON), 15.7lbs/7.12kg (N3132PX-ON)
  ReadyRails rack mounting system, no tools required
• Performance:
  MAC addresses: 32K
  Static routes: 1,024 (IPv4)/1,024 (IPv6)
  Dynamic routes: 8,160 (IPv4)/4,096 (IPv6)
  Switch fabric capacity:
  212Gbps (N3024ET-ON, N3024EF-ON, N3024P and N3024EP-ON)
  260Gbps (N3048ET-ON and N3048EP-ON)
  Forwarding rate:
  158Mpps (N3024ET-ON, N3024EF-ON, N3024EP-ON and N3024P)
  193Mpps (N3048ET-ON, N3048EP-ON)
  Link aggregation: 128 LAG groups, 144 dynamic
  ports per stack, 8 member ports per LAG
  Priority queues per port: 8
  Line-rate Layer 2 switching: All (non-blocking)
  Line-rate Layer 3 routing: All (non-blocking)
  Flash memory: 256MB
  Packet buffer memory: 4MB
  CPU memory: 1GB
  OSPF routing interfaces: 8,160
  RIP routing interfaces: 512
  ECMP next hops per route: 4
  ECMP groups: 64
  VLAN routing interfaces: 128
  VLANs supported: 4,094
  Protocol-based VLANs: Supported
  Multicast forwarding entries: 1,536 (IPv4), 512 (IPv6)
  ARP entries: 6,144
  NDP entries: 400
  Access control lists (ACL): Supported
  MAC and IP-based ACLs: Supported
  Time-controlled ACLs: Supported
  Max number of ACLs: 100
  Max ACL rules system-wide: 4,096
  Max rules per ACL: 1,023
  Max ACL rules per interface (IPv4):
  3,072 (ingress)
  1,024 (egress)
  Max ACL rules per interface (IPv6):
  1,021 (ingress)
  512 (egress)
  Max VLAN interfaces with
  ACLs applied: 24
• Cables (Optional):
  Stacking cable 0.25m, 1m and 3m
  Dell EMC Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 0.5m, 1m, 3m, 5m and 7m
