Dell Networking N3208PX-ON Switch

Call for price and availability

100% Dell Original Components
30-Day Money-Back Guarantee
Dell Certified Technicians & Engineers

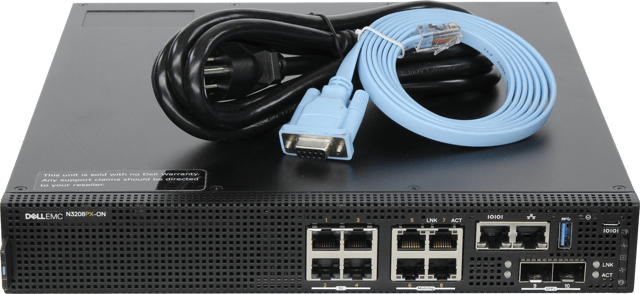

Image of Dell Networking N3208PX-ON Switch

Ports:10/100/1000/2.5G/5G Base-T
Primary Port Quantity:4 ports
Uplink Ports:10/100/1000 BASE-T
Uplink Port Quantity:4 ports
Secondary Uplink Port Quantity:2 ports

Secondary Uplink Ports:1/10GbE SFP+
Hot-swappable AC Power Supply:Fixed, Internal Power Supply
Networking Model:N3208PX-ON
Default Operation System:Dell OS6
Transceivers:Not Included

SKU: >N3208PX-ON

Resources

Dell N3200 Spec Sheet

Tech Specs

Switches:
N3208PX-ON IO/PS Airflow, with OS6: 4x RJ45 10M/100M/1G/2.5G/5G 802.3bt (up to 90W) PoE auto-sensing ports, 4x 10M/100M/1000Mb 802.3bt (up to 90W) PoE autosensing ports, 2x 10G SFP+ ports, 1x 320W AC PSU included
Physical:
Out-of-band management port (10/100/1000BASE-T)
USB (Type A) port for configuration via USB flash drive
MicroUSB (Type B) console port
RJ45 console port with RS232 signaling
Auto-negotiation for speed and flow control Auto-MDI/MDIX, port mirroring
Flow-based port mirroring Broadcast storm control
Energy-Efficient Ethernet per port settings
Redundant variable speed fans
Air flow: I/O to power supply
Power supply: Integrated 320W (N3208PX-ON)
Dual firmware images on-board
Switching engine model: Store and forward
Chassis:
Size (1RU, H x W x D): N3208PX-ON: 1.71 in x 11 in x 12.28 in
Approximate weight (Switch with 1 PSU installed): 8.44lbs/3.83kg (N3208PX-ON)
Envrionmental:
Power supply efficiency: 87% or better in all operating modes
Max. thermal output (BTU/hr): 2821 (N3208PX-ON)
Power consumption max (watts): 900 (N3208PX-ON)
Operating temperature: 32° to 113°F (0° to 45°C)
Operating relative humidity: 95%
Storage temperature: –40° to 158°F (–40° to 70°C)
Storage relative humidity: 95%
Performance:
CPU memory: 4GB
SSD: 8GB
Packet buffer memory: 4MB (N3208PX-ON)
Switch fabric capacity (full-duplex): 88Gbps (N3208PX-ON)
Forwarding rate: 122Mpps (N3208PX-ON)
Line-rate Layer 2 switching: All (non-blocking)
Line-rate Layer 3 routing: All (non-blocking)
Safety and emissions:
Australia/New Zealand: ACMA RCA Class A
Canada: ICES Class A; cUL
China: CCC Class A; NAL
Europe: CE Class A
Japan: VCCI Class A
USA: FCC Class A; NRTL UL; FDA 21 CFR 1040.10 and 1040.11
Eurasia Customs Union: EAC Germany: GS mark
Product meets EMC and safety standards in many countries inclusive of USA, Canada, EU, Japan, China. For more country-specific regulatory information, and approvals, please see your Dell Technologies representative
N-Series products have the necessary features to support a PCI compliant network topology.
RoHS:
Product meets RoHS compliance standards in many countries inclusive of USA, EU, China, and India. For more country-specific RoHS compliance information, please see your Dell Technologies representative.
EU WEEE
EU Battery Directive REACH
