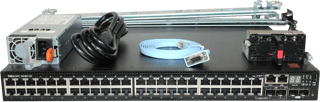

Dell Networking N3048ET-ON Switch

Tech Specs

• Physical:
  2 rear stacking ports (21Gbps) supporting up to 84Gbps (full- duplex)
  2 integrated front 10GbE SFP+ dedicated ports
  Out-of-band management port (10/100/1000BASE-T)
  USB (Type A) port for configuration via USB flash drive
  Auto-negotiation for speed and flow control
  Auto-MDI/MDIX, port mirroring
  Flow-based port mirroring
  Broadcast storm control
  Energy-Efficient Ethernet per port settings
  Redundant variable speed fans
  Air flow: I/O to power supply
  RJ45 console/management port with RS232 signaling
  Dual firmware images on-board
  Switching engine model: Store and forward

• Chassis:
  Size (1RU, H x W x D):
  1.7126 in x 17.0866 in x 6.0236 in (43.5 mm x 434.0 mm x 407.0 mm) (Power supply handle adds 1.38 in or 35 mm)
  Approximate weight: 13.8891lbs/6.3kg (N3048ET-ON)
  ReadyRails rack mounting system, no tools required
• Environmental:
  Power supply: 200W (N3048ET-ON)
  Power supply efficiency: 80% or better in all operating modes
  Max. thermal output (BTU/hr): 220.97 (N3048ET-ON)
  Power consumption max (watts): 74.8 (N3048ET-ON)
  Operating temperature: 32° to 113°F (0° to 45°C)
  Operating relative humidity: 95%
  Storage temperature: –40° to 149°F (–40° to 65°C)
  Storage relative humidity: 85%
• Performance:
  MAC addresses: 32K
  Static routes: 1,024 (IPv4)/1,024 (IPv6)
  Dynamic routes: 8,160 (IPv4)/4,096 (IPv6)
  Switch fabric capacity: 260Gbps (N3048ET-ON)
  Forwarding rate: 193Mpps (130Gbps) (N3048ET-ON)
  Link aggregation: 128 LAG groups, 144 dynamic ports per stack, 8 member ports per LAG
  Priority queues per port: 8
  Line-rate Layer 2 switching: All (non-blocking)
  Line-rate Layer 3 routing: All (non-blocking)
  Flash memory: 256MB
  Packet buffer memory: 4MB
  CPU memory: 1GB
  OSPF routing interfaces: 8,160
  RIP routing interfaces: 512
  ECMP next hops per route: 4
  ECMP groups: 64
  VLAN routing interfaces: 128
  VLANs supported: 4,094
  Protocol-based VLANs: Supported
  Multicast forwarding entries: 1,536 (IPv4), 512 (IPv6)
  ARP entries: 6,144
  NDP entries: 400
  Access control lists (ACL): Supported
  MAC and IP-based ACLs: Time-controlled ACLs: Supported
  Max number of ACLs: 100
  Max ACL rules system-wide: 4,096
  Max rules per ACL: 1,023
  Max ACL rules per interface (IPv4): 3,072 (ingress), 1,024 (egress)
  Max ACL rules per interface (IPv6): 1,021 (ingress), 512 (egress)
  Max VLAN interfaces with ACLs applied: 24
• Regulatory Compliance:
  Available with US Trade Agreements Act (TAA) compliance.
  N-Series products have the necessary features to support a PCI compliant network topology.
• Safety and emissions:
  Australia/New Zealand: ACMA RCA Class A
  Canada: ICES Class A; cUL
  China: CCC Class A; NAL
  Europe: CE Class A
  Japan: VCCI Class A
  USA: FCC Class A; NRTL UL; FDA 21 CFR 1040.10 and 1040.11
  Eurasia Customs Union: EAC
  Germany: GS mark
  Product meets EMC and safety standards in many countries inclusive of USA, Canada, EU, Japan, China. For more country-specific regulatory information, and approvals, please see your Dell EMC representative.
• RoHS:
  Product meets RoHS compliance standards in many countries inclusive of USA, EU, China, and India. For more country-specific RoHS compliance information, please see your Dell EMC representative.
  EU WEEE
  EU Battery Directive
  REACH
