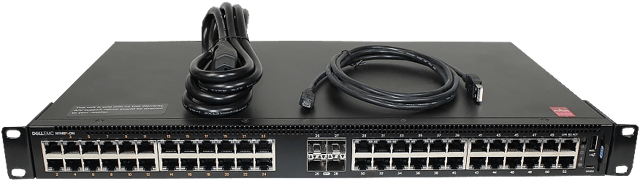

Dell Networking N1148P-ON Switch
Call for price and availability
- 100% Dell Original Components
- 14 Day Money Back Guarantee
- Dell Engineer Approved
- Ports:10/100/1000 Base-T
- Primary Port Quantity:48 ports
- Uplink Ports:1/10GbE SFP+
- Uplink Port Quantity:4 ports
- Hot-swappable AC Power Supply:Fixed, Internal Power Supply
- Networking Model:N1148P-ON
- Airflow:Standard Airflow
- Default Operation System:Dell OS6
- PoE:YES
- Power Supply:Internal
- Transceivers:Not included
SKU: >N1148P-ON
Resources
Tech Specs
-
Base:
N1100 Series
-
Port Configuration:
48x 10/100/1000Mbps half/full duplex RJ45 ports
4x SFP/SFP+ 1/10GbE ports
24x PoE/PoE+ ports
375W PoE power budget
1 RU switch form factor -
Power Cords:
C13 to NEMA 5-15, 3M
C13 to C14, 2M
C15 to NEMA 5-15, 2M (C15 for PoE N-Series only) -
Cables (Optional):
Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct
-
Transceiver Optics (Optional):
Transceiver, SFP, 1000BASE-T
Transceiver, SFP, 1000BASE-SX, 850nm wavelength, up to 550m reach
Transceiver, SFP, 1000BASE-LX, 1310nm wavelength, up to 10km reach
Transceiver, SFP, 1000BASE-ZX, 1550nm wavelength, up to 80km reach
Transceiver, SFP+, 10GbE, SR, 850nm wavelength, up to 300m reach
Transceiver, SFP+, 10GbE, LR, 1310nm wavelength, up to 10km reach
Transceiver, SFP+, 10GbE, ER, 1550nm wavelength, up to 40km reach -
Physical:
Size (H x W x D): 1.75 in x 17 in x 10 in
Approximate weight: 9.19lbs, 4.17kg
1 RU tray to accommodate two half rack width switches -
Environmental:
Power supply efficiency: 80% or better
Max. thermal output (BTU/hr): 1566.15
Power consumption max (watts): 459
Operating temperature: 32° to 113°F (0° to 45°C)
Storage temperature: –40° to 149°F
Operating humidity: 95% -
Chassis:
Integrated power supply: 500W AC
Redundant variable speed fans
Air flow: I/O to power supply -
Performance:
Switch fabric capacity: 176Gbps
Forwarding rate: 132Mpps
VLANs supported: 512
Packet buffer memory: 4MB
MAC addresses: 16K
