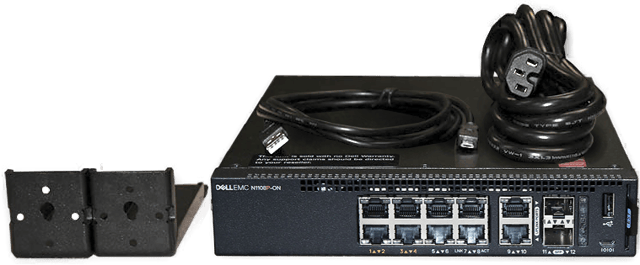

Dell Networking N1108P-ON Switch
- From: $349
- 100% Dell Original Components
- 14 Day Money Back Guarantee
- Dell Engineer Approved
- Ports:10/100/1000 Base-T
- Primary Port Quantity:8 ports
- Uplink Ports:1GbE SFP
- Uplink Port Quantity:2 ports
- Hot-swappable AC Power Supply:Fixed, Internal Power Supply
- Networking Model:N1108P-ON
- Default Operation System:Dell OS6
- PoE:YES
- Power Supply:Internal
- Transceivers:Not included
SKU: >N1108P-ON
Resources
Tech Specs
-
Base:
N1100 Series
-
Port Configuration:
8x 10/100/1000Mbps RJ45 ports
2x GbE RJ45 and 2x GbE SFP interfaces
4x PoE/PoE+, 75W PoE power budget
Fanless operation
1 RU half-width form factor -
Power Cords:
C13 to NEMA 5-15, 3M
C13 to C14, 2M
C15 to NEMA 5-15, 2M (C15 for PoE N-Series only) -
Cables (Optional):
Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct
-
Transceiver Optics (Optional):
Transceiver, SFP, 1000BASE-T
Transceiver, SFP, 1000BASE-SX, 850nm wavelength, up to 550m reach
Transceiver, SFP, 1000BASE-LX, 1310nm wavelength, up to 10km reach -
Physical:
Dimensions: 1.75 in x 8.5 in x 10 in
Weight: 4.43lbs, 2.01kg -
Environmental:
Operating temperature: 32° to 113°F (0° to 45°C)
Storage temperature: –40° to 149°F (–40° to 65°C)
Operating humidity: 95% -
Chassis:
Rack mounting kit with 2 mounting brackets, bolts, and cage nuts
1RU tray to accommodate two half rack width switches -
Performance:
Switch fabric capacity: 24Gbps
Forwarding rate: 18Mpps
MAC addresses: 16K
