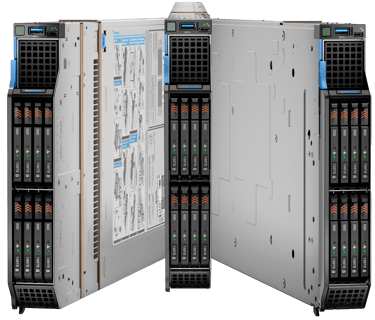

Dell PowerEdge MX760c Sled Server

Tech Specs

• Base:
  PowerEdge MX760c
• Processor:
  Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
  Intel C620 series chipset with optional Intel QuickAssist Technology
• Memory:
  32 DDR4 DIMM slots
• Persistent Memory:
  Supports up to 16 Intel Persistent Memory 200 series (BPS) slots with a maximum total capacity of 7.68 TB per sled
• Availability:
  Supports registered ECC DDR4 DIMMs only
• Controllers:
  Internal controllers: PERC H755 MX, PERC H745P MX, HBA350i MX, S150
  Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB or Internal Dual SD Module (IDSDM) or USB
  External PERC (RAID): PERC H745P MX
  External HBAs (non-RAID): HBA330 MMZ
• Drive Bays:
  Front bays:
  Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) 7.68 TB per drive
  Up to 6 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) 7.68 TB per drive

• Power Supplies:
  MX7000 chassis: Up to six 3000 W AC Platinum PSU and grid redundancy support
• Fans:
  MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy
• Dimensions:
  Height: 42.15 mm (1.65 inches)
  Width: 250.2 mm (9.85 inches)
  Depth: 594.99 mm (23.42 inches)
• Form Factor:
  Up to 8 independent hot-swappable, 1U single-width compute sled in a MX7000 chassis
• Embedded Management:
  MX7000 chassis: OpenManage Enterprise Modular Edition (OME-Modular);
  Up to 2 redundant MX9002m management modules
  Unified control: single management point for server, storage, and networking
  Intelligent automation: Operational template methodology and comprehensive RESTful API
  Quick Sync 2 Bluetooth Low Energy (BLE)/wireless module

  On compute sled: iDRAC9
  iDRAC Direct
  iDRAC Service Module
• OpenManage Software:
  CloudIQ for PowerEdge plug in
  OpenManage Enterprise
  OpenManage Enterprise Integration for VMware vCenter
  OpenManage Integration for Microsoft System Center
  OpenManage Integration with Windows Admin Center
  OpenManage Power Manager plugin
  OpenManage Service plugin
  OpenManage Update Manager plugin
• OpenManage Integrations:
  BMC Truesight
  Microsoft System Center
  OpenManage Integration with ServiceNow
  Red Hat Ansible Modules
  Terraform Providers
  VMware vCenter and vRealize Operations Manager
• Security:
  Cryptographically signed firmware
  Data at Rest Encryption (SEDs with local or external key mgmt)
  Secure Boot
  Secured Component Verification (Hardware integrity check)
  Secure Erase
  Silicon Root of Trust
  System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
• Ports:
  Front ports 1 x iDRAC Direct port (Micro-AB USB)
  1 x USB 3.0

  Internal port 1 x USB 3.0
• PCIe:
  One x16 PCIe Gen4 slot for PERC - connected to processor 1
  One x16 PCIe Gen4 slot for Mezz A - connected to processor 1
  One x16 PCIe Gen5 slot for Mezz B - connected to processor 2
  One x16 PCIe Gen4 slot for Mini Mezz - connected to processor 1
  Two x8 PCIe Gen5 (SL1, SL2) connectors for NVMe drive – connected to processor 1
  Two x8 PCIe Gen5 (SL4, SL5) connectors for NVMe drive – connected to processor 2
  One x4 PCIe Gen4 for BOSS-N1 HWRAID card
• Operating Systems and Hypervisors:
  Canonical Ubuntu Server LTS
  Microsoft Windows Server with Hyper-V
  Red Hat Enterprise Linux
  SUSE Linux Enterprise Server
  VMware vSAN/ESXi
