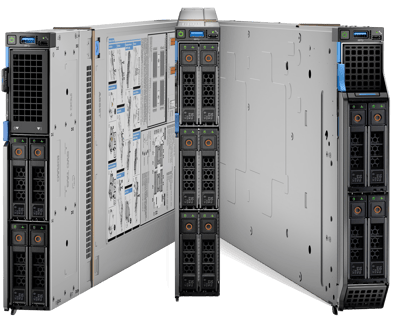

Dell PowerEdge MX750c Sled Server

Tech Specs

• Base:
  PowerEdge MX750c
• Processor:
  Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
  Intel C620 series chipset with optional Intel QuickAssist Technology
• Memory:
  32 DDR4 DIMM slots, supports RDIMM max 2 TB or LRDIMM max 4 TB, speeds up to 3200 MT/s
• Persistent Memory:
  Supports up to 16 Intel Persistent Memory 200 series (BPS) slots with a maximum total capacity of 7.68 TB per sled
• HDD/SDD Drive Bays:
  Up to 4 x 2.5-inch SAS/SATA/NVMe 7.68 TB/drive
  Up to 6 x 2.5-inch SAS/SATA/NVMe 7.68 TB/drive
• Embedded Management:
  MX7000 chassis: OpenManage Enterprise Modular Edition
  Up to 2 redundant MX9002m management modules
  Unified control: single management point for server, storage, and networking
  Intelligent automation: Operational template methodology and comprehensive RESTful API
  Quick Sync 2 Bluetooth Low Energy (BLE)/wireless module

  On compute sled:
  iDRAC9
  iDRAC Direct
  iDRAC Service Module
• Dimensions:
  Height: 42.15 mm (1.65 inches)
  Width: 250.2 mm (9.85 inches)
  Depth: 594.99 mm (23.42 inches)
• Availability:
  Supports registered ECC DDR4 DIMMs only
• Controllers:
  Internal controllers: PERC H755 MX, PERC H745P MX, HBA350i MX, S150
  Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB or Internal Dual SD Module (IDSDM) or USB
  External PERC (RAID): PERC H745P MX
  External HBAs (non-RAID): HBA330 MMZ
• Power Supplies:
  MX7000 chassis: Up to six 3000 W AC Platinum PSU and grid redundancy support
• Fans:
  MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy
• Form Factor:
  Up to 8 independent hot-swappable, 1U single-width compute sled in a MX7000 chassis
• OpenManage Software:
  OpenManage Enterprise
  OpenManage Power Manager plugin
  OpenManage SupportAssist plugin
  OpenManage Update Manager plugin
  OpenManage Enterprise Modular Edition
• OpenManage Integrations:
  BMC Truesight
  Microsoft System Center
  Red Hat Ansible Modules
  VMware vCenter and vRealize Operations Manager
• OpenManage Connections:
  IBM Tivoli Netcool/OMNIbus
  IBM Tivoli Network Manager IP Edition
  Micro Focus Operations Manager i
  Nagios Core
  Nagios XI
• Integrated Security:
  TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
  Digitally Signed Firmware
  Chassis Intrusion Alert
  Secure Boot
  Secure Erase
  Silicon Root of Trust
  System Lockdown (requires iDRAC Enterprise or Datacenter)
• Networking Options (NDC):
  MX7000 chassis Fabric options: up to 2 pairs redundant general purpose switch or passthrough modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C)
  Up to 25 Gb CNA/NIC per port for Mezz A/B, 32 Gb Fibre Channel, 12 Gbps SAS for Mezz C
• Ports:
  Front ports:
  1 x iDRAC Direct port (Micro-AB USB)
  1 x USB 3.0
  Internal port:
  1 x USB 3.0
• PCIe:
  1 x16 PCIe Gen4 slot for Mezz A – to processor 1
  1 x16 PCIe Gen4 slot for Mezz B – to processor 2
  1 x16 PCIe Gen4 slot for Mini Mezz card – to processor 2
  1 x16 PCIe Gen4 slot for PERC – to processor 1
  2 x8 PCIe Gen4 connectors for NVMe drive – to processor 1
  1 x8 PCIe Gen4 connectors for NVMe drive – to processor 2
  2 x4 PCIe Gen3 slot for BOSS M.2 HW RAID card – to Platform Controller Hub (PCH)
• Operating Systems & Hypervisors:
  Canonical Ubuntu Server LTS
  Citrix Hypervisor
  Microsoft Windows Server with Hyper-V
  Red Hat Enterprise Linux
  SUSE Linux Enterprise Server
  VMware ESXi/vSAN
